Description of NICE MoonKey MOSU – key switch prepared for a cylinder lock, surface-mounted
This switch has been replaced by NICE Era Key Switch EKSEU .
NICE MOSU is a mechanical key switch from the NICE MoonKey, which lets you control drives not only those made by NICE. The key switch is two-position, meaning the key can be turned either to the right or to the left. You can assign a different command to each position. The switch is spring-return, meaning that the spring returns it to its initial position.
Technical specifications of the NICE MOSU key switch
| Supplier code | MOSU |
|---|---|
| Lock type | two-position, spring-return lock |
| Cylinder type | without cylinder, prepared for a Euro-profile cylinder |
| Mounting type |
surface-mounted, ideally paired with a mounting plate MOA2 |
| Contacts |
two changeover microswitches, each switching either on (normally open) or off (normally closed) |
| Contact rating | Maximum 48 V, 2 A |
| Protection rating | IP43 |
| Lighting | No, but prepared for 12/24 V LED lighting MOSA1 |

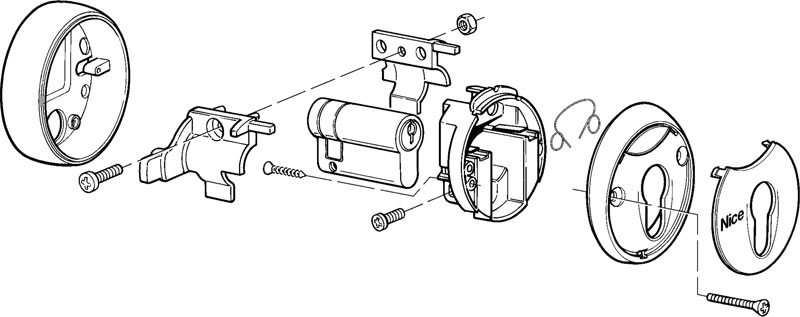

Surface mounting the NICE MoonKey MOSU key switch
Wiring the NICE MoonKey MOSA1 auxiliary light
Note: The wiring is the same for all key switches; the illustrations show NICE MoonKey MOSEU. The additional MOSA1 LED light is not included; it must be ordered separately.
|
|
|
|
|
1. Connect MOSA1 to the key switch |
2. Connect the power supply (the output is usually available at the control unit terminal block; an example output: Robus, Road). |
3. Done—the key switch is illuminated. Here is the MOSEU with mounting plate MOA2 and LED light MOSA1. |
Opening the NICE MoonKey MOSU key switch
| 1. Pry off the drive key switch cover | 2. Unscrew the screws securing the drive key switch | 3. Turn the key in the drive key switch and pull off the front section |
 |
 |
 |
Wiring the NICE MOSU key switch
Example wiring diagram for the NICE MoonKey MOSU key switch with NICE Robus (RB400, RB600, RB1000) and Run (RUN1800P) drives
Turning the key triggers:
Left: STOP
Right: Step-by-step operation
Example wiring diagram for the NICE MoonKey MOSU key switch with the NICE Road (RD400) drive
Turning the key triggers:
Left: STOP
Right: Step-by-step operation
Alternative key switches
| Mounting/Cylinder | Simple cylinder | Euro-profile cylinder | Without cylinder |
|---|---|---|---|
| Surface mounting |
|
|
MOSU (you are here) |
| Recessed mounting |
|
|
does not exist |
Accessories for the NICE MoonKey MOSU key switch
| MOSA1 | MOA2 | MOCA1 | MOCF2 | MOCS |
|---|---|---|---|---|
 |
 |
 |
 |
 |
|
LED lighting for key switch. |
Mounting plate for key switch. |
Extension for MOCF2 post. |
Post with two housings for photocells. A MOCA1 key switch holder can be fitted on top. |
Post for key switch. |
