NICE MoonKey MOSIU – key switch with European cylinder, recessed installation
| Product availability: | Unavailable | We’ll be happy to help you choose a replacement. Feel free to contact us. |
|---|
Description of NICE MoonKey MOSIU – key switch with European cylinder, recessed installation
This product has been replaced by the switch NICE Era Key Switch EKSIEU .
NICE MOSIU is a mechanical key switch from the NICE MoonKey, which lets you control the drives by switching electrical circuits on and off drives not only from the NICE. The key switch is two-position, meaning the key can be turned both right and left. You can assign a different command to each position. The switch is spring-return, meaning the spring returns it to its initial position.
Technical specifications of the NICE MOSIU key switch
| Supplier code | MOSIU |
|---|---|
| Lock type | two-position, spring-return lock |
| Cylinder type | cylinder lock |
| Mounting type | |
| Contacts |
two changeover microswitches, each of which can either close (normally open) or open (normally closed) |
| Contact rating | Maximum 48 V, 2 A |
| Protection rating | IP43 |
| Lighting | No, but pre-wired for 12/24 V LED lighting MOSA1 |

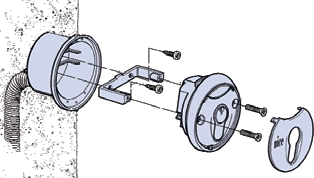

Recessed installation of the NICE MoonKey MOSIU key switch
Connecting the NICE MoonKey MOSA1 auxiliary light
Note: The wiring is the same for all key switches; the illustrations show NICE MoonKey MOSEU. The MOSA1 auxiliary LED light is not included and must be ordered separately.
|
|
|
|
|
1. Connect MOSA1 to the key switch |
2. Connect the power supply (the output is usually on the control unit terminal block; example output: Robus, Road). |
3. Done—the key switch is illuminated. Here it is MOSEU with mounting plate MOA2 and LED lighting MOSA1. |
Opening the NICE MoonKey MOSIU key switch
| 1. Pry off the drive key switch cover | 2. Unscrew the drive key switch screws | 3. Turn the key in the drive key switch and pull off the front section |
 |
 |
 |
Wiring the NICE MOSIU key switch
Example wiring diagram for the NICE MoonKey MOSIU key switch with NICE Robus (RB400, RB600, RB1000) and Run (RUN1800P) drives
Turning the key will:
Left: STOP
Right: Step-by-step
Example wiring diagram for the NICE MoonKey MOSIU key switch with the NICE Road drive (RD400)
Turning the key will:
Left: STOP
Right: Step-by-step
Alternative key switches
| Mounting/Cylinder | Simple cylinder | Cylinder lock | No cylinder |
|---|---|---|---|
| Surface mounting |
|
|
|
| Flush-mounted installation |
|
|
does not exist |
Accessories for the NICE MoonKey MOSIU key switch
| MOSA1 | MOA1 |
|---|---|
 |
 |
|
LED lighting for the key switch. |
Mounting box for key switch. Included with the key switch. |
