NICE MoonKey MOSEU – key switch with cylinder lock, surface-mounted
| Product availability: | to the question | The product may not be available, contact us for more information. |
|---|
Description of NICE MoonKey MOSEU – key switch with cylinder lock, surface-mounted
NICE MOSEU is a mechanical key switch from the NICE MoonKey, which lets you control operators not only from the NICE. The key switch is two-position, meaning the key can be turned either to the right or to the left. You can assign a different command to each position. The switch is spring-return, meaning the spring returns it to its starting position.
Technical specifications of the NICE MOSEU key switch
| Supplier code | MOSEU |
|---|---|
| Lock type | two-position spring-return lock |
| Cylinder type | cylinder lock |
| Mounting type |
surface-mounted, ideally used with a mounting plate MOA2 |
| Contacts |
two changeover microswitches, which either close (normally open) or open (normally closed) |
| Contact rating | Maximum 48 V, 2 A |
| Protection rating | IP43 |
| Illumination | No, but it is prepared for 12/24 V LED illumination MOSA1 |

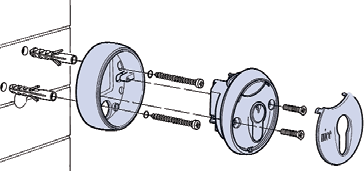

Surface mounting of the NICE MoonKey MOSEU key switch
Connecting the NICE MoonKey MOSA1 auxiliary light
Note: The wiring is the same for all key switches; the illustrative images show NICE MoonKey MOSEU. The MOSA1 auxiliary LED light is not included; you must order it separately.
|
|
|
|
|
1. Connect MOSA1 to the key switch |
2. Connect the power supply (normally, the output is on the control unit's terminal block; example output: Robus, Road). |
3. Done—the key switch is illuminated. Here is the MOSEU with mounting plate MOA2 and LED illumination MOSA1. |
Opening the NICE MoonKey MOSEU key switch
| 1. Pry off the operator key switch cover | 2. Unscrew the operator key switch screws | 3. Turn the key in the operator key switch and pull off the front section |
 |
 |
 |
Wiring the NICE MOSEU key switch
NICE MoonKey MOSEU key switch, inside view
Example wiring diagram for the NICE MoonKey MOSEU key switch with NICE Robus (RB400, RB600, RB1000) and Run (RUN1800P) operators
Turning the key activates:
Left: STOP
Right: Step-by-step operation
Example wiring diagram for the NICE MoonKey MOSEU key switch with the NICE Road (RD400) operator
Turning the key activates:
Left: STOP
Right: Step-by-step operation
Alternative key switches
| Mounting/Cylinder | Simple cylinder | Cylinder lock | Without cylinder |
|---|---|---|---|
| Surface mounting |
|
MOSEU (you are here) |
|
| Flush mounting |
|
|
does not exist |
Accessories for the NICE MoonKey MOSEU key switch
| MOSA1 | MOA2 | MOCA1 | MOCF2 | MOCS |
|---|---|---|---|---|
 |
 |
 |
 |
 |
|
LED lighting for key switch. |
Mounting plate for key switch. |
Extension for MOCF2 post. |
Post with two recesses for photocells. A MOCA1 key switch holder can be fitted on top. |
Post for key switch. |
