NICE HYPPO 7024 drive kit for a double-leaf gate – one leaf 3 m/350 kg, with accessories
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€1,786.26 including VAT
| Weight |
|---|
| 30 kg |
Description of NICE HYPPO 7024 drive kit for a double-leaf gate – one leaf 3 m/350 kg, with accessories
Drive kit NICE HYPPO 7024 is designed for automation of swing gates with a leaf length of 3 m and a weight of up to 500 kg. The operator is based on 24V. The operator is non-reversible. The HYPPO operators are currently the leading choice for automating swing gates in both residential and industrial settings. The entire HYPPO range is reliable and quiet.Download the manual ».
| The kit includes: | NICE-HYPPO7024-BE2 | |||
|---|---|---|---|---|
 |

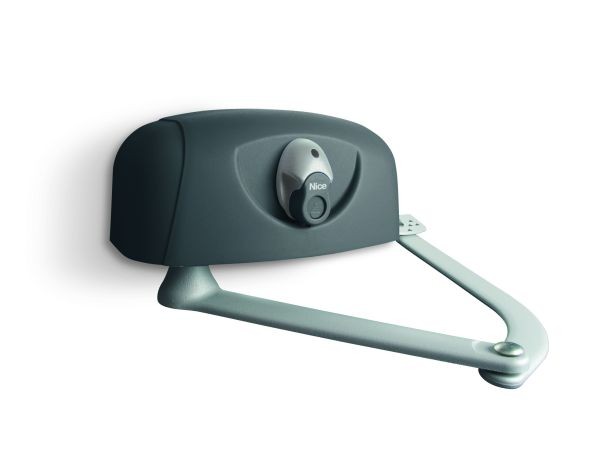

2 × | NICE HYPPO 7024 operator | NICE-HY7024 | |
|
NICE HYPPO 7024 electromechanical operator for swing gate leaves weighing up to 350 kg and measuring up to 3 m long. |
Details  |
|||
 |
1 × | NICE Moonclever MC824HR30 control unit | NICE-MC824HR30 | |
|
The control unit in the stylish Moonclever enclosure contains the MCA1R30 control board, to which the operators and accessories are connected, and is an essential part of the automation system. |
Details |
|||
 |

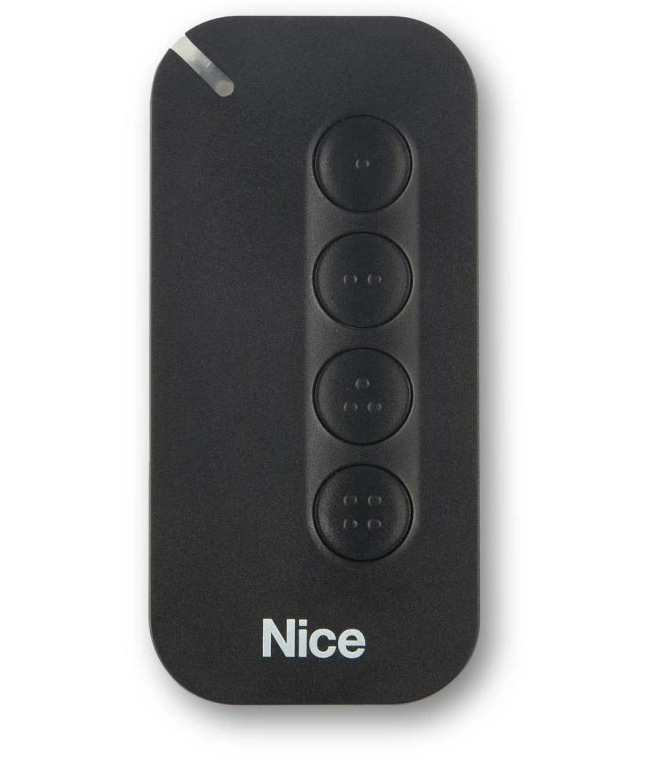

1 × | NICE MYGO4 remote control | NICE-MYGO4 | |
|
Four-channel NICE MYGO4 remote control with rolling code for automatic gate operation. |
Details |
|||
 |
1 × | Pair of NICE Era Photocell EPMB photocells | NICE-EPMB | |
|
Safety photocells are installed on either side of the opening. They emit an infrared beam which, when interrupted by a vehicle or pedestrian, for example, sends a signal to the operator to stop the gate or prevent it from opening. |
Details |
|||
 |
1 × | NICE ELDC LED warning light with antenna | NICE-ELDC | |
|
NICE LED flashing ELDC warning light made of impact-resistant polycarbonate, with a built-in antenna to extend the remote control range (up to 150 m). |
Details |
|||
 |
1 × | NICE OXIBD receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. |
Details |
|||
 |
2 × | Release key | ||
|
In the event of a power failure, it releases the operator so the gate can be moved manually by pushing or pulling. |
||||
 |
1 × | NICE HYPPO 7024 installation manual | ||
|
Installation manual with illustrative wiring diagrams and instructions for programming and pairing the remote controls. |
Download |
|||
| 1 × | Installation accessories | |||
|
Operator installation components, front and rear brackets for welding, |
||||

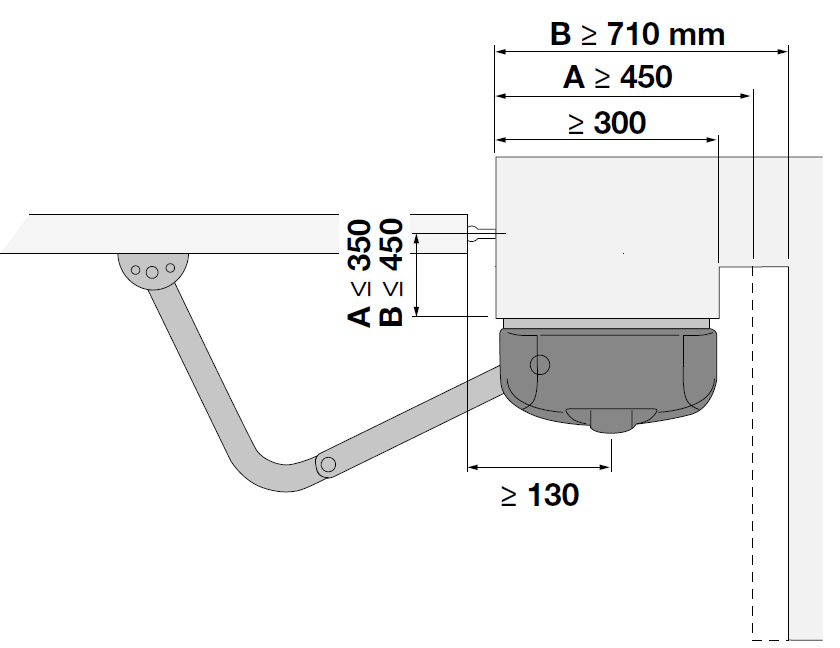

NICE-HYPPO usage limits

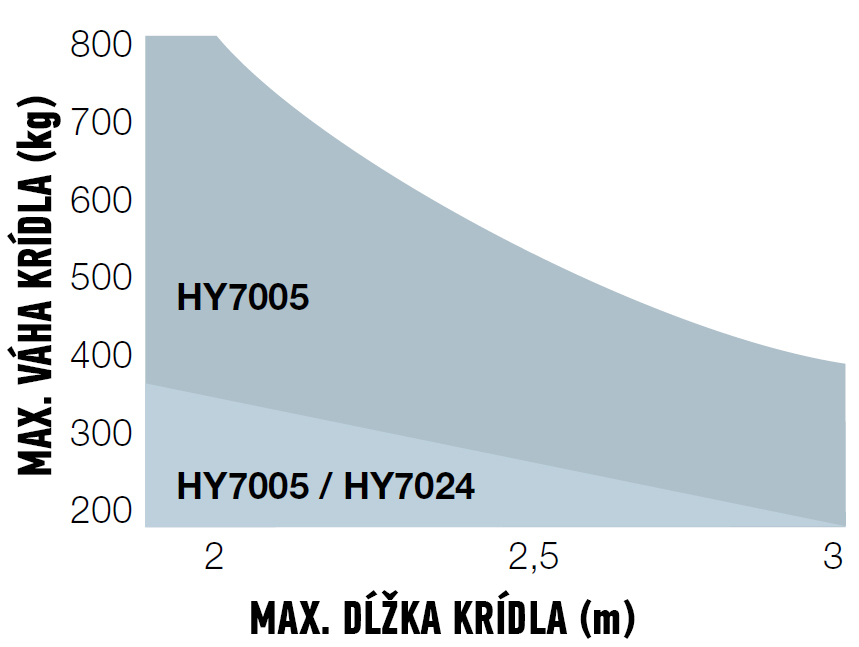

For a gate leaf weighing up to 350 kg and measuring up to 3 m long, according to the following usage chart:
TECHNICAL SPECIFICATIONS
| Power supply | 24V |
|---|---|
| MAX. Length of one gate leaf | 3m |
| MAX. Weight of one gate leaf | 350kg |
| Power | 120W |
| Opening time | 12s |
| Cycles/hour | 80 |
| Protection rating | IP43 |
| Operating temperature | -20°C to +70°C |
| Dimensions | 350x165x242 |
| Weight | 13kg |
* under optimal installation conditions
INSTALLATION MANUAL FOR THE NICE-HYPPO OPERATOR
INSTALLATION MANUAL FOR THE NICE-MC824H CONTROL UNIT
