Kit for building a cantilever sliding gate with a passage width of 4.5 m, with a galvanized C-profile
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€307.33 including VAT
| C-channel dimensions | Weight |
|---|---|
| 70x70x4 | 55 kg |
in stock
€342.09 including VAT
| C-channel dimensions | Weight |
|---|---|
| 80x80x5 | 78 kg |
Description of Kit for building a cantilever sliding gate with a passage width of 4.5 m, with a galvanized C-profile
Kit of components for building a cantilever sliding gate in the highest quality with highly reliable load-bearing bearings and a hot-dip galvanized C-profile.
Note: The KIT is better value than buying the components individually.. If you wish, we can customize the KIT contents and apply an appropriate discount. If you have a specific request or would like advice, contact us.
| The kit contains: | SADA-01-ZNK | SADA-02-ZNK | ||
|---|---|---|---|---|
 |

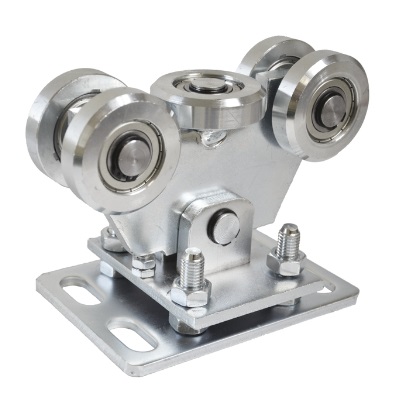

2 × | Five-bearing-roller trolley | V-02-4 | V-02-5 |
|
All-metal trolley for cantilever sliding gates for gates weighing up to 600 kg and with a clear opening width of up to 5 m. The trolley is supplied with a mounting plate included in the price. |
Detail  |
|||
 |
6 m | C-profile, hot-dip galvanized | CP-ZN-70-6 | CP-ZN-80-6 |
|
Thick-walled, hot-dip galvanized C-shaped guide profile welded to the underside of the gate, allowing it to travel on trolleys anchored in a concrete foundation. Surface finish – hot-dip galvanized |
CP-ZN-70 CP-ZN-80 |
|||
 |
1 × | Bottom guide roller | SN-1-70 | SN-1-80 |
|
The guide roller is mounted at the beginning of the C-profile and rolls into the bottom catch mounted on the closing post, relieving the gate when it is closed. |
|
|||
 |
1 × | Bottom catch | DK-1-70 | DK-1-80 |
|
The gate catch is mounted at the bottom of the closing post. It relieves the push and pull forces acting on the trolleys when the gate is closed. |
DK-1-70 DK-1-80 |
|||
 |
1 × | Metal C-profile end cap | SK-1-70 | SK-1-80 |
|
The end cap for the sliding gate's C-profile is fitted to the beginning and, if needed, the end of the guide C-profile. It slides into the C-profile and is secured to it with a pressure plate. |
|
|||
All metal components are protected against corrosion by galvanizing. Go to the KIT component descriptions.
Delivery KITS
All Sliding gate KITS are in stock. We will deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver when you receive the goods) or by bank transfer in advance. Another option is to collect the kit in person in Nové Mesto nad Váhom.
Ordering A KIT
You can order the KIT:
| 1. By email or phone, contact us. | |
|
2. Through the shopping cart:
|
Installing a sliding gate using KIT components
Your sliding gate kit comes with an installation drawing showing the recommended concrete foundation dimensions and sample dimensions for cantilever gates.
We would be happy to advise you on the contents of your kit or its installation. You can:
| Fill in the form | Call or write to us |
|---|---|
| Ask a sales representative for advice | Contact us. |
In photo gallery you'll find customer projects of sliding gates built using our components.
Extended warranty
All metal components in this KIT are covered by an extended 36-month warranty. The warranty covers not only metal components but also the bearing rollers in the carriages, which form the basis of the cantilever gate mechanism.
All automation electronics sold in our store are covered by the standard warranty of 24 months.
The invoice included with your delivery serves as the warranty certificate.
KIT description for building a cantilever sliding gate
Complete KIT for building a cantilever sliding gate for a passage width of up to 4.5 m and a maximum total cantilever gate weight of 600 kg cantilever gate. The complete kit with a 6-metre C-channel is available at a reduced price. On request, we can supply the C-channel cut to whole-metre lengths; it can also be joined to achieve a passage width greater than 4.5 m.
The KIT includes load-bearing carriages for cantilever gates with five rollers fitted with heavy-duty bearings. The carriages feature adjustment and pivoting, with adjustment used to fine-tune the gate's ground clearance and pivoting ensuring even loading of all bearings under both tension and compression. The carriages are supplied with mounting plates.
The kit also includes a bottom catcher and a gate-end roller, which reduce the load on the gate and also serve as stop and safety components.
The parts in this KIT are selected so that no additional components are needed for a manually operated gate (you can, however, add items to the kit, such as a hook lock or a top catcher). To automate the gate, you can also buy a gate opener and electronic accessories (remote controls, warning light, photocells).
The C-channel is welded to the bottom frame of the gate. We recommend using a minimum size of 80x40x2mm for the bottom frame tube, and 40x40, 60x40 or 80x40 for the other tubes, depending on the passage width, the total length of the gate leaf and the intended weight. We can advise you. The gate frame must be robust and stable. Once you have the gate frame, mount the carriages on a concrete foundation (use steel anchors, chemical anchors, or cast the carriages directly into the foundation using threaded rods). We will provide the dimensions of the concrete foundation, along with other recommended procedures, with the products. Alternatively, contact us, and we'll be happy to advise you.
For more detailed information about cantilever gates and the components used to assemble them, see the section Frequently encountered situations when building a sliding gate.
