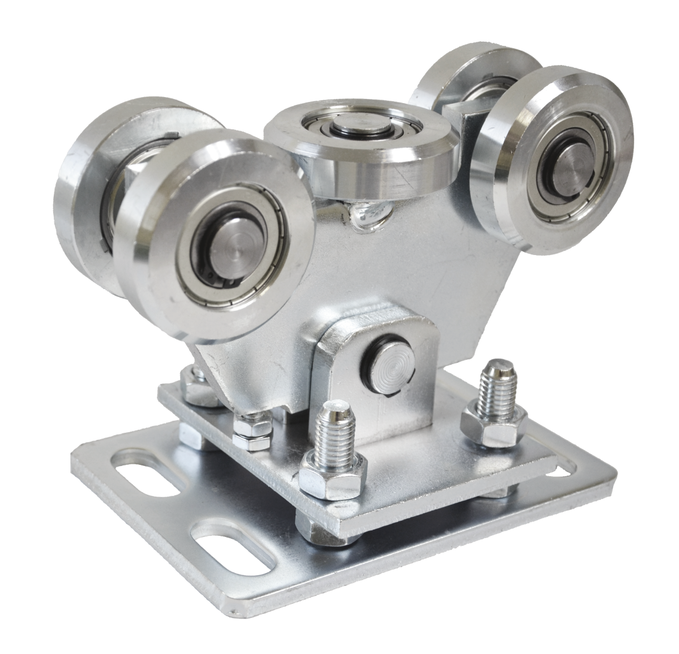

Fully metal adjustable swing trolley, 5 rollers with mounting plate
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€54.53 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 70 | 70 | 4 | 95 | 115 | 6,20 kg |
in stock
€54.53 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 80 | 80 | 5 | 90 | 110 | 6,20 kg |
Description of Fully metal adjustable swing trolley, 5 rollers with mounting plate
All-metal carriage for self-supporting sliding gates with a weight of up to 600 kg and a passage width of up to 5 m. The carriage is supplied with a mounting plate included in the price.
- Variant V-02-5 fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN
- Variant V-02-4 fits C-profile 70x70x4 mm FE and C-profile 70x70x4 mm ZN
The option to adjust the carriage allows you to fine-tune the gate’s inclination and ensure smooth operation (including in relation to the terrain or the slope of the driveway).
The carriage’s pivoting action ensures that the gate’s weight/pressure is evenly distributed across all the carriage’s bearing rollers at every point during gate movement. The carriage includes an M8 nut for adjusting the pivot.
All discounted kits for self-supporting gates.
Anchoring the support carriages for a self-supporting gate:
The support carriages can be anchored:
- to threaded rods that you cast directly into the foundation
- to threaded rods chemically bonded into a fully cured concrete foundation
- to hammer-in anchors into a fully cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 19mm, and they are anchored using an M18 thread. All methods are suitable; it depends on which one you have had the best experience with.

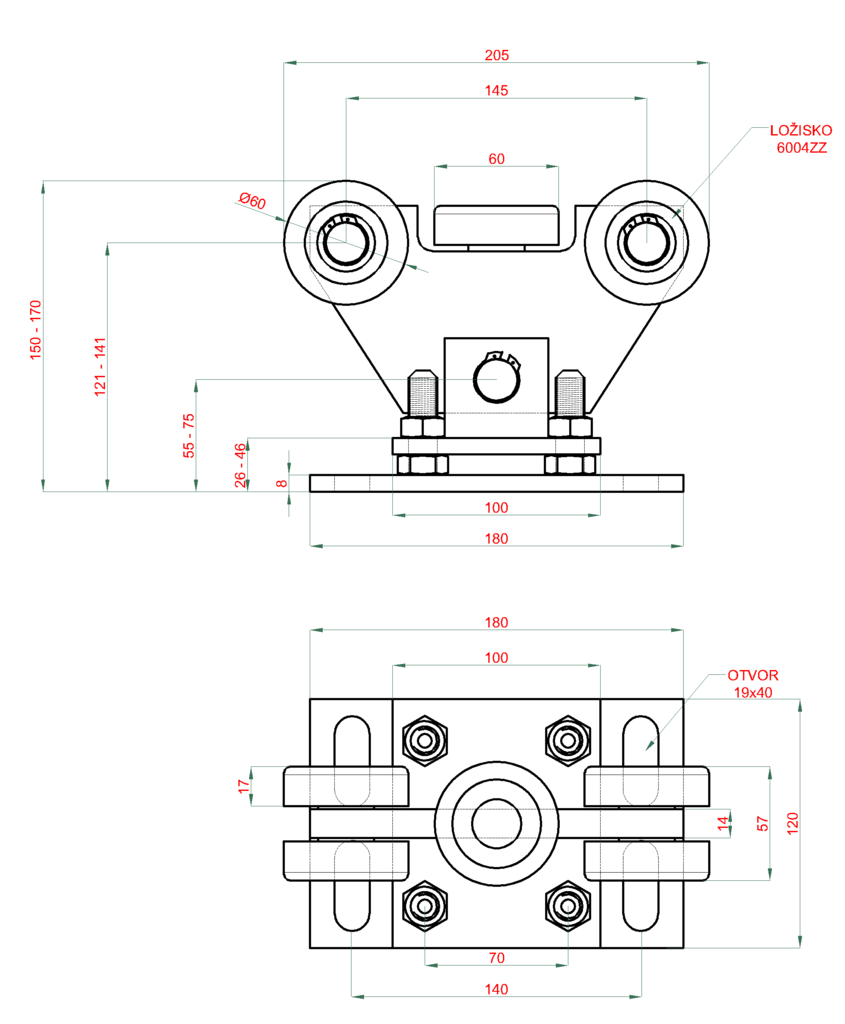

Drawing of the 70×70×4 carriage:

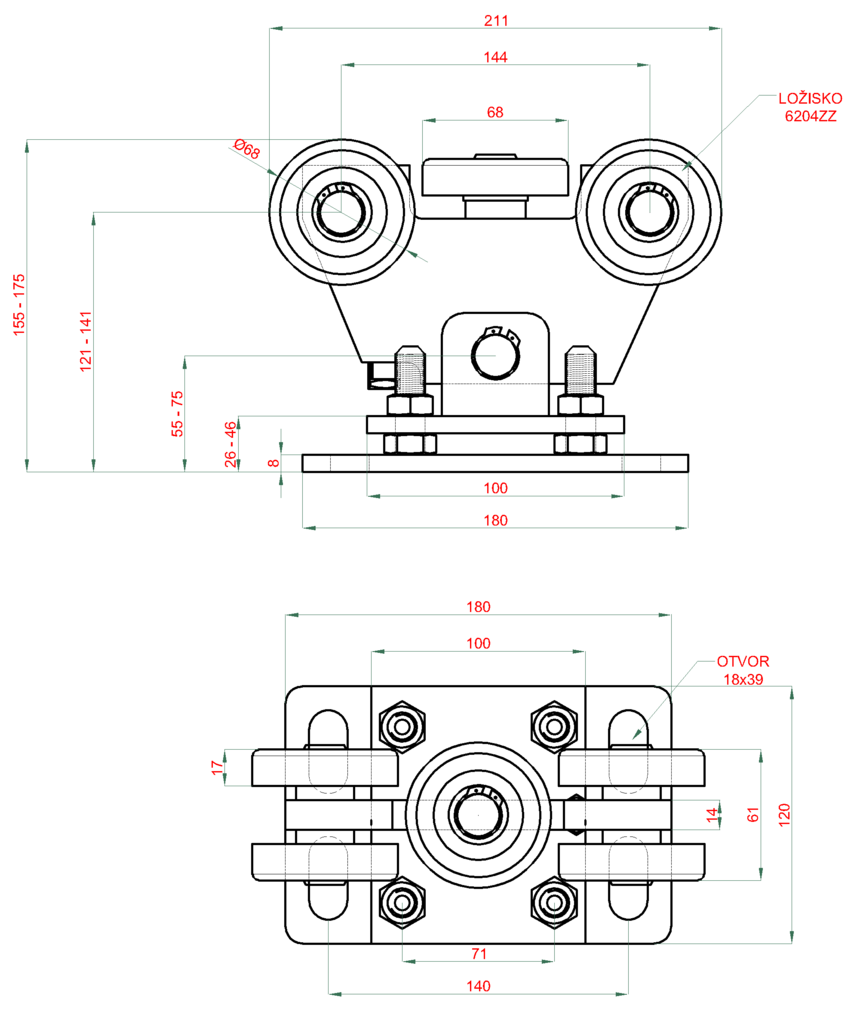

Drawing of the 80×80×5:
360°:
