Kit for building a cantilever sliding gate with a clear opening width of 3.5 m, with a galvanized C-profile
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Kit for building a cantilever sliding gate with a clear opening width of 3.5 m, with a galvanized C-profile | ||
| Roller type: |
You can choose the rollers nylon or metal. Nylon rollers allow the gate to carry a heavy load, prevent wear on the C-profile and ensure quiet gate operation. |
|
|---|---|---|
|
Nylon
rollers Metal
rollers |
||
| Guide type: |
Top guide Use it if the infill of your gate (e.g. wooden slats, Lexan, expanded metal) does not extend above the gate. Anchor it to the existing fence or to an adjustment post. |
|
|
Side
guide Top
guide |
||
€315.42 including VAT
| C-channel dimensions | Weight |
|---|---|
| 70x70x4 | 42 kg |
€358.00 including VAT
| C-channel dimensions | Weight |
|---|---|
| 80x80x5 | 67 kg |
Description of Kit for building a cantilever sliding gate with a clear opening width of 3.5 m, with a galvanized C-profile
Component kit for building a cantilever gate in the highest quality with highly reliable heavy-duty bearings and a hot-dip galvanized C-profile.
Note: The KIT is better value than buying the components individually.. On request, we can adjust the KIT contents and apply an appropriate discount. If you have a specific request or would like advice, contact us.
| The kit includes: | SADA-07-ZN | SADA-08-ZN | ||
|---|---|---|---|---|
 |
2 × | Five-bearing roller carriage | V-02-3 | V-02-1 |
|
You can choose nylon or metal rollers. Nylon rollers support heavy gate loads, prevent wear to the C-profile, and ensure quiet gate operation. Nylon and metal rollers are the same price |
Detail  |
|||
 |

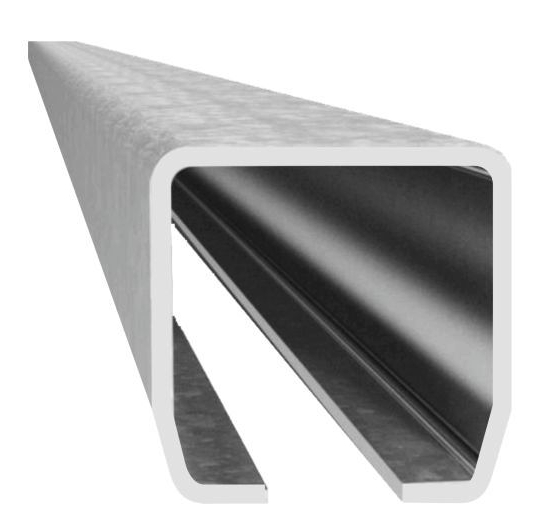

5 m | C-profile, hot-dip galvanized | CP-ZN-70-5 | CP-ZN-80-5 |
|
A heavy-wall, hot-dip galvanized C-shaped guide profile welded to the underside of the gate. The gate runs along it on carriages anchored in a concrete foundation. Surface finish – hot-dip galvanizing |
CP-ZN-70 CP-ZN-80 |
|||
 |
1 × | End stop roller | SN-1-70 | SN-1-80 |
|
The end stop roller is fitted to the beginning of the C-profile and rolls into the lower catch mounted on the gate post, relieving the gate when it closes. |
|
|||
 |
1 × | Lower catch | DK-1-70 | DK-1-80 |
|
The catcher is fitted to the bottom of the gate post. It relieves the carriages of compressive and tensile forces when the gate is closed. |
DK-1-70 DK-1-80 |
|||
 |
1 × | Gate guide | ||
|
Gate guide for vertical stabilization of the gate in the transverse direction. Choose a top (1 × VVR-3-G) or side guide (2 × BR-43G). |
Side Top |
|||
 |
1 × | Metal C-profile end cap | SK-1-70 | SK-1-80 |
|
The end cap for the sliding gate C-profile is fitted at the beginning and, if required, at the end of the guide profile. It slides into the C-profile and is secured to it with a clamping plate. |
|
|||
All metal components are protected against corrosion by galvanizing. Go to the KIT component descriptions.
Delivery KITS
All Sliding gate KITS are in stock. We will deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver when you receive the goods) or by bank transfer in advance. Alternatively, you can collect the kit in person in Nové Mesto nad Váhom.
Ordering THE KIT
You can order the KIT:
| 1. By email or phone, contact us. | |
|
2. Via the shopping cart:
|
Sliding gate installation using KIT components
Your sliding gate kit will come with an installation drawing showing the recommended concrete foundation dimensions and example dimensions for cantilever gates.
We would be happy to advise you on the components for your kit or on installation. You can:
| Fill in the form | Call or write to us |
|---|---|
| Ask a salesperson for advice | Contact us. |
In our photo gallery you will find customer projects featuring sliding gates built using our components.
Extended warranty
All metal components in this KIT are covered by our 36-month extended warranty. The warranty covers not only metal components but also nylon parts and, in particular, bearing rollers carriages, which form the basis of the cantilever gate mechanism.
All automation electronics in our shop are covered by the standard warranty of 24 months.
The invoice included with your delivery serves as the warranty certificate.
Component overview KITS for building a cantilever sliding gate
The KIT includes load-bearing carriages for cantilever gates with five rollers fitted with heavy-duty bearings. The carriages feature adjustment and pivoting, with adjustment used to fine-tune the gate's clearance from the ground, while the pivoting action distributes the load evenly across all bearings under both tensile and compressive forces. The carriages are supplied with mounting plates.
The kit also includes bottom stop and pickup roller, which reduce the load on the gate and also serve as stops and safety features.
The parts in this KIT are selected so you don't need to buy any additional components for a manually operated gate (you can, however, add to the kit, for example, a hook lock or top stop). To automate your gate, you can also buy gate operator and electronic accessories (remote controls, flashing light, photocells).
C-profile is welded to the bottom gate frame. We recommend using a minimum size of 80x40x2mm for the bottom frame section; use 40x40, 60x40 or 80x40 sections for the rest, depending on the opening width, the overall gate leaf length and the intended weight. We can advise you. The gate frame must be robust and stable. Once you have the gate frame, mount the carriages on the concrete foundation (use steel anchors, chemical anchors, or cast the carriages directly into the foundation using threaded rods). We will send you the concrete foundation dimensions and other recommended instructions along with the products. Alternatively, contact us, and we'll be happy to advise you.
For more detailed information about cantilever gates and the components used to assemble them, see the Common challenges when building a sliding gate.
