Kit for building a cantilever sliding gate for an opening up to 3.5 m wide, with a C-profile
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Kit for building a cantilever sliding gate for an opening up to 3.5 m wide, with a C-profile | ||
| Guide type: |
Top guide Use it if the infill of your gate (e.g. wooden slats, Lexan, expanded metal) does not extend above the gate. Anchor it to the existing fence or to an adjustment post. |
|
|---|---|---|
|
Side
guide Top
guide |
||
€221.83 including VAT
| Weight |
|---|
| 40 kg |
Description of Kit for building a cantilever sliding gate for an opening up to 3.5 m wide, with a C-profile
Component kit for building a cantilever gate in the highest quality with highly reliable load-bearing rollers and a C-profile.
Note: The KIT is is offered at a discount compared with buying the components individually. We can adjust the contents of the KIT on request and apply an appropriate discount. If you have a specific request or would like some advice, contact us.
| The kit contains: | SADA-07-ZN | |||
|---|---|---|---|---|
 |
2 × | Five-bearing-roller carriage | V-02-12 | |
|
Choose nylon or metal rollers. Nylon rollers support heavy gates, prevent wear to the C-profile and ensure quiet gate operation. Nylon and metal rollers cost the same. |
Detail  |
|||
 |

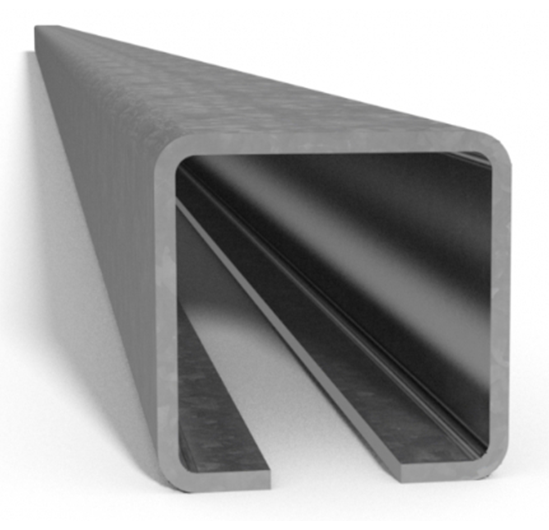

5 m | C-profile, unfinished | CP-60-5 | |
|
A heavy-wall C-shaped guide profile welded to the underside of the gate, allowing it to run on carriages anchored in a concrete foundation. Uncoated, untreated steel. |
CP-60 | |||
 |
1 × | End roller | SN-1-60 | |
|
The end roller is fitted at the beginning of the C-profile and engages with the bottom catcher mounted on the gate post, relieving the gate when closed. |
||||
 |
1 × | Bottom catcher | DK-1-60 | |
|
Bottom catcher mounted at the base of the gate post. It relieves the carriages of compressive and tensile forces when the gate is closed. |
DK-1-60 |
|||
 |
1 × | Gate guide | ||
|
Guide for vertical stabilization of the gate in the transverse direction. You can choose a top guide (1 × VVR-3-G), or a side guide (2 × BR-43G). |
Side-mounted Top-mounted |
|||
 |
1 × | Metal C-profile cap | SK-1-60 | |
|
The cap for the sliding gate's C-profile is fitted at the beginning and, if required, at the end of the guide profile. It slides into the C-profile and is secured to it with a clamping plate. |
||||
All metal components except the C-profile are zinc-plated for surface protection. Go to the KIT component descriptions.
Delivery KITS
All Sliding gate KITS are in stock. We deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver when the goods are delivered) or by bank transfer in advance. You can also collect the kit in person in Nové Mesto nad Váhom.
Ordering THE KIT
You can order the KIT:
| 1. By email or phone, contact us. | |
|
2. Through the shopping cart:
|
Sliding gate installation using KIT components
Your sliding gate kit will come with an installation drawing showing the recommended dimensions for the concrete foundation and example dimensions for cantilever gates.
We'd be happy to advise you on the contents of your kit or on installation. You can:
| Fill in the form | Call or write to us |
|---|---|
| Ask a sales assistant for advice | Contact us. |
In the photo gallery you will find customer projects sliding gates built using our components.
Extended warranty
All metal components in this KIT are covered by a 36-month extended warranty. The warranty covers not only metal components but also nylon parts and, in particular, bearing rollers carriages, which form the basis of a cantilever gate mechanism.
All automation electronics in our store are covered by the standard warranty of 24 months.
The invoice included with your delivery serves as the warranty certificate.
Component description KITS for building a cantilever sliding gate
The KIT includes load-bearing carriages for cantilever gates with five rollers fitted with heavy-duty bearings. The carriages offer adjustability and pivoting, with adjustment used to fine-tune the gate's clearance from the ground, while the pivoting ensures that all bearings are evenly loaded under both tension and compression. The carriages are supplied with mounting plates.
The kit also includes bottom stop and catch roller, which reduce the load on the gate and also serve as stops and safety features.
The parts in this KIT are selected so that no additional components are needed for a manually operated gate (you can, however, add to the kit, for example, a hook lock or top stop). To automate your gate, you can also buy gate operator and electronic accessories (remote controls, flashing light, photocells).
C-channel is welded to the bottom gate frame. We recommend using a minimum size of 80x40x2mm for the bottom gate frame section; use 40x40, 60x40 or 80x40 for the remaining sections, depending on the opening width, total gate leaf length and intended weight—we can advise you. The gate frame must be robust and stable. Once you have the gate frame, mount the carriages on a concrete foundation (use steel anchors, chemical anchors, or cast the carriages directly into the foundation using threaded rods). We will provide the dimensions of the concrete foundation, together with other recommended installation instructions, along with the products. Alternatively, contact us, and we’ll be happy to advise you.
More detailed information about cantilever gates and the components used to assemble them can be found in the Common issues when building a sliding gate.
