Kit for building a cantilever sliding gate for an opening up to 3.5 m wide
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Kit for building a cantilever sliding gate for an opening up to 3.5 m wide | ||
| Roller type: |
You can choose the rollers nylon or metal. Nylon rollers allow the gate to carry a heavy load, prevent wear on the C-profile and ensure quiet gate operation. |
|
|---|---|---|
|
Nylon
rollers Metal
rollers |
||
| Guide type: |
Top guide Use it if the infill of your gate (e.g. wooden slats, Lexan, expanded metal) does not extend above the gate. Anchor it to the existing fence or to an adjustment post. |
|
|
Side
guide Top
guide |
||
€271.13 including VAT
| C-channel dimensions | Weight |
|---|---|
| 70×70×4 | 48 kg |
€310.64 including VAT
| C-channel dimensions | Weight |
|---|---|
| 80×80×5 | 65 kg |
Description of Kit for building a cantilever sliding gate for an opening up to 3.5 m wide
Component kit for building a cantilever sliding gate in the highest quality with highly reliable heavy-duty bearings.
Note: The KIT is more cost-effective than buying the components individually and offers better value. We can customize the KIT contents on request and apply an appropriate discount. If you have a specific request or would like some advice, contact us.
| The kit includes: | SADA-07 | SADA-08 | ||
|---|---|---|---|---|
 |
2 × | Five-bearing-roller carriage | V-02-3 | V-02-1 |
|
Choose nylon or metal rollers. Nylon rollers support heavy gates, prevent wear on the C-section track and ensure quiet gate operation. Nylon and metal rollers are the same price. |
Detail  |
|||
 |
5 m | C-section track, unfinished | CP-70-5 | CP-80-5 |
|
A thick-walled C-shaped guide track welded to the underside of the gate, which allows the gate to roll along carriages anchored in a concrete foundation. Unfinished, uncoated steel. |
CP-70 CP-80 |
|||
 |
1 × | Bottom guide roller | SN-1-70 | SN-1-80 |
|
The guide roller is fitted at the start of the C-section track and rolls into the bottom catch mounted on the gate post, relieving the gate when it is closed. |
|
|||
 |
1 × | Bottom catch | DK-1-70 | DK-1-80 |
|
The catch is mounted at the bottom of the gate post. It relieves the compressive and tensile forces acting on the carriages when the gate is closed. |
DK-1-70 DK-1-80 |
|||
 |
1 × | Gate guide | ||
|
The gate guide provides vertical stabilization in the transverse direction. Choose either a top guide (1 × VVR-3-G) or side guide (2 × BR-43G). |
Side-mounted Top-mounted |
|||
 |

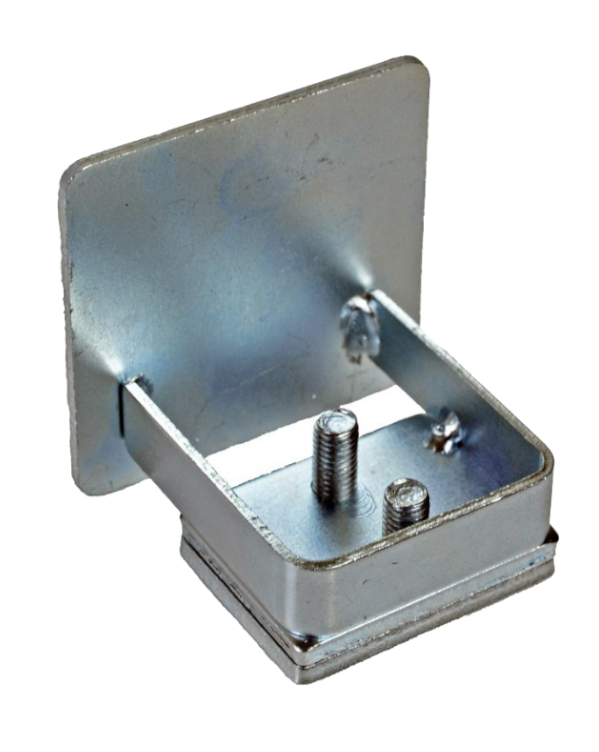

1 × | Metal C-section end cap | SK-1-70 | SK-1-80 |
|
The end cap for the sliding gate's C-section track is fitted at the beginning and, if required, at the end of the track. It slides into the C-section track and is secured with a clamping plate. |
|
|||
All metal components, except for the C-section track, are zinc-coated for surface protection. Go to the KIT component descriptions.
Delivery KITS
All sliding gate KITS are in stock. We will deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver when you receive the goods) or by bank transfer in advance. Alternatively, you can collect the kit in person in Nové Mesto nad Váhom.
Ordering the KIT
You can order the KIT:
| 1. By email or phone, contact us. | |
|
2. Through the shopping cart:
|
Installing a sliding gate using KIT components
Your sliding gate kit comes with an installation drawing showing the recommended concrete foundation dimensions and example dimensions for cantilever gates.
We’d be happy to advise you on the contents of your kit or on installation. You can:
| Fill in the form | Call or write to us |
|---|---|
| Ask a sales representative for advice | Contact us. |
In the photo gallery you’ll find customer installations of sliding gates built using our components.
Extended warranty
All metal components in this KIT are covered by the 36-month extended warranty. The warranty covers not only metal components but also nylon parts and, in particular, bearing rollers roller carriages, which form the basis of a cantilever gate mechanism.
All automation electronics in our store are covered by the standard 24-month warranty.
The invoice supplied with your delivered goods serves as your warranty certificate.
Component descriptions KITS for building a cantilever sliding gate
Complete KIT for building a cantilever sliding gate for a clear opening width of up to 3.5 m and a maximum total gate weight of 400 kg cantilever gate. The complete kit, including a 5-metre C-profile C-profile, is offered at a discounted price.
THE KIT INCLUDES load-bearing roller carriages for cantilever gates with five rollers fitted with heavy-duty bearings. The carriages feature adjustment and pivoting, with adjustment used to fine-tune the gate’s clearance from the ground and pivoting ensuring an even load on all bearings under both tension and compression. The carriages are supplied with mounting plates.
The kit also includes a lower stop and a guide roller, which reduce the load on the gate and also serve as stop and safety components.
The parts in this KIT are selected so you don’t need to buy any additional components for a manually operated gate (you can, however, add to the kit—for example, with a hook lock or top stop). To automate your gate, you can also buy a gate operator and electronic accessories (remote controls, flashing light, photocells).
C-profile is welded to the bottom rail of the gate frame. We recommend using a minimum of 80x40x2mm for the bottom rail of the gate frame. For the other frame sections, use 40x40, 60x40 or 80x40, depending on the clear opening width, the overall gate leaf length and the intended weight—we’ll be happy to advise you. The gate frame must be strong and stable. Once you have the gate frame, install the roller carriages on the concrete foundation (use steel anchors, chemical anchors, or cast the carriages directly into the foundation using threaded rods). We’ll send you the concrete foundation dimensions and other recommended instructions along with the products. Alternatively, contactus and we’ll be happy to advise you.
For more detailed information about cantilever gates and the components used to build them, see the Common situations when building a sliding gate.
