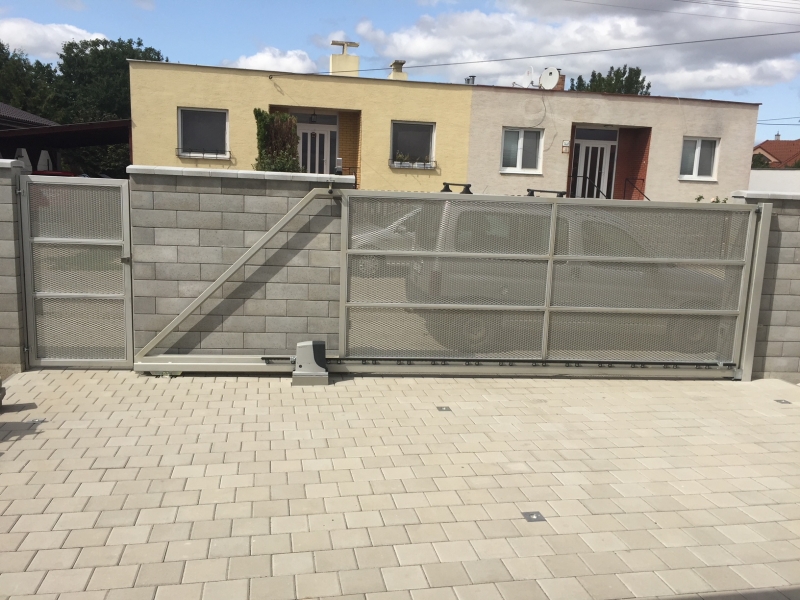

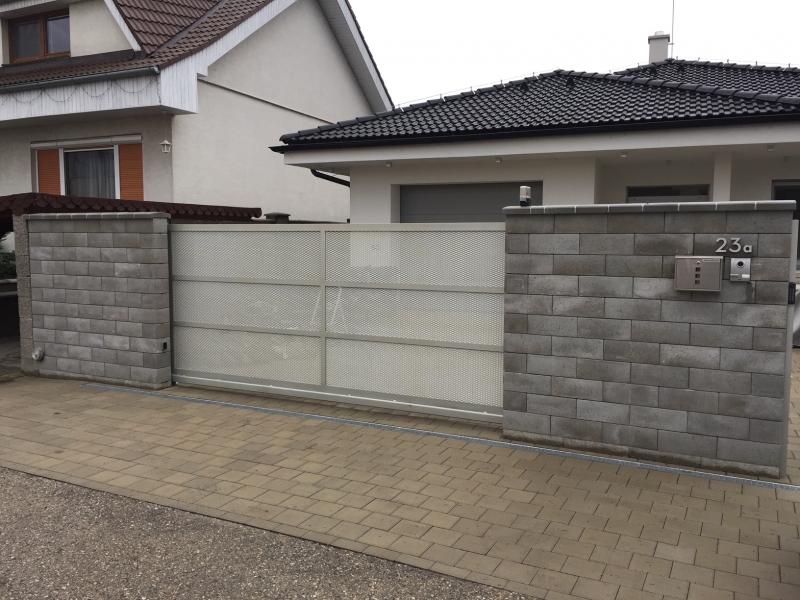

DIY sliding gate installation - Bernolákovo
Gate components used:

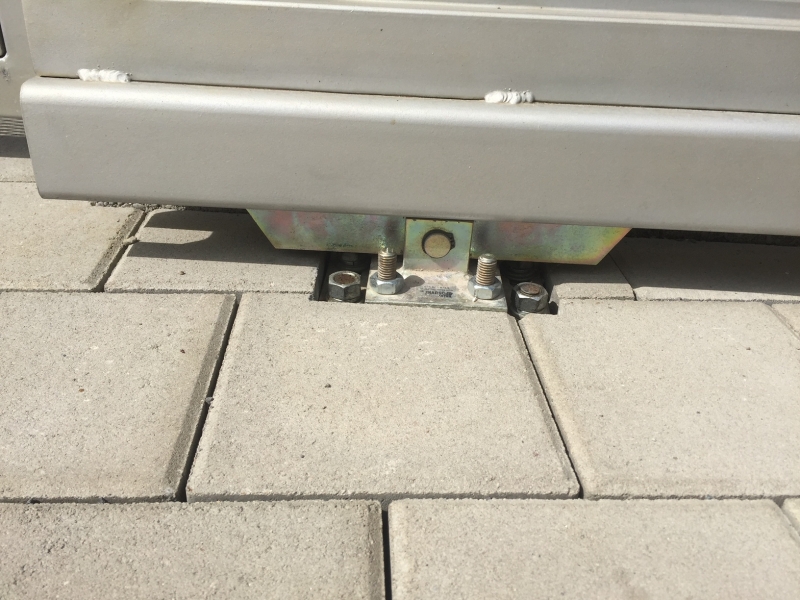

V-07-1 (2x) 8-roller carriage for 80x80x5 C-profile, nylon rollers
CP-80 (6m) Unfinished 80x80x5 mm C-profile, Fe
SN-1-80 Bottom guide ramp for 80x80x5 mm C-profile
DK-1-80 Bottom stop/catch pocket for 70x70x4 and 80x80x5 C-profiles
VVR-3-G Top guide with two adjustable rollers
ZC-19 Black 80x80 mm square end cap

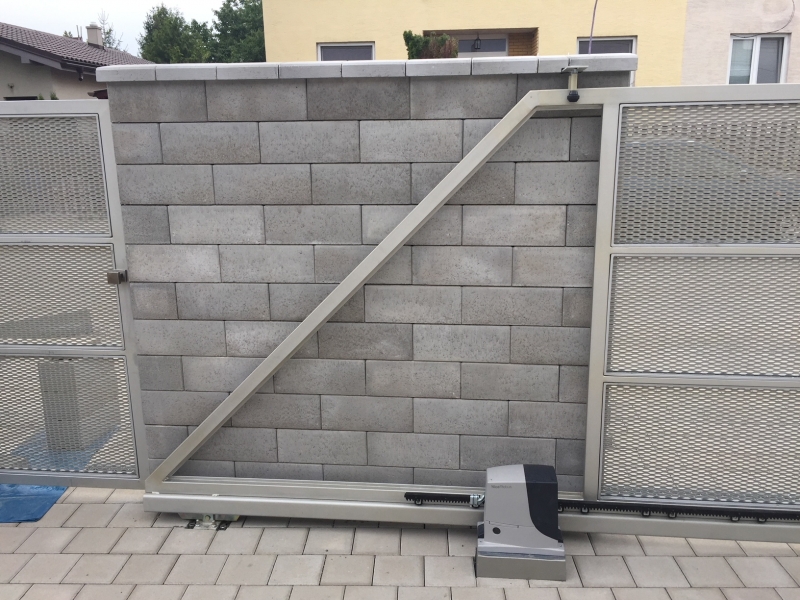

NICE-RB400-D NICE Robus sliding gate operator kit, up to 400 kg
LZ-1-1 (4,33 m) Nylon toothed rack with metal core
NICE-ON2E NICE ERA ONE-ON2E – 2-channel transmitter
UB-1-40G Top gate stop with rollers for 40 mm-wide profile
P376-16 (4 pcs) Adjustable M16 weld-on hinge, locknut and sleeve
P379-20 (2 pcs) Adjustable weld-on hinge with locknut and long thread
P375-16 (2 pcs) Adjustable M16 hinge with round base and locknut

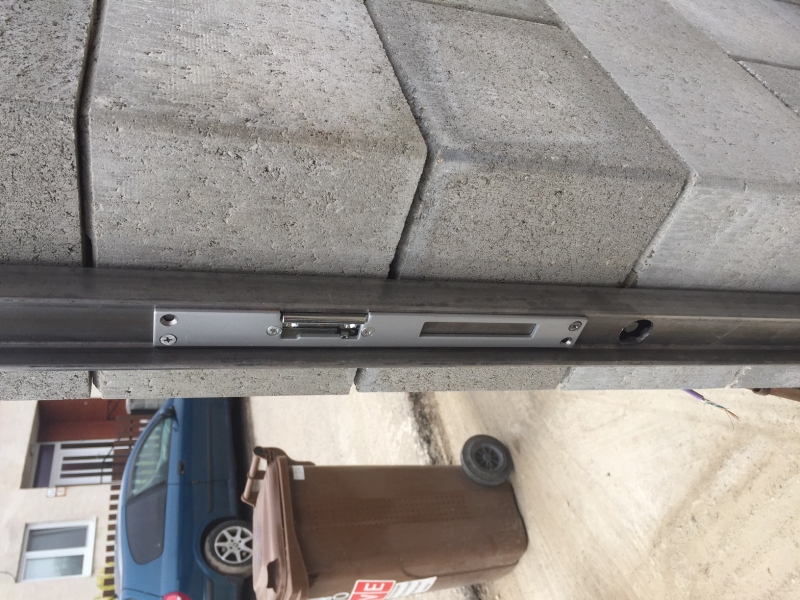

ZE-01 Electric lock, 8–12 V AC/DC
ZZ-06 Gate lock, 50 mm backset, 90 mm centres, nickel-plated faceplate
JOKL-70x34x55x2 (24 m) Closed L-shaped box profile 70x34x55x2
JOKL-T-55x34x25x2 (12 m) Closed T-shaped box profile 55x34x25x2
JOKL-40x34x25x2 (6m) Closed L-shaped box profile 40x34x25x2
