Adjustable weld-on hinge with sleeve

Zn Iron

Product availability:	In stock	We normally dispatch goods within 24 hours.

P376-16
in stock

€5.51 excluding VAT
€6.78 including VAT

M [thread]	A [mm]	B [mm]	C [mm]	Ød [mm]	ØE [mm]	L [mm]	R [mm]	t [mm]	Weight
M16	27	35,5	21	12	21	84	52–66	5	0,29 kg

P376-18
in stock

€6.04 excluding VAT
€7.44 including VAT

M [thread]	A [mm]	B [mm]	C [mm]	Ød [mm]	ØE [mm]	L [mm]	R [mm]	t [mm]	Weight
M18	30	40,5	21	12	25	92	56–65	5	0,43 kg

P376-20
in stock

€6.79 excluding VAT
€8.35 including VAT

M [thread]	A [mm]	B [mm]	C [mm]	Ød [mm]	ØE [mm]	L [mm]	R [mm]	t [mm]	Weight
M20	30	41	21	14	25	93	57–81	6	0,48 kg

P376-24
in stock

€9.15 excluding VAT
€11.26 including VAT

M [thread]	A [mm]	B [mm]	C [mm]	Ød [mm]	ØE [mm]	L [mm]	R [mm]	t [mm]	Weight
M24	35	47,5	25	17	30	107	67–81	6	0,71 kg

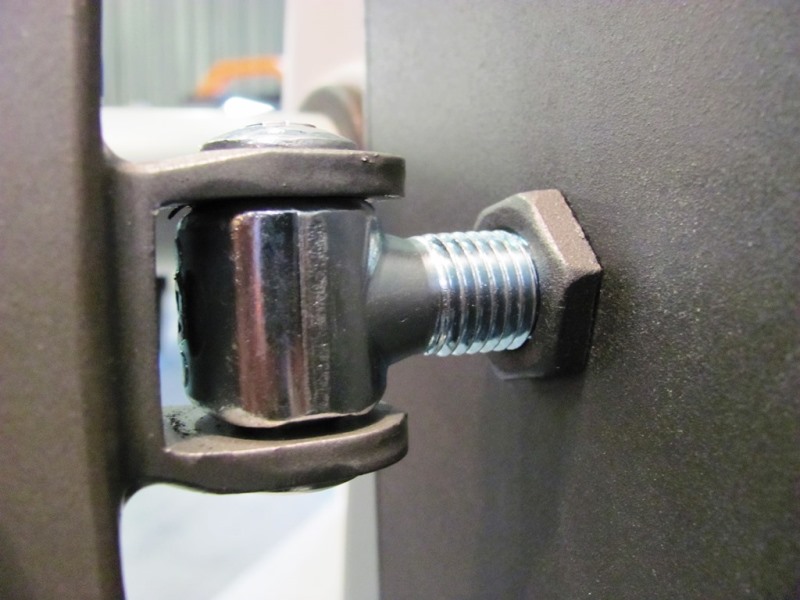

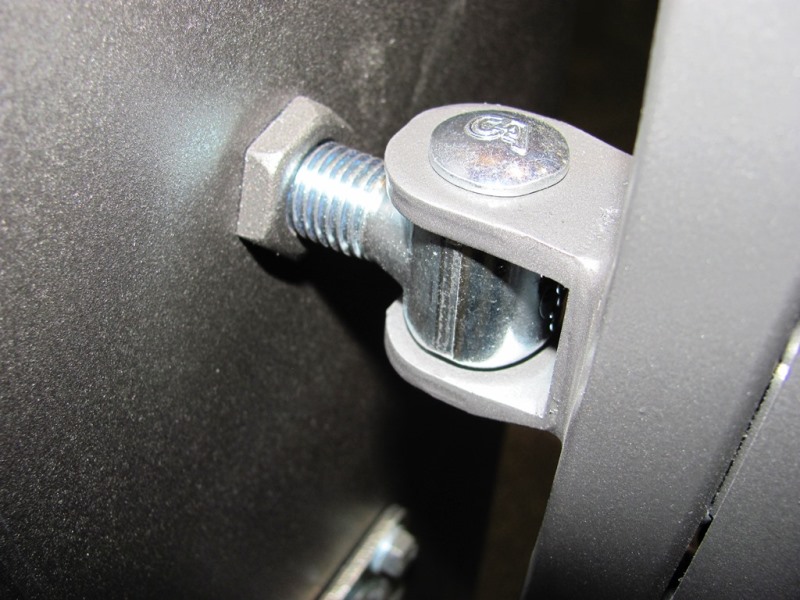

Description of Adjustable weld-on hinge with sleeve

Adjustable weld-on hinge with sleeve. The head and sleeve are made of raw iron; the body is galvanized. Sizes M16, M18, M20, M24.
