Adjustable swing trolley with 8 nylon rollers and mounting plate
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€108.76 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 80 | 80 | 5 | 85 | 105 | 8,30 kg |
In stock
€96.28 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 70 | 70 | 4 | 90 | 110 | 8,30 kg |
Description of Adjustable swing trolley with 8 nylon rollers and mounting plate
Adjustable swing carriage for sliding gates. Suitable for gates with a clear opening width of 5 m to 7.5 m. It can also be used for gates with a clear opening width of up to 5 m that weigh more than 600 kg. The carriage is supplied with a mounting plate included in the price.
- Variant V-07-1 fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN as well as C-profile 76x76x3 mm INOX
- Variant V-07-3 fits C-profile 70x70x4 mm FE and C-profile 70x70x4 mm ZN as well as C-profile 83x79x11 mm AL
The option to adjust the carriage allows you to fine-tune the gate's slope and ensure smooth operation (also in relation to the terrain or the slope across the entrance).
The carriage's pivoting action ensures that the gate's weight/pressure is distributed evenly across all the bearing rollers on the carriages at every point during gate movement.
Option to buy carriages at a discounted Kit of components for building a self-supporting gate or Kit of components with a NICE drive.All discounted kits for self-supporting gates.
Carriage mounting plate dimensions:
| A[mm] | B[mm] | C[mm] | D[mm] | Overall carriage length, including bearings[mm] |
|---|---|---|---|---|
| 180 | 120 | 72 | 140 | 375 |
 |
||||
Anchoring the support carriages for a self-supporting gate:
The support carriages can be anchored:
- to threaded rods that you cast directly into the foundation
- to threaded rods chemically bonded into an existing, cured concrete foundation
- to hammer-in anchors in an existing, cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 17mm, they are anchored with a thread M16. All methods are suitable; it depends on which one you have more experience with.
Drawing of the 80×80×5 carriage:

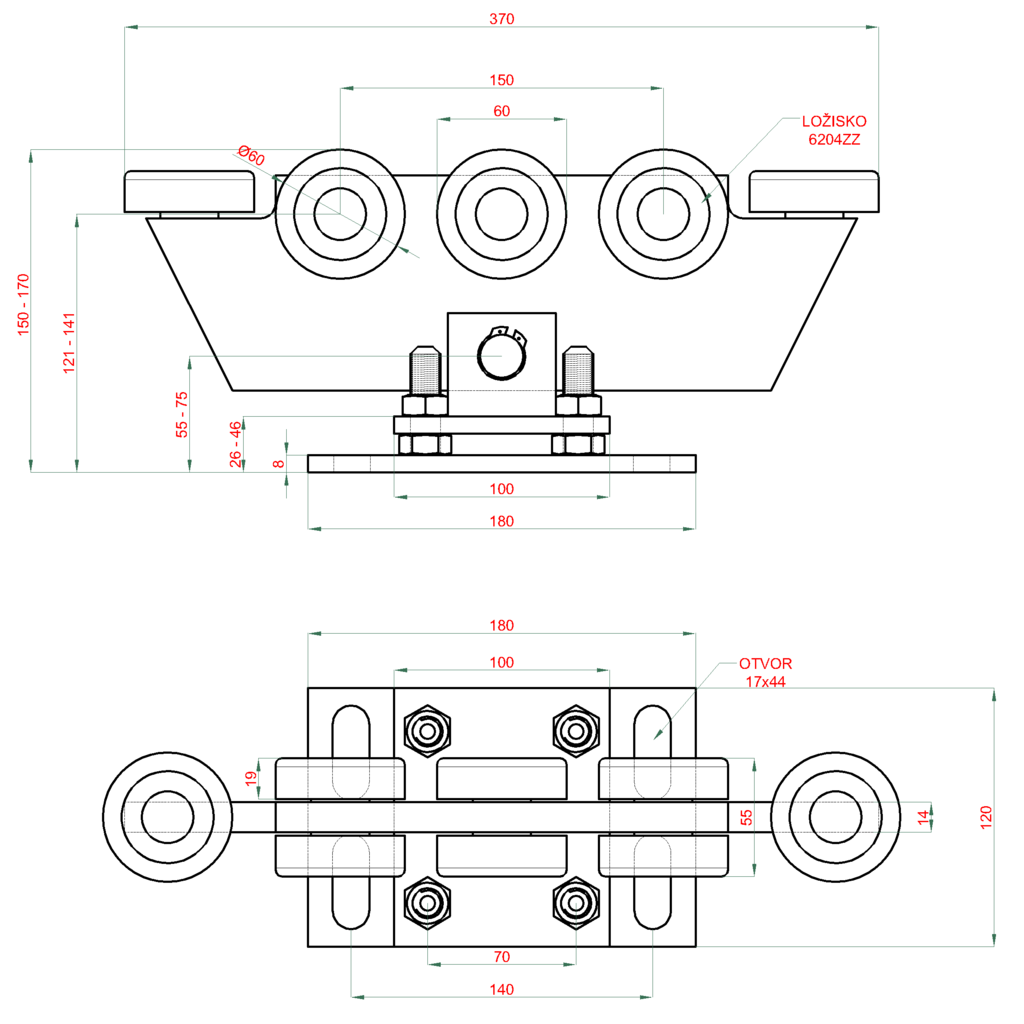

Drawing of the 70×70×4:
360°:
