Components used:
2x V-02-3 Adjustable swing trolley, 5 rollers with mounting plate, for 70x70x4 C-profile, nylon rollers
6m CP-70 70x70x4 mm C-profile, Fe
SN-1-70 Bottom guide roller - galvanized
DK-1-70 Narrow end stop, for 70x70 profile

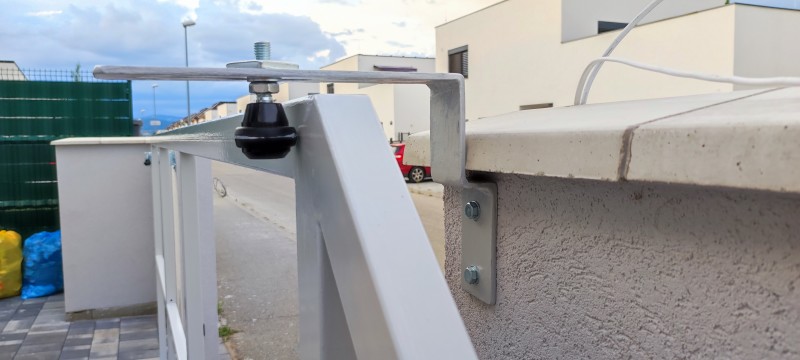

VVR-3-G Top guide with two adjustable rubber-coated rollers
SK-1-70 C-profile end cap for a cantilever gate - galvanized, 70x70

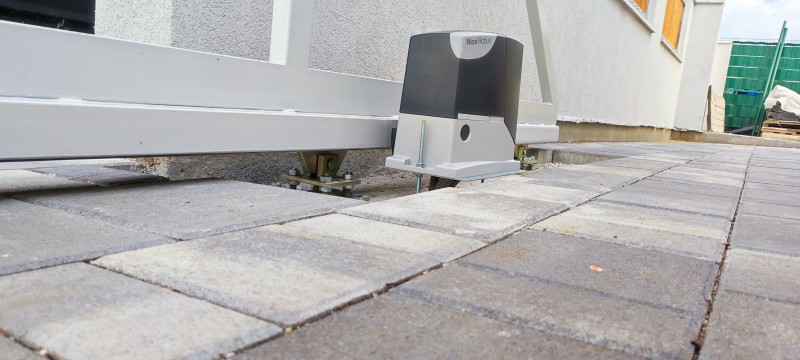

NICE-RB400-D Drive kit for sliding gates up to 400 kg/7 m, NICE Robus RB400 (D)
4m LZ-1-1 Plastic-coated toothed rack, 30x20 mm, with 12x12 mm steel core, M4
2x PR-2-16-A Adjustable screw-on hinge with locknut - narrow plate
KZK642 60x40x1.5 mm profile with lock, profile length 2 m
NICE-ON3EBD NICE Era One BD ON3EBD – three-channel, two-way remote control
2x ZO-27 Rectangular end cap, 40x60, black
2x UD-ZN-1 Zinc-plated bracket for mounting the bottom or top gate stop
UB-1-40G Top gate stop with rollers
24m JOKL-60x40x2 Galvanized rectangular hollow section, 60x40x2 mm
6m JOKL-80x40x2 Rectangular hollow section, 80x40x2, black
ZK-03 + ZE-05 Universal left/right electric lock strike box + electric lock with stainless steel faceplate, 12-24V (AC/DC)
KLN-NG-01-L Straight handle + fixed knob, brushed stainless steel - 1 pair
