DIY sliding gate installation - Bernolákovo
Components used:
V-07-1 - Adjustable swing bracket, 180x120mm mounting plate
CP-80 - C-channel 80x80x5 mm, unfinished steel
SN-1-80 - Bottom guide ramp for 80x80x5mm C-channel
DK-1-80 - Bottom stop/catch for 70x70x4 and 80x80x5 C-channels
VVR-3-G - Top guide with two adjustable rollers
ZC-19 - Square end cap 80x80 mm, black

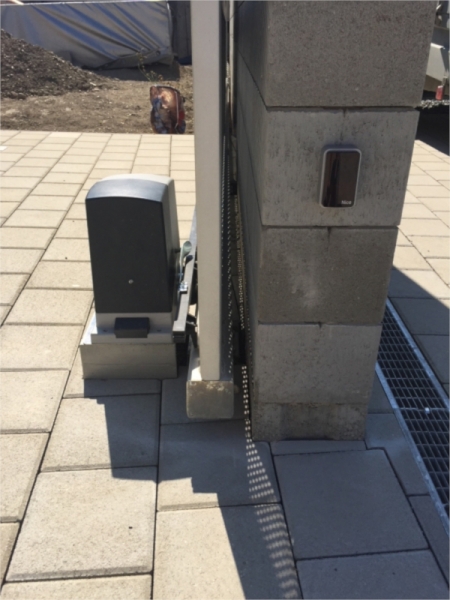

NICE-RB600-D - Drive kit for sliding gates up to 600 kg, NICE Robus
LZ-1-1 - Nylon rack with metal core
NICE-ON2E - NICE ERA ONE-ON2E – 2-channel transmitter
UB-1-40G - Top gate stop with rollers for 40mm-wide profile
P376-16 - Adjustable M16 weld-on hinge, locknut + sleeve
P379-20 - Adjustable weld-on hinge with locknut and long thread
P375-16 - Adjustable M16 hinge with round base, locknut
ZE-01 - Electric lock, 8 - 12 V, AC/DC
ZZ-06 - Mortise lock for wicket gate, 50mm backset, 90mm centres, nickel-plated faceplate
GD-2 - Rubber stop 25x60mm, 38mm high, two holes
JOKL-70x34x55x2 - L-shaped rectangular hollow section 70x34x55x2
JOKL-T-55x34x25x2 - T-shaped rectangular hollow section 55x34x25x2
JOKL-40x34x25x2 - L-shaped rectangular hollow section 40x34x25x2
