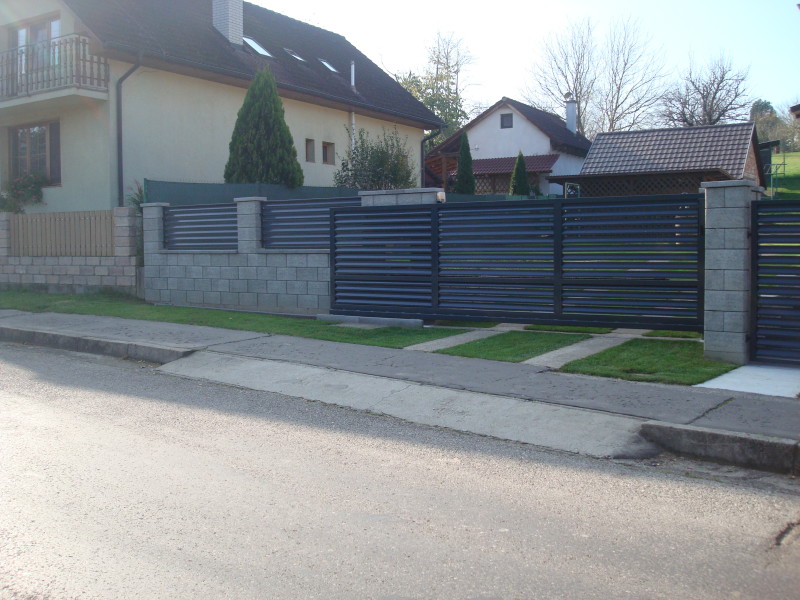

DIY sliding gate installation - Mníchova Lehota
Components used:
6m CP-ZN-70 - 70x70x4 mm C-profile, Zn - hot-dip galvanized

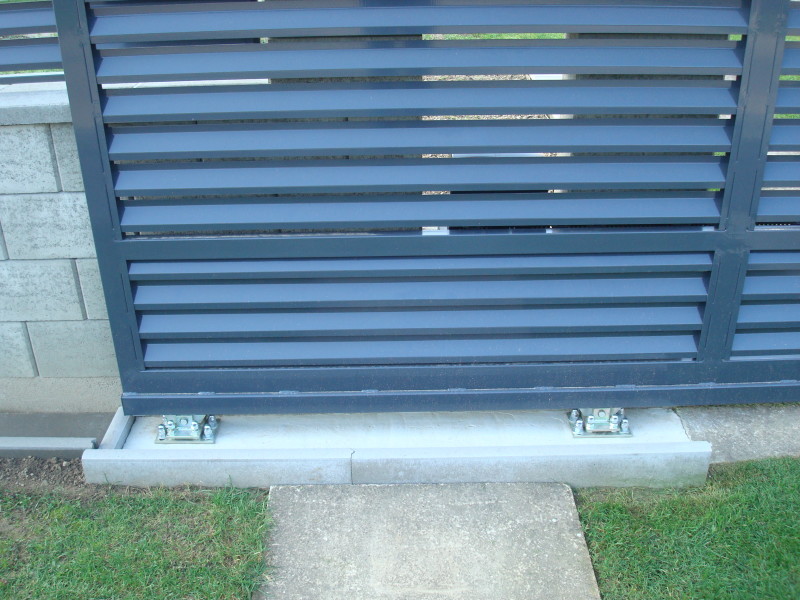

2x V-02-3 - Adjustable swing trolley, 5 rollers with mounting plate
SN-1-70 - Galvanized bottom guide roller, 70x70
DK-1-70 - Narrow end stop receiver, for 70x70 profile
2x BR-43G - Side guide with plastic/rubber-coated roller
SK-1-70 - C-profile end cap for cantilever gate - galvanized, 70x70
NICE-RB400-D - Drive kit for sliding gates up to 400 kg/7 m, NICE Robus RB400 (D)
4m LZ-1-1 - Plastic-coated rack, 30x20mm, with 12x12mm steel core, M4
2x PR-2-16-A - Adjustable screw-on hinge with lock nut - narrow plate
4x P377-16 - Adjustable weld-in hinge with lock nut
KZK442-MALY - 40x40x1.5 mm profile with lock, profile length 1.5m
KL-12 - Aluminum handle with two backplates, 90mm center-to-center
KB-Z2 - Galvanized gate bolt with spring
ZK-05 - Universal gate stop, right- or left-handed
16x DP-03 - L-shaped fence panel bracket for chemical anchors
24x LS-U1 - Galvanized U-shaped fixing profile for slats, size S, 2 m long
80x LS-Z1-C - LS-Z1 Z-profile, 20x30x20x1.5mm, black steel, 2m - piece
18m JOKL-60x40x2 - 60x40x2 hollow section, black steel
