L-shaped fence panel bracket for chemical anchoring
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€1.61 including VAT
| Thread | A [mm] |
B [mm] |
C [mm] |
D [mm] |
Weight |
|---|---|---|---|---|---|
| M12 | 148 | 52 | 37 | 30 | 0,15 kg |
in stock
€2.65 including VAT
| Thread | A [mm] |
B [mm] |
C [mm] |
D [mm] |
Weight |
|---|---|---|---|---|---|
| M16 | 178 | 52 | 47 | 40 | 0,25 kg |
Description of L-shaped fence panel bracket for chemical anchoring
Fence panel bracket is used to fasten the horizontal parts of fence sections to concrete posts, walls or masonry using chemical anchor, or mortar. It can be used with metal, wooden and plastic profiles, as well as other materials.
- The brackets are made of Class 11 steel and are electro-galvanized..
- They are available for threaded rods in two diameters: M12 and M16.

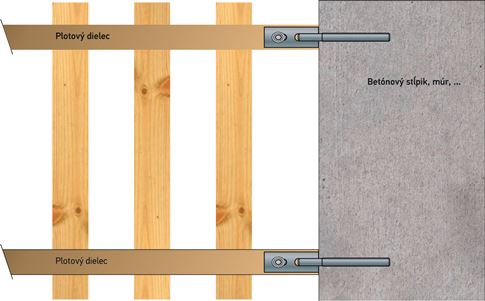

Using the brackets
The elongated mounting hole allows for any inaccuracies in the spacing between fence posts or panels to be adjusted. It is also suitable for use with metal profiles as a sliding joint, allowing the material to expand and contract in response to temperature fluctuations throughout the year. In this case, we recommend using a self-locking nut or a locknut for the joint (i.e. do not fully tighten it).
Load capacity of the brackets

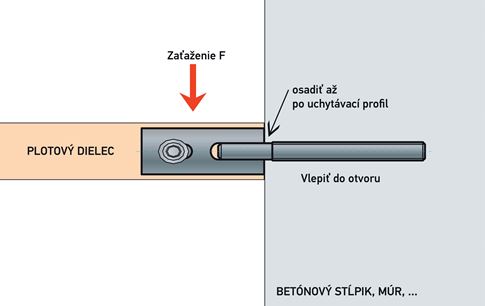

Refer to the table below and the illustration beneath it for the load capacities of the individual fence panel brackets.
| Code | Diameter | Installation depth | Load capacity |
|---|---|---|---|
| DP-03 | 12 mm | 100 mm | 0.4 kN |
| DP-04 | 16 mm | 125 mm | 0.7 kN |
