Kit for building a self-supporting stainless steel sliding gate up to 4.5 m, INOX 98x98x5
INOX| Product availability: | Up to 6 weeks | The goods will be with you within 6 weeks. This lead time may be significantly shorter, so it’s best to check the current delivery time. |
|---|
Up to 6 weeks
€3,289.93 including VAT
| C-channel dimensions | Weight |
|---|---|
| 98x98x5 | 102 kg |
Description of Kit for building a self-supporting stainless steel sliding gate up to 4.5 m, INOX 98x98x5
| Set SADA-38 contains: |
|---|
Kit is assembled to make it easier for you to choose the individual components for an opening width of up to 4.5 m. All components in the KIT are made of stainless steel.
Note: The KIT is more cost-effective than buying the individual components at a discounted price. We can adjust the contents of the KIT on request and apply the appropriate discount. If you have a specific request or would like advice, contact us.
| Kit contents: | SADA-38-4,5 | |||
|---|---|---|---|---|
 |
2 × | Stainless steel trolley with five bearing-mounted rollers | ||
|
Stainless steel trolley with five stainless steel rollers fitted with bearings. |
Detail | |||
 |
6 m | Stainless steel C-channel 98x98x5mm | CP-INOX-98-6 | |
|
Stainless steel C-shaped guide channel welded to the underside of the gate, allowing it to run on trolleys anchored in a concrete foundation. |
Detail | |||
 |

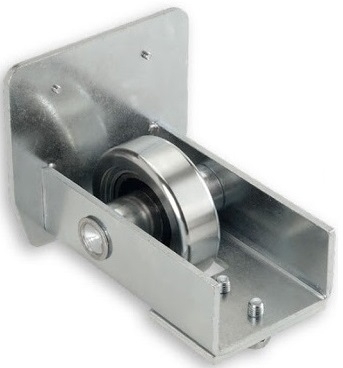

1 × | Stainless steel bottom guide roller | ||
|
The guide roller is fitted at the end of the C-channel and runs into the bottom catch mounted on the gate-stop post, relieving the gate when closed. |
Detail | |||
 |

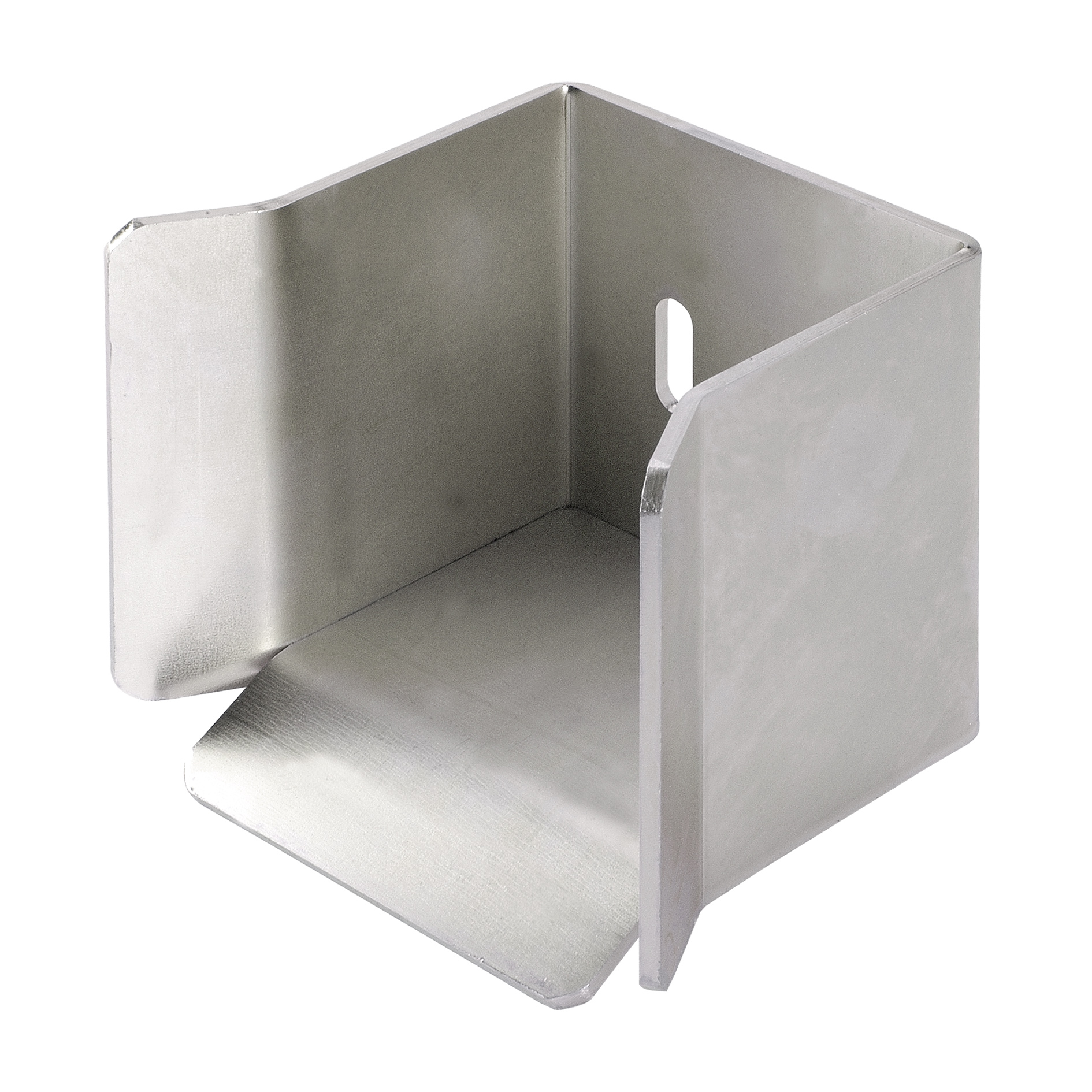

1 × | Stainless steel bottom catch | ||
|
The catch is mounted at the bottom of the gate-stop post. It relieves the trolleys of the compression and tension forces acting on them when the gate is closed. |
Detail | |||
Delivery KITS
All KITS for sliding gates are in stock. We will deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver when you receive the goods) or by bank transfer in advance. Alternatively, you can collect the kit in person in Nové Mesto nad Váhom.
Ordering the KIT
You can order the KIT:
| 1. By email or phone, contact us. | |
|
2. Through the shopping cart:
|
Installing a sliding gate using the KIT components
The kit for the sliding gate comes with an installation drawing that includes recommended dimensions for the concrete foundation and example dimensions for cantilever gates.
We would be happy to advise you on the contents of your kit or on installation. You can:
| Fill in the form | Call or write to us |
|---|---|
| Ask a sales representative for advice | Contact us. |
In the photo gallery you can see customer projects featuring sliding gates built using our components.
Extended warranty
All metal components in this KIT are covered by the 36-month extended warranty. The warranty covers not only metal components but also nylon parts and, in particular, the bearing-mounted rollers trolleys, which form the basis of the cantilever gate mechanism.
All automation electronics in our store are covered by the standard warranty of 24 months.
The invoice included with your delivery serves as the warranty certificate.
Description of the KIT for making a cantilever sliding gate
Complete KIT for making a cantilever sliding gate for an opening width of up to 4.5m and a maximum total cantilever gate weight of 450 kg cantilever gate. On request, we can supply the C-channel cut to whole metres; it can also be extended by welding to accommodate a wider opening. It can also be extended by welding to accommodate a wider opening.
The KIT contains load-bearing trolleys for cantilever gates with five rollers fitted with heavy-duty bearings. The carriages are supplied with a mounting plate.
The set also includes bottom stop and run-in wheel, which relieve stress on the gate and also serve as stops and safety features. The components in this SET are selected so that no additional parts need to be purchased for a manually operated gate. You can, however, add items to the set, such as top stop or hook lock. To automate your gate, you can also purchase gate operator and electronic accessories (remote controls, warning light, photocells).
C-profile is welded to the bottom frame of the gate. We recommend using a minimum size of 80x40x2mm for the bottom frame section, and 60x40, 80x40 or larger sections for the other frame members. The choice depends on the driveway width, the overall length of the gate leaf and its intended weight. We’ll be happy to advise you. The gate frame must be sturdy and stable. Once you have the gate frame, mount the carriages on a concrete foundation (use steel anchors, chemical anchors, or cast the carriages directly into the foundation using threaded rods). We’ll provide the concrete foundation dimensions, along with other recommended installation instructions, with your products. Alternatively, contact us, and we’ll be happy to advise you.
More detailed information about cantilever gates and the components used to build one can be found in the section Common Sliding Gate Installation Scenarios.
