Aluminum fence slat, 108x16 mm, parallelogram-shaped with grooves
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€84.48 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 5,83 kg |
in stock
€42.25 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 2,91 kg |
in stock
€28.17 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 1,94 kg |
Description of Aluminum fence slat, 108x16 mm, parallelogram-shaped with grooves
Aluminium slat, can be used as infill for a fence, gate, or any other space. The slat has a parallelogram shape with grooves, with a height of 108 mm, a width of 16 mm, and is supplied in lengths of 2 m, 3 m, or 6 m.
The slat is hollow and has guide grooves on the sides for the fixing screws. The simplest installation method is to use fixing profiles with pre-drilled grooves for precise drilling and screw fixing.
Patterns for the parallelogram-shaped aluminium slat:
Combined with the fixing profiles, you can create two patterns:
- Vertical slats – with a fixing profile 20.5 mm wide
 |
 |
- Angled slats – with a fixing profile 50 mm wide
 |
Installation methods for parallelogram-shaped aluminium fence slats:
The fixing profiles are available in two versions:
- U-shaped profile – for fixing “between” the posts
- UT-shaped profile – for fixing “in front of” the posts
Method for fixing the slats vertically in a U-profile (20.5 mm wide):
 |
 |
Method for fixing the slats at an angle in a U-profile (50 mm wide):
 |
 |
Method for fixing the slats at an angle in a UT-profile (50 mm wide):
 |
 |
Surface finish:
Aluminium is generally an excellent material with corrosion and weather resistance, and a long service life. The slat is made from EN AW-6060 T66 grade aluminium and supplied unfinished. Before applying paint, if desired, thoroughly degrease the aluminium surface and roughen it with fine-grit sandpaper.
Suitable fixing screws:
for UT-profile screws with countersunk heads, DIN 7982, 3.9x19 mm
for U-profile screws with countersunk heads, DIN 7982, 3.9x19 mm

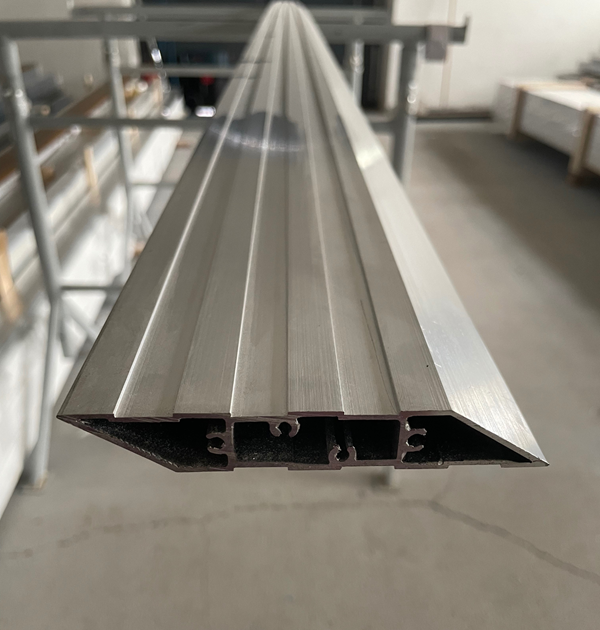

Realistic photo of the aluminium slat:
Technical specifications of the aluminium slat for gate and fence infill:
Material: natural aluminium (EN AW-6060 T66)
Surface finish: unfinished
Dimensions: 108x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 1.94 kg, 2.91 kg, 5.83 kg
