DIY sliding gate - Prachovany

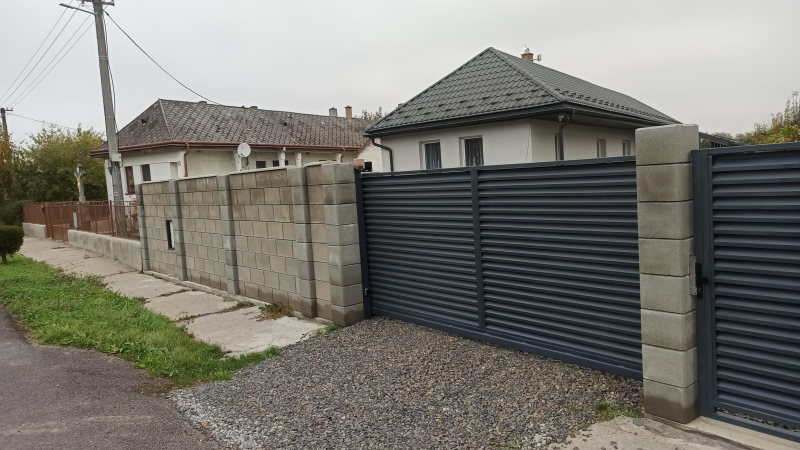

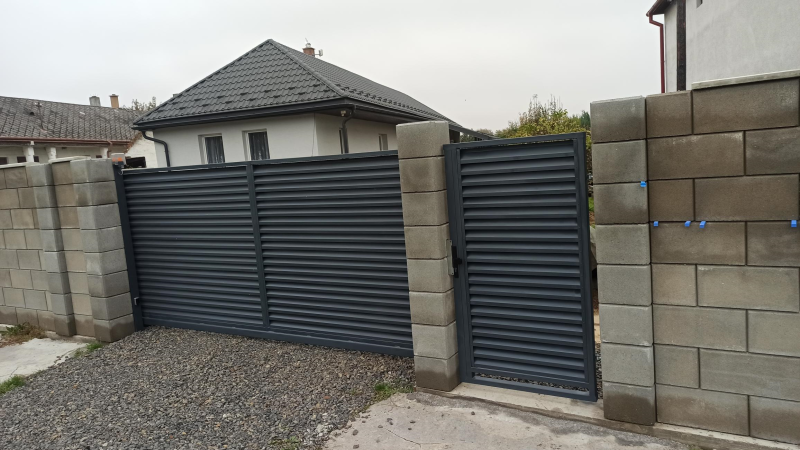

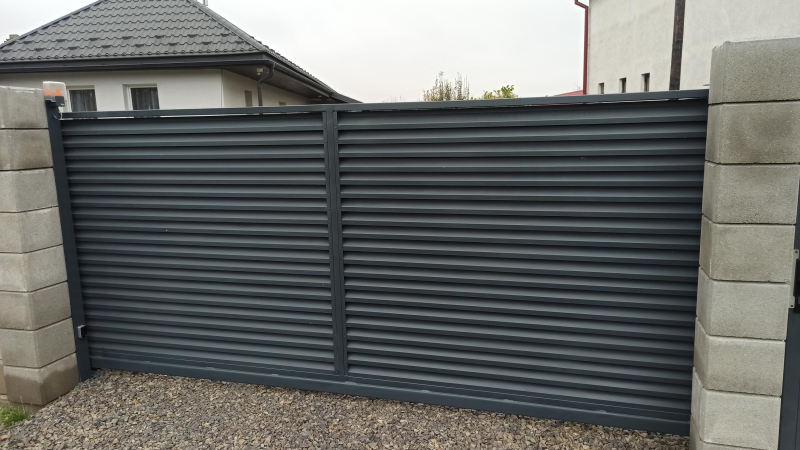

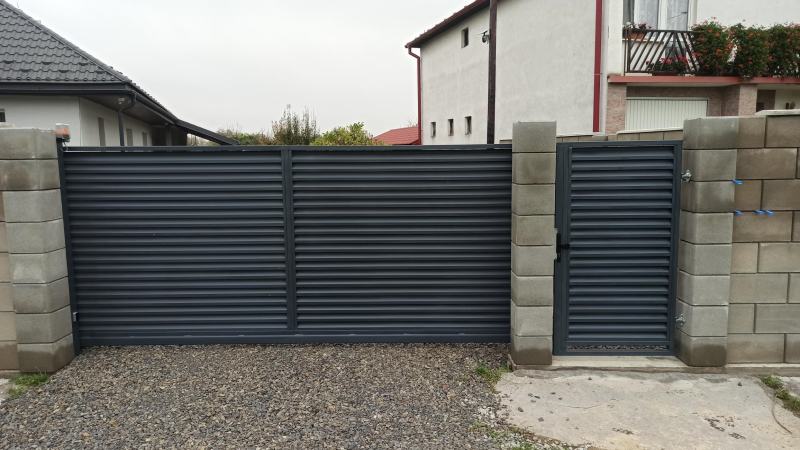

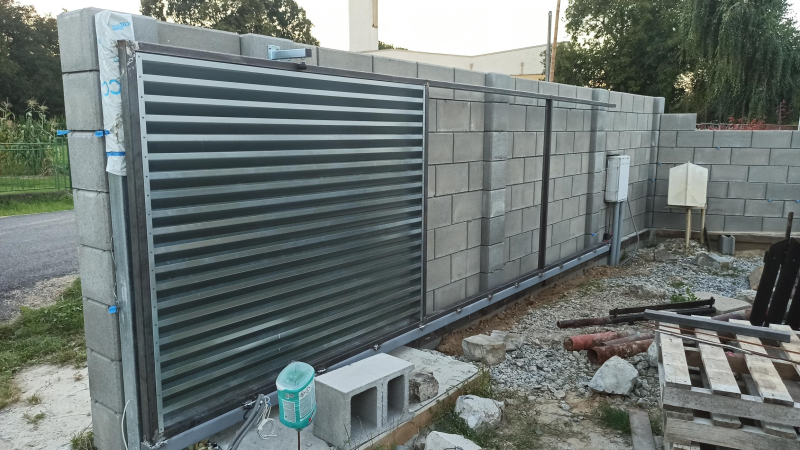

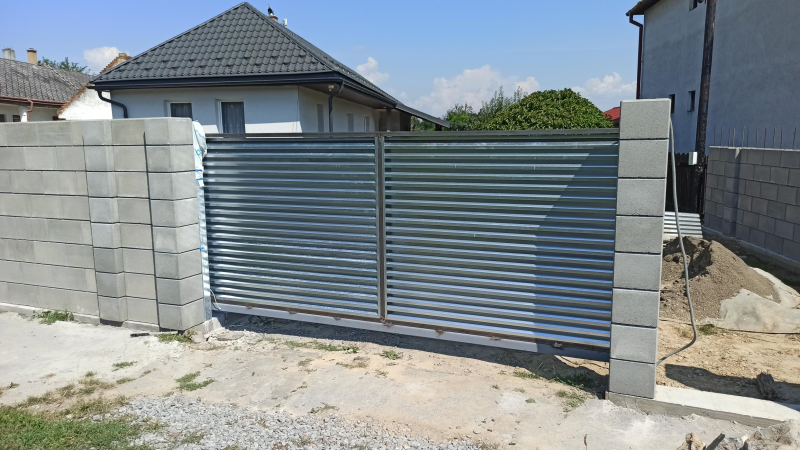

This photo guide to our satisfied customer’s DIY sliding gate and Z-shaped fence-slat infill may inspire you to take on your own project.

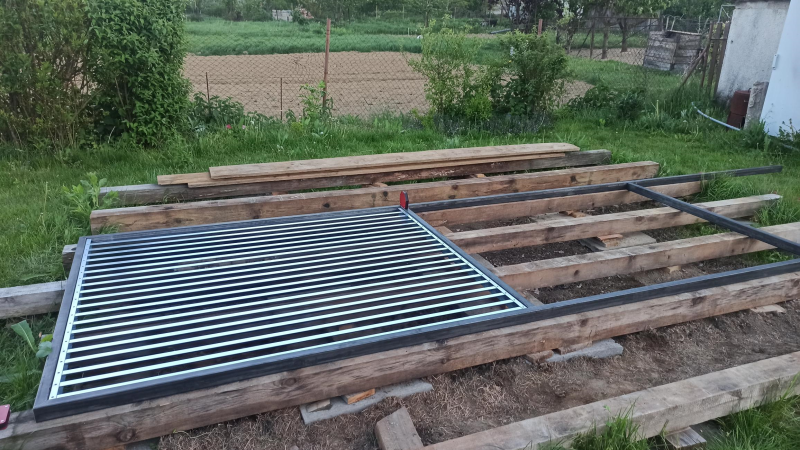

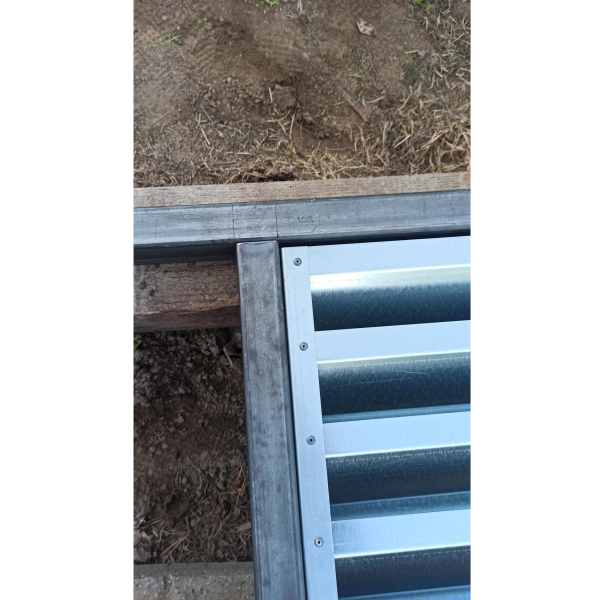

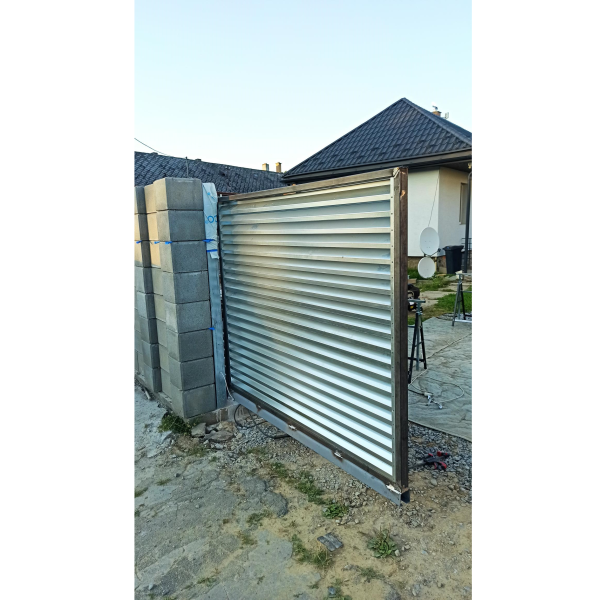

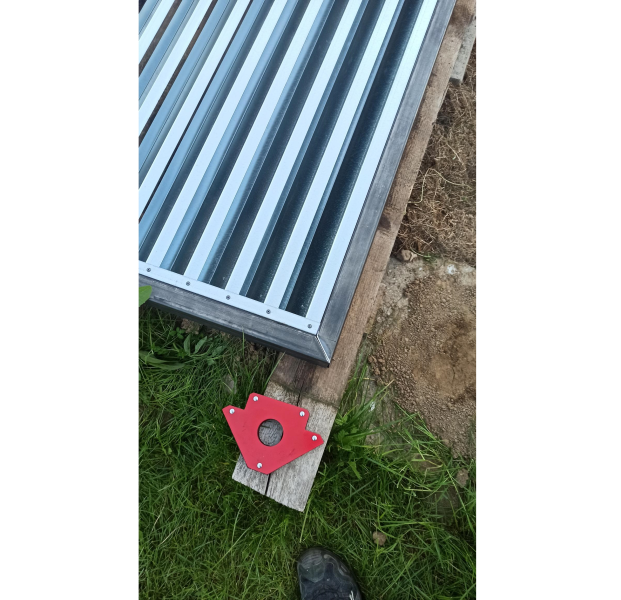

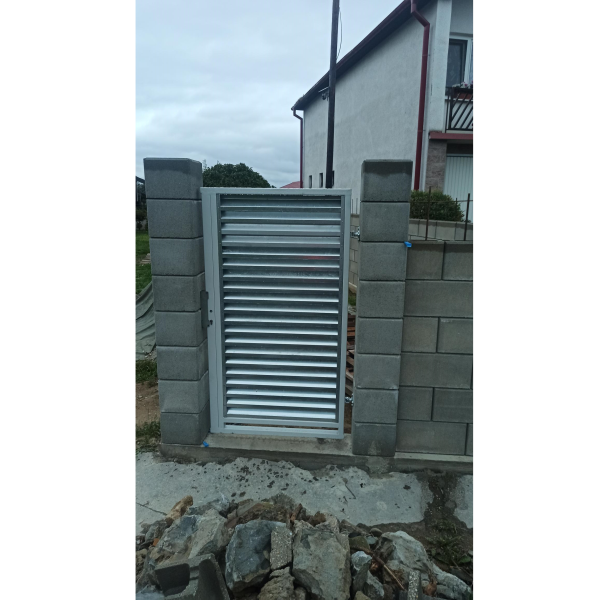

The popular louver-style pattern for gate and pedestrian gate infill can be made from galvanized Z-shaped slats fixed into a mounting profile, with the entire structure then finished in anthracite.
Components used:
- V-02-1 - Adjustable swing trolley, 5 rollers with mounting plate 2 pcs
- CP-80 - C-profile 80x80x5 mm, Fe 6 m
- SN-1-80 - Galvanized bottom guide roller
- DK-1-80 - End catcher pocket – bottom stop
- VVR-3-G - Top guide with two adjustable rubber-coated rollers
- SK-1-80 - End cap for a cantilever gate C-profile – galvanized, 80x80
- NICE-RB400-D - Drive kit for sliding gates up to 400 kg/7 m, NICE Robus RB400
- NICE-ON2E - NICE Era One ON2E – two-channel remote control for NICE gate operators
-
PH-42 - Magnetic safety switch
- LZ-1-1 - Plastic-coated rack, 30x20 mm, with 12x12 mm steel core, M4
-
JOKL-60x40x2 - Galvanized rectangular hollow section, 60x40x2 mm
- JOKL-80x40x2 - Rectangular hollow section, 80x40x2 mm, black
-
JOKL-100x100x3-ZN - Galvanized rectangular hollow section, 100x100x3 mm
- ZHC-07 - Black square cap, 10x10 cm
- LS-Z3 - Galvanized Z-shaped fence slat for an L-size profile, L2 plan shape, 3 m long
-
LS-U3 - Galvanized U-shaped mounting profile for slats, size L, 2 m long
-
P376-16 - Adjustable weld-on hinge with sleeve
- KZK642-ZN - 60x40x1.5 mm profile with lock, 2 m long, galvanized
- KL-15 - Lock cassette, 245x50x30 mm, KZK220
-
ZK-03 - Universal left/right stop cassette for an electric lock + electric lock, 6–14 V (AC/DC), ZK-03
