Magnetic safety switch
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
PH-42
in stock
in stock
€10.23 excluding VAT
€12.58 including VAT
€12.58 including VAT
| Weight |
|---|
| 50,00 g |
Description of Magnetic safety switch
Magnetic metal contact (NC). Suitable, for example, for opening a sliding gate behind a pedestrian gate. When the pedestrian gate is opened (the contact is disconnected), the sliding gate stops automatically, preventing it from trapping anyone passing through. Connect the magnetic contact to the STOP input as described in the manual for the device.
Technical Support - Wiring the Magnetic Switch
The package includes a magnetic switch with pre-wired cable (cable length approx. 20 cm) and a counterpart that closes the circuit. Mount the switch on the post and the counterpart on the pedestrian gate or other moving part.
| Maximum current rating | 500 mA |
|---|---|
| Maximum contact voltage | 100 V DC |
| Dimensions | 32 x 15 x 8 mm |
| Cable length | approx. 20 cm |

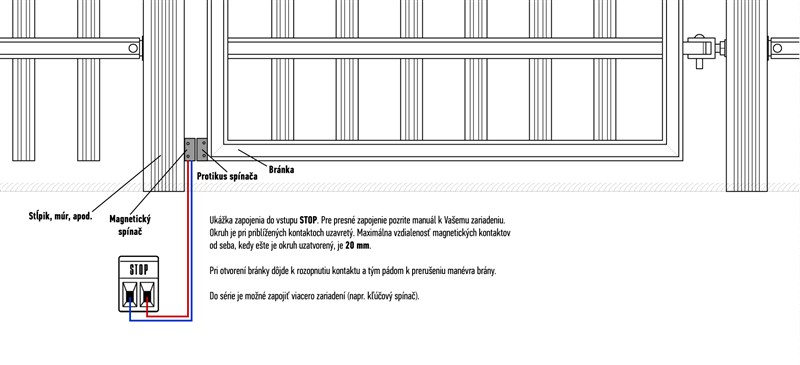

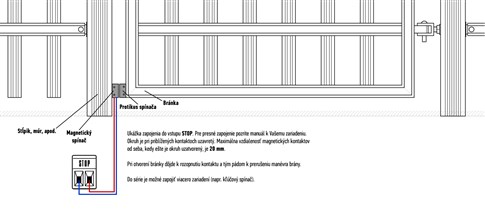

Magnetic switch wiring diagram

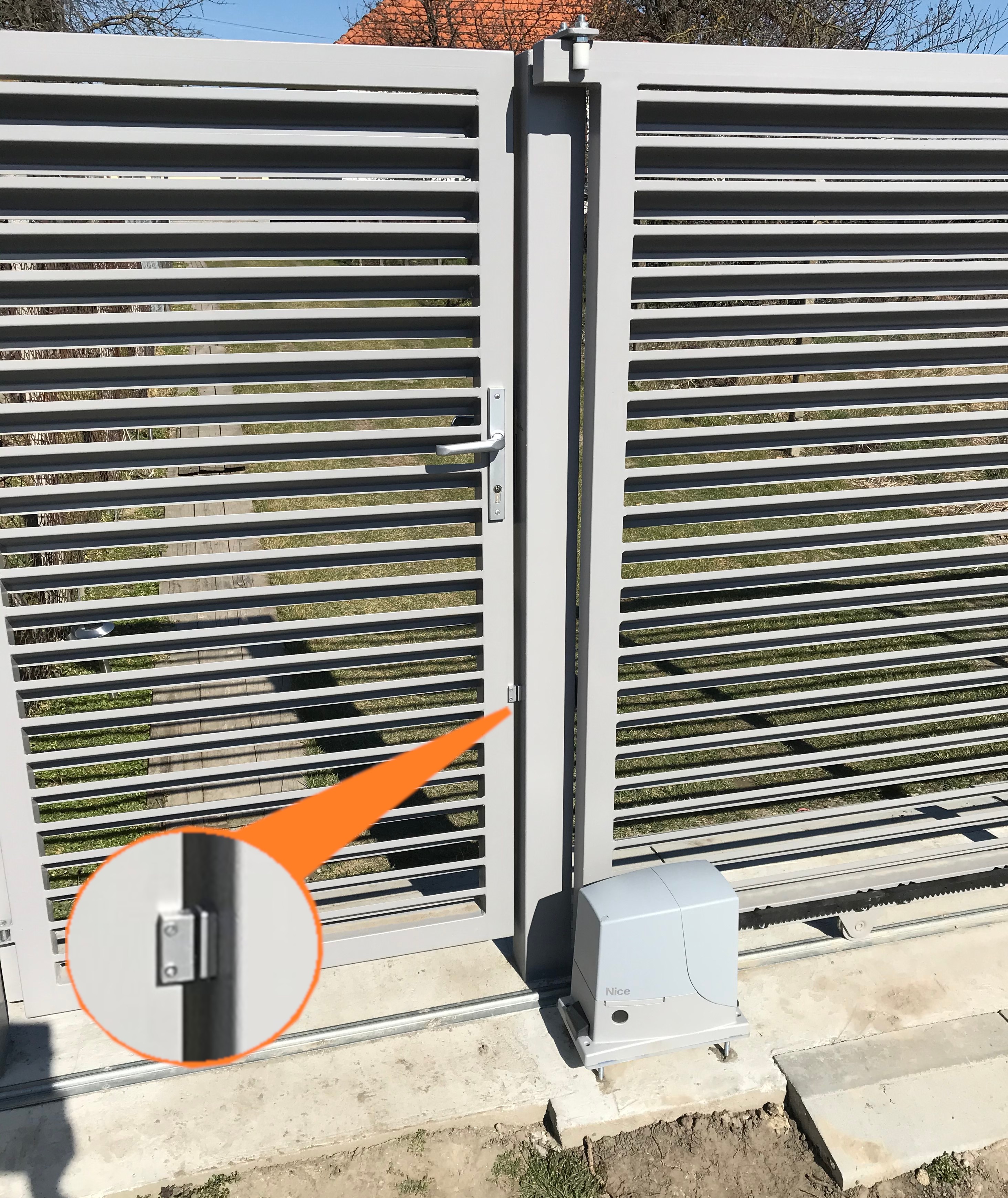

Example of using a magnetic switch for a sliding gate that runs in front of/behind a pedestrian gate:

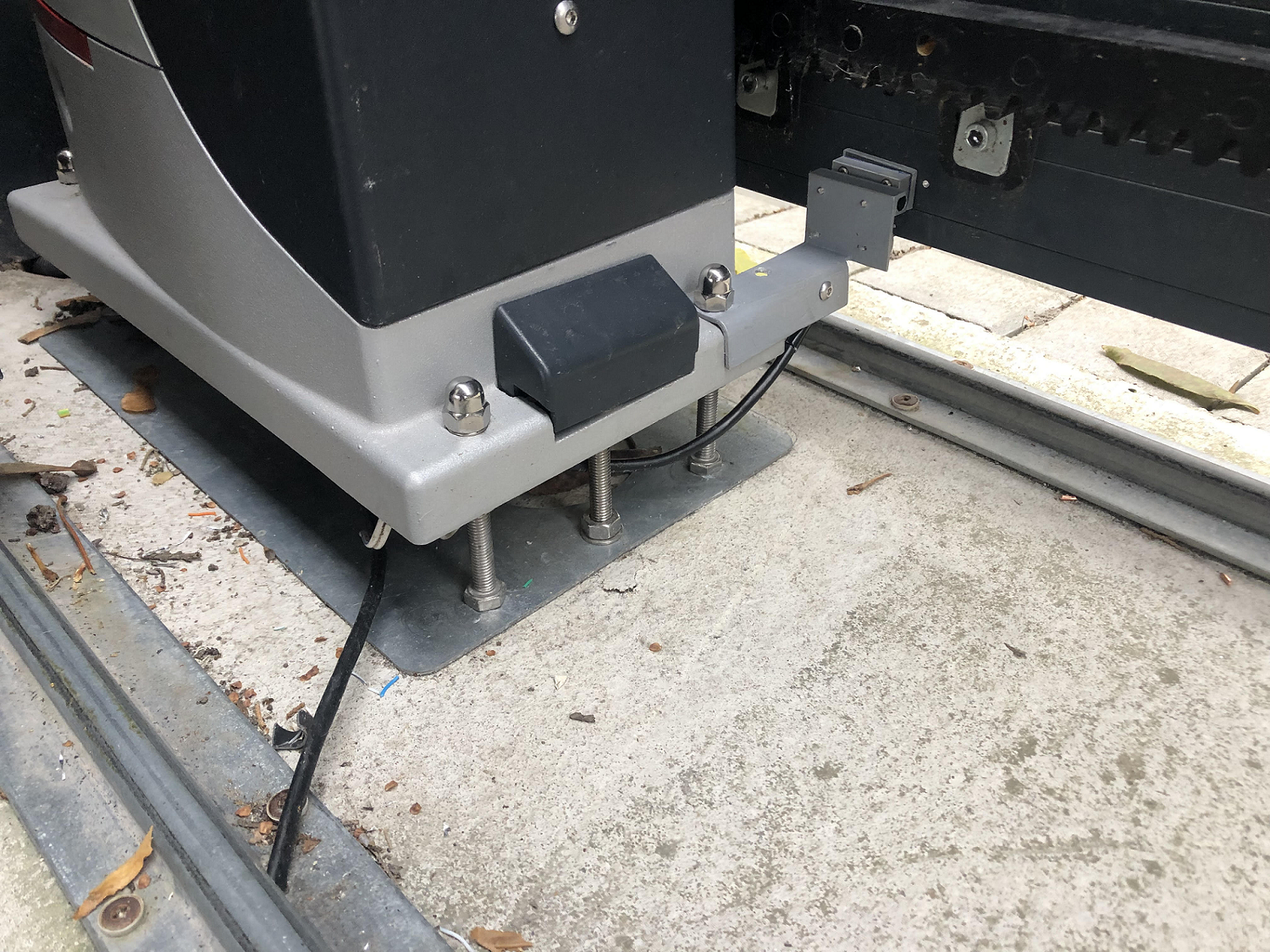

Example of using a magnetic switch to detect the gate position:
