Sliding gate rail kit for a passage width of up to 3.0 m


Product availability: In stock

We normally dispatch goods within 24 hours.

Sliding gate rail kit for a passage width of up to 3.0 m Sliding gate rail kit for a passage width of up to 3.0 m
Available variant types for this product Sliding gate rail kit for a passage width of up to 3.0 m
Wheel type:

You can choose wheels with a bracket, recessed, or recessed with a support.
Wheels
for bolting
with bracket
Recessed
screw-in
wheels
Wheels
welding
recessed
Guide type:

Top guide Use it if the infill of your gate (e.g. wooden slats, Lexan, expanded metal) does not extend above the gate. Anchor it to the existing fence or to an adjustment post.
Side guide Use it if you want the gate infill to extend above the gate frame. Anchor the rollers to the adjustment post on the inside of the gate.
The top and side guides are the same price.
Side
guide
Top
guide
SADA-13
In stock
€100.92 excluding VAT
€124.13 including VAT

 pcs
Weight
16 kg

Description of Sliding gate rail kit for a passage width of up to 3.0 m

Sliding gate track kit for a driveway opening width of 3m. All components are galvanized (including the edges of the track). The kit includes high-quality wheels with bearings. Screw or weld the wheels to the bottom of the gate frame. Choose wheels according to how you want to attach them to the gate. The most popular option is wheels with mounting brackets.  The track is designed to allow trucks to drive over it. The track can be anchored to a cured concrete foundation or directly to paving. The stops mechanically define the end positions. It is also advisable to define the end positions when using an operator with its own limit stops. The top guide stabilizes the gate as it moves. It is not subject to heavy loads, as most of the weight is transferred downward to the wheels.

Note: The KIT is discounted compared with buying the components individually at a better price. We can customize the kit contents on request and apply an appropriate discount. If you have a specific request or would like advice, contact us.

The kit includes: SADA-13
Sliding gate wheels 2 × Ø80 mm wheel

Choose from three versions:

 Detail
Sliding gate track 2 × 3m-long U-shaped track KLB-KOL16-US-ZN3

Guide track for sliding gates.

 Detail
Sliding gate lower stop 1 × Lower stop with base KLB-SD-2

Used as a stop for the sliding gate.

 Detail
Sliding gate upper stop 1 × Adjustable upper stop 40-99mm UB-40-100

Upper stop for a sliding gate, adjustable from 40mm to 99mm.

 Detail
Sliding gate guide 1 × Gate guide

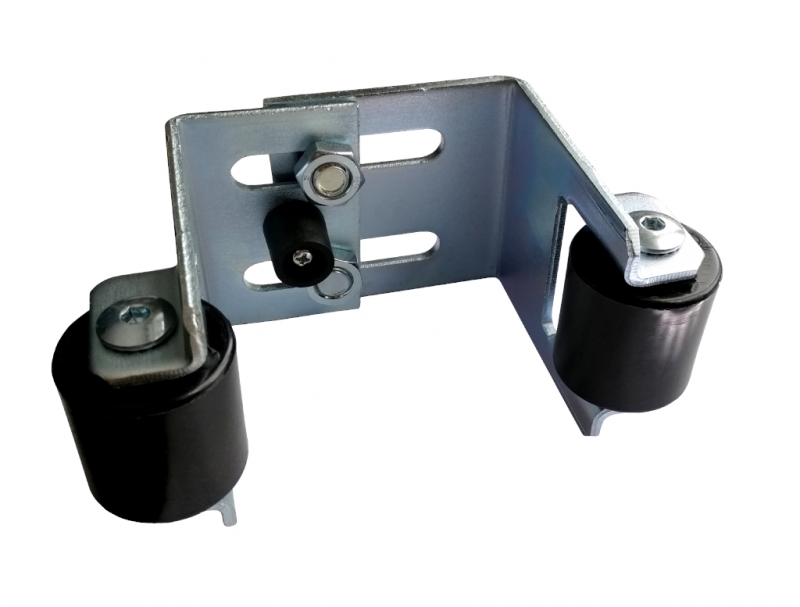

Gate guide for vertical stabilization of the gate across its width. Choose either a top guide (1 × VVR-3-G) or a side guide (2 × BR-43G).

 Side

Top

All metal components are protected against corrosion by galvanizing. Go to the KIT component descriptions.

Delivery KITS

All sliding gate KITS are in stock. We will deliver the KIT by courier directly to your address. You can pay cash on delivery (to the driver when you receive the goods) or by bank transfer in advance. Alternatively, you can collect the kit in person in Nové Mesto nad Váhom.

Ordering A KIT

You can order a KIT:

1. By email or phone, contact us.

2. Through the shopping cart:

  • Click “Buy” to add the product to your cart, where you can select:
    • Payment method: cash on delivery, bank transfer, or cash payment at our premises in Nové Mesto nad Váhom.
    • Delivery method: courier or collection in person.
  • Then click “Proceed to checkout” in the cart to proceed to checkout, where you can enter your delivery and billing details and submit your order.
  • We will then arrange the exact delivery date with you by email at [email protected] or by email.

Sliding gate installation using the KIT components

The sliding gate kit comes with an installation drawing showing the recommended concrete foundation dimensions and sample dimensions for track gates.

We would be happy to advise you on the contents of your kit or its installation. You can:

Fill in the formCall or write to us
Ask a salesperson for adviceContact us.



In the photo gallery you'll find customer projects sliding gates built using our components.

Extended Warranty

All metal components in this KIT are covered by the 36-month extended warranty. The warranty covers not only the metal components but also nylon parts.

All and automation electronics sold in our store are covered by the standard warranty of 24 months.

The invoice included with your delivered goods serves as the warranty certificate.

KIT description for making a cantilever sliding gate

Complete KIT for making a track-mounted sliding gate for a passage width of up to 3.0 m and a maximum total weight of 250 kg track-mounted gate. This complete kit offers great value. On request, we can supply an additional track to provide a passage width greater than 3.0 m.

The parts in this KIT are selected so that no additional components need to be purchased for a manually operated gate (you can, however, add items to the kit, such as a hook lock or top stop). To automate your gate, you can also purchase gate drive and electronic accessories (remote controls, warning light, photocells).
