IBFM recessed U-shaped screw-on sliding gate wheel

TOP U-shaped


Product availability: In stock

We normally dispatch goods within 24 hours.

IBFM recessed U-shaped screw-on sliding gate wheel IBFM recessed U-shaped screw-on sliding gate wheel
KLB-KO16-U050
in stock
€9.83 excluding VAT
€12.09 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 D
[mm]		 H
[mm]		 h[mm] Weight
50 19 27 16 27 17 0,30 kg
KLB-KO16-U060
in stock
€9.97 excluding VAT
€12.26 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 D
[mm]		 H
[mm]		 h[mm] Weight
60 18,5 26 16 21 11 0,35 kg
KLB-KO16-U080
in stock
€11.24 excluding VAT
€13.83 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 D
[mm]		 H
[mm]		 h[mm] Weight
80 20 32 16 38 27 0,69 kg
KLB-KO16-U090
in stock
€12.25 excluding VAT
€15.06 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 D
[mm]		 H
[mm]		 h[mm] Weight
90 22 33 16 38 30 0,90 kg
KLB-KO16-U100
in stock
€13.48 excluding VAT
€16.58 including VAT

 pcs
Ø [mm] A
[mm]		 C
[mm]		 D
[mm]		 H
[mm]		 h[mm] Weight
100 22 33 16 45 32 1,00 kg

Description of IBFM recessed U-shaped screw-on sliding gate wheel

Galvanized wheel for a U-shaped track, with high-quality Italian-made bearings from IBFM. Recessed screw-on wheels are used for a cleaner appearance and to reduce the gate’s offset from the track. For Ø16mm track.

Wheel load capacity:

Wheel diameter Load capacity per pair
Ø 50mm 120 kg
Ø 60mm 150 kg
Ø 80mm 250 kg
Ø 90mm 250 kg
Ø 100mm 300 kg

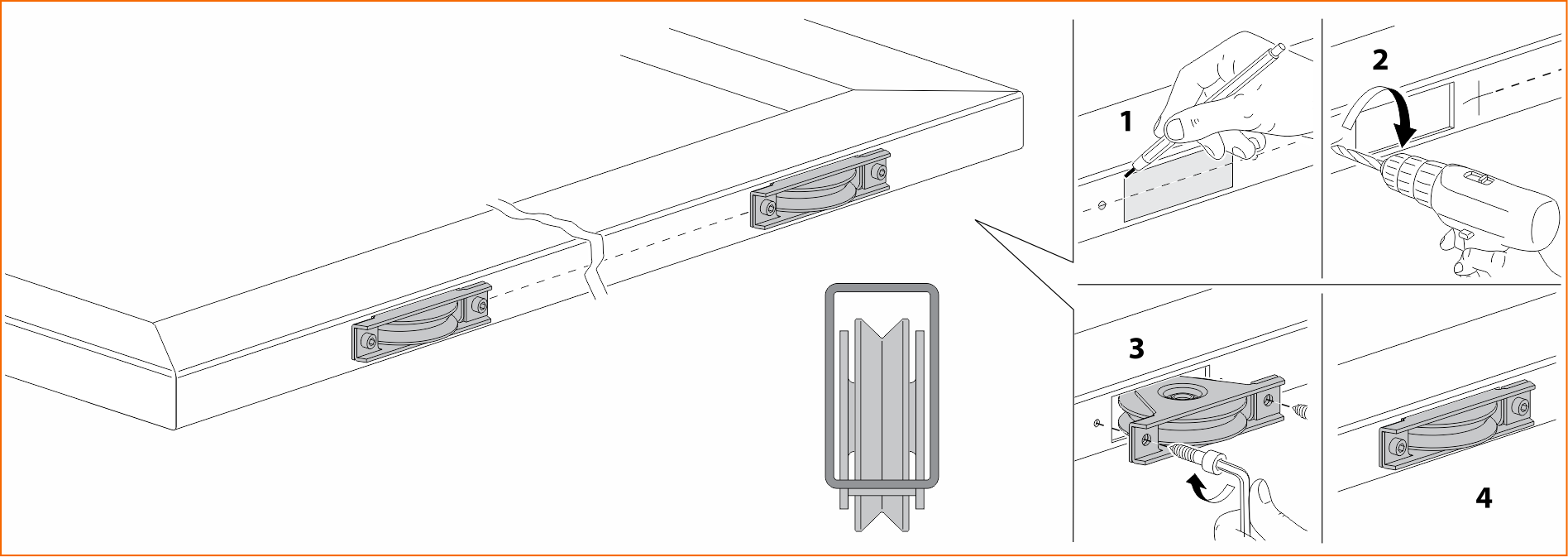

INSTALLATION OF THE RECESSED SCREW-ON WHEEL:

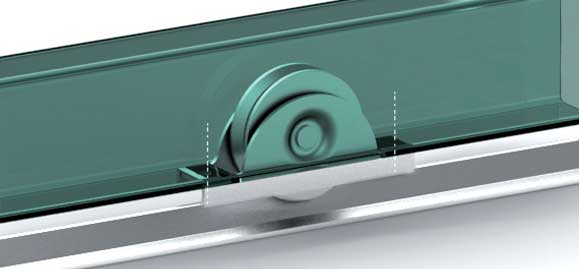

Wheel installation

Installation – screw-on wheel
