Kit for making a cantilever sliding gate with a clear opening width of 6.5 m, galvanized profile, 10 rollers
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Kit for making a cantilever sliding gate with a clear opening width of 6.5 m, galvanized profile, 10 rollers | ||
| Guide type: larger set: |
Top guide Use it if the infill of your gate (e.g. wooden slats, polycarbonate, expanded metal) does not extend above the gate. Secure it to the existing fence or to an alignment post. |
|
|---|---|---|
|
Side
guide Top
guide |
||
€669.26 including VAT
| C-channel dimensions | Weight |
|---|---|
| 80x80x5 | 128 kg |
Description of Kit for making a cantilever sliding gate with a clear opening width of 6.5 m, galvanized profile, 10 rollers
Kit of components for building a cantilever gate in the highest quality with highly reliable load-bearing bearings and a hot-dip galvanized C-profile.
Note: The KIT is more cost-effective than buying the components individually and offered at a discounted price. We can customize the KIT contents on request and apply the appropriate discount. If you have a specific request or would like advice, contact us.
| The kit contains: | SADA-06-ZN-K10 | |||
|---|---|---|---|---|
 |

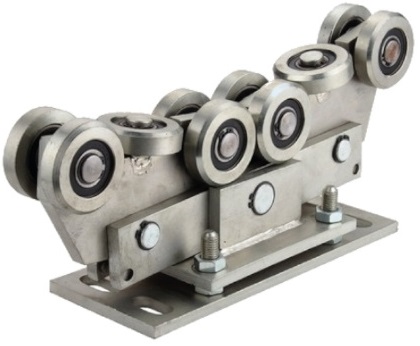

2 × | 10-bearing-roller carriage | V-15-5 | |
|
All-metal adjustable pivoting carriage for oversized sliding gates. Suitable for gates with a clear opening width of up to 7.5 m that weigh more than 600 kg. The carriage is supplied with a mounting plate included in the price. |
Detail  |
|||
 |
6+3 m | Hot-dip galvanized C-profile | CP-ZN-80 | |
|
Thick-walled hot-dip galvanized C-shaped guide profile welded to the underside of the gate, allowing it to run on carriages anchored in a concrete foundation. Finish: hot-dip galvanized. C-profiles can be joined by welding. |
Detail |
|||
 |
1 × | Guide roller | SN-1-80 | |
|
The guide roller is fitted at the start of the C-profile and rolls into the lower catch mounted on the closing post, relieving the gate when closed. |
Detail |
|||
 |
1 × | Lower catch | DK-1-80 | |
|
Catch mounted at the bottom of the closing post. It relieves the compressive and tensile forces acting on the carriages when the gate is closed. |
Detail |
|||
 |
1 × | Gate guide | ||
|
Gate guide for lateral stabilization of the gate in the vertical plane. You can choose an upper guide (1 × VVR-2-G) or a side guide (2 × BR-43G). |
Side-mounted Top-mounted |
|||
 |
1 × | Metal C-profile end cap | SK-1-80 | |
|
The sliding gate C-profile cap is fitted at the start and, if needed, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a pressure plate. |
Detail |
|||
