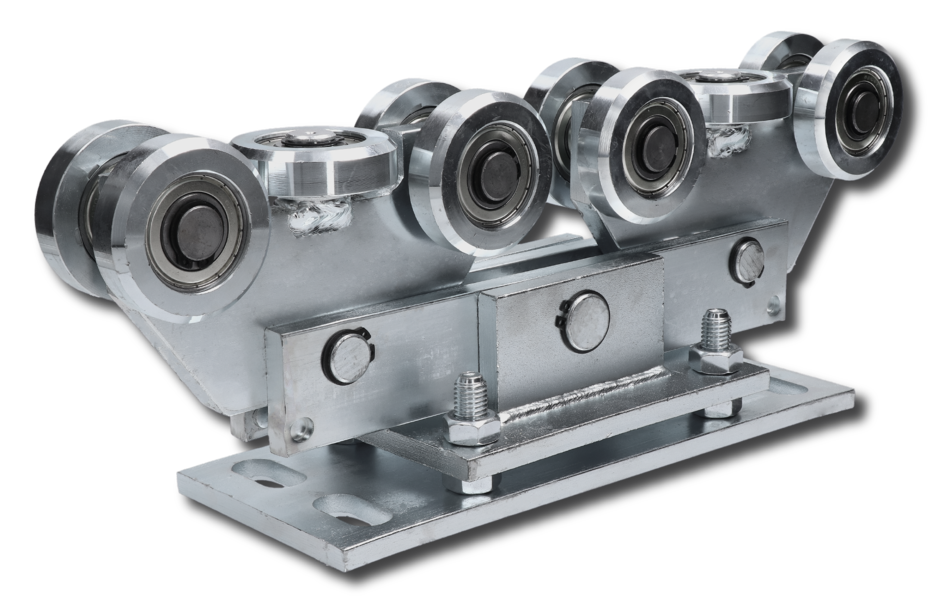

All-metal adjustable trolley, 10 rollers, with mounting plate
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€146.92 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 80 | 80 | 5 | 95 | 115 | 15 kg |
Description of All-metal adjustable trolley, 10 rollers, with mounting plate
Adjustable, all-metal articulated trolley for oversized sliding gates. Suitable for gates with a clear opening width of 7.5 m to 12 m. It can also be used for gates with a clear opening width of up to 7.5 m that weigh more than 600 kg. The trolley is supplied with a mounting plate included.
- Variant V-15-1 fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN
The ability to adjust the trolley allows you to fine-tune the gate’s angle and ensure smooth operation (including in relation to the terrain or the slope of the driveway).
The trolley’s articulation ensures the gate’s weight/pressure is distributed evenly across all the bearing rollers on the trolleys at every point in the gate’s movement.
All discounted cantilever gate kits.
Trolley mounting plate dimensions
| A[mm] | B[mm] | C[mm] | D[mm] | Overall trolley length including bearings[mm] |
|---|---|---|---|---|
| 300 | 120 | 145 | 245 | 450 |
 |
||||
Anchoring the support trolleys of a cantilever gate:
The support trolleys can be anchored:
- to threaded rods that you cast directly into the foundation
- to threaded rods chemically bonded into a fully cured concrete foundation
- to hammer-in anchors into a fully cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 19mm, they are anchored with M18. All methods are suitable; it depends on which one you have more experience with.

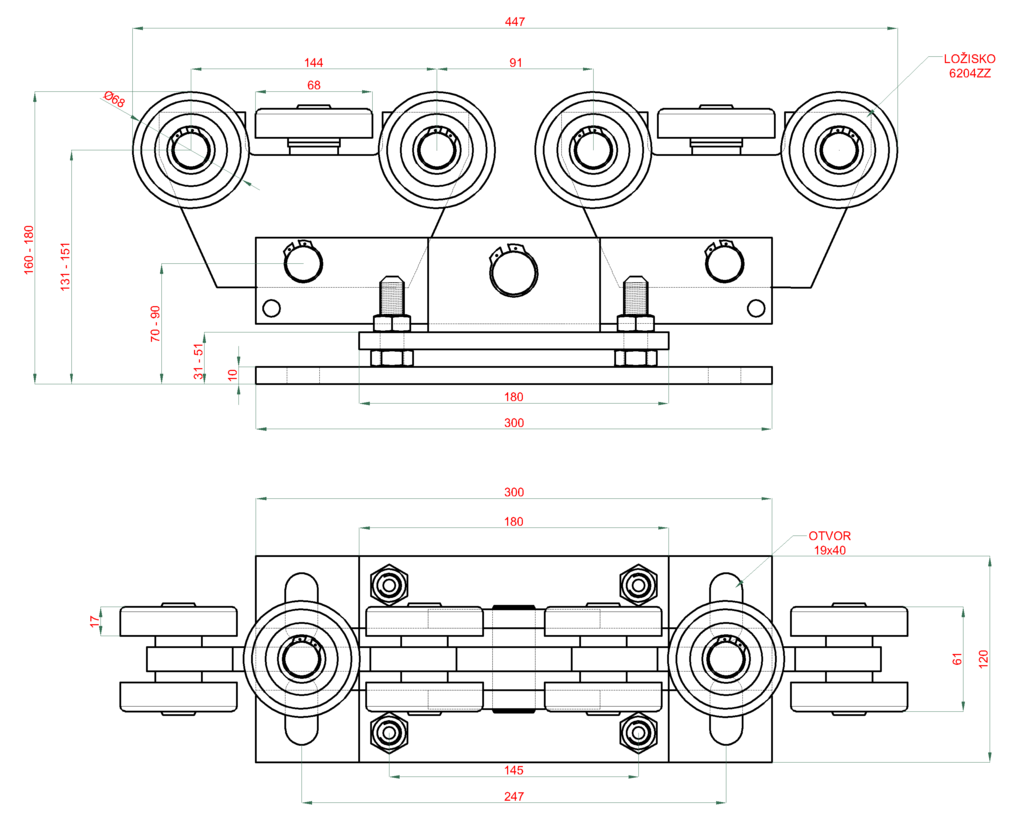

Drawing of 80×80×5 trolley:
360°:
