Kit for making a 2 m x 1.2 m aluminum fence panel, 100x16 mm slats, anthracite RAL7016, smooth finish
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€257.52 including VAT
| Weight |
|---|
| 16 kg |
Description of Kit for making a 2 m x 1.2 m aluminum fence panel, 100x16 mm slats, anthracite RAL7016, smooth finish
Aluminium fence infill designed for those who want to build it themselves a maintenance-free, modern fence. It uses a modular aluminium system that allows quick installation using screws, with no welding required. The set is suitable as infill for a fence, sliding gate, pedestrian gate or other structure. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: You can also choose the spacing between the slats. A guide groove is marked on the U-profile to show where to screw in the slat. You can decide how to position and space the slats.
For this panel, the standard slat spacing is 5 cm (for a total height of 1.2 m). Increasing the spacing between the infill slats can give you a height of up to 1.5 m. This flexibility lets you adapt the use of the infill profiles to your needs.
Advantages
- Complete set – no need to check component compatibility.
- Lightweight and long-lasting.
- Maintenance-free, modern fence.
- Versatile use – the fence panel is suitable as infill for a gate, fence or other structure.
- You can install it using standard tools.
- Easy installation – the slats are screwed directly into the grooves of the U-profile.
- Modern, timeless design.
- Saves time and money.
- The set contains all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied disassembled, as individual aluminium profiles and fasteners. It is not a fully assembled fence panel.
| Set SADA-AL-PV3-A-2x1.2 contains: | ||||
|---|---|---|---|---|
|
8 × | Aluminium fence slat 100x16 mm, anthracite RAL7016, smooth finish | AL-PV3-A-2 | |
|
The aluminium slat, finished in glossy anthracite, can be used as infill for a fence, gate or any other structure. The slat is rectangular, measuring 100 mm high and 16 mm wide. The slat is hollow and has mounting holes on the sides for fastening screws. |
Details
|
|||
|
1 × | Aluminium U-profile, 20.5 mm wide, anthracite with a smooth finish, 3 m | AL-UP1-A-3 | |
|
The aluminium U-shaped fixing profile for fence slats is suitable for installation between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm and an overhang of 23 mm. The outside of the profile has recessed grooves for precise screw positioning. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||
.png "Manual for the 2x1.2 fence panel kit (100x16 rectangular slats)")
|
1 × | Manual for the 2x1.2 fence panel kit (100x16 rectangular slats) |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The mounting U-channel has a groove running along its length, making it easier to position the slats precisely. The slats also make installation easier, with precisely positioned mounting holes for securely fastening them to the U-channel using self-tapping steel screws.
- Length of the mounting profiles: Cut the U-channel into two pieces, each 120 - 150 cm long.
- Spacing between the fence slats: Following the installation instructions (the mounting holes in the slats), mark the spacing on the U-channel and drill holes for the screws.
- Fastening the aluminium slats: Position the U-channels along the sides, place the slats perpendicular between them, and firmly fasten everything together using self-tapping steel screws.
How to install the fence panel
The U-channels are attached to fence posts or profiles in the gate/gate-door frame, and are installed using screws, preferably with countersunk heads. If the post or gate frame is also made of aluminium, the fence panel can also be installed by welding.
When anchoring the fence panel to a low wall we recommend using a chemical anchor and threaded rods. Finally, you can cover the nuts and ends of the threaded rods with screw caps or paint them (or use a metal marker in the desired colour).

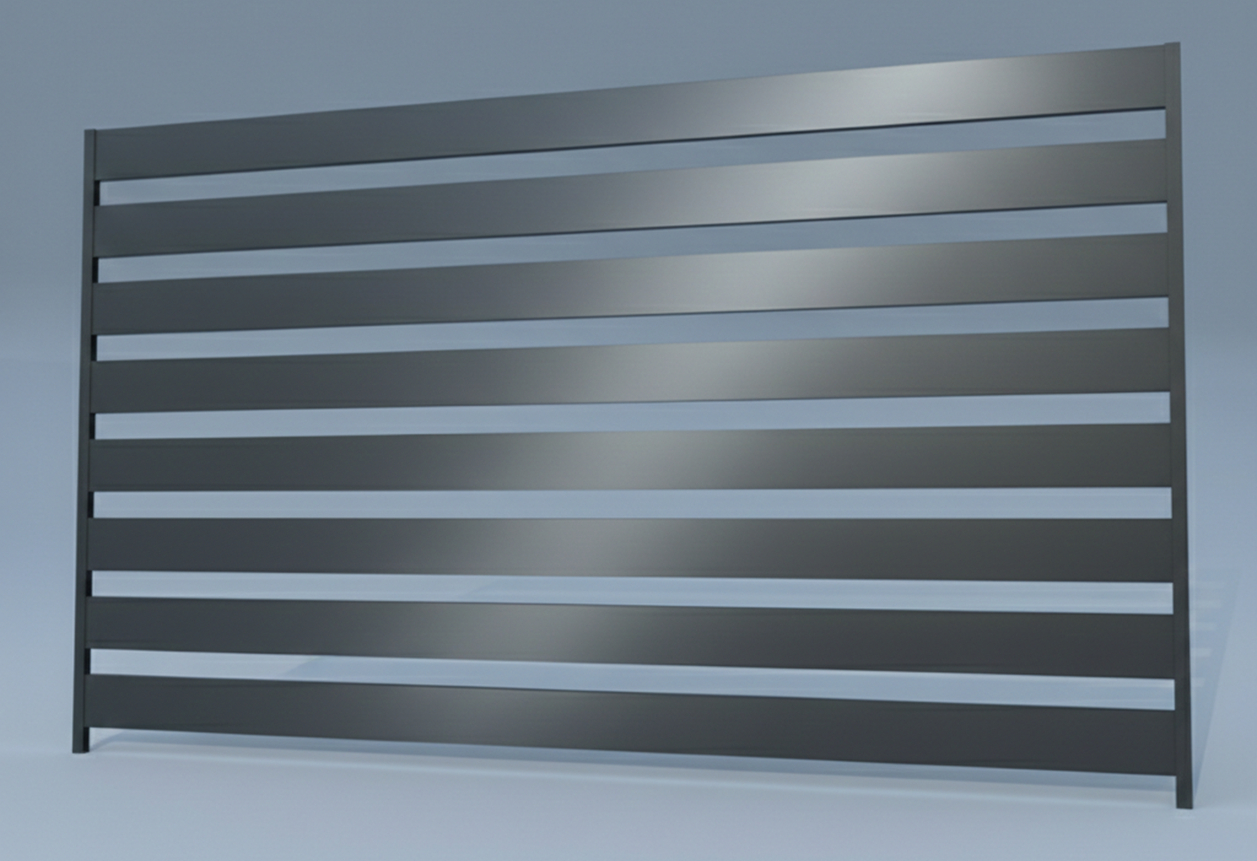

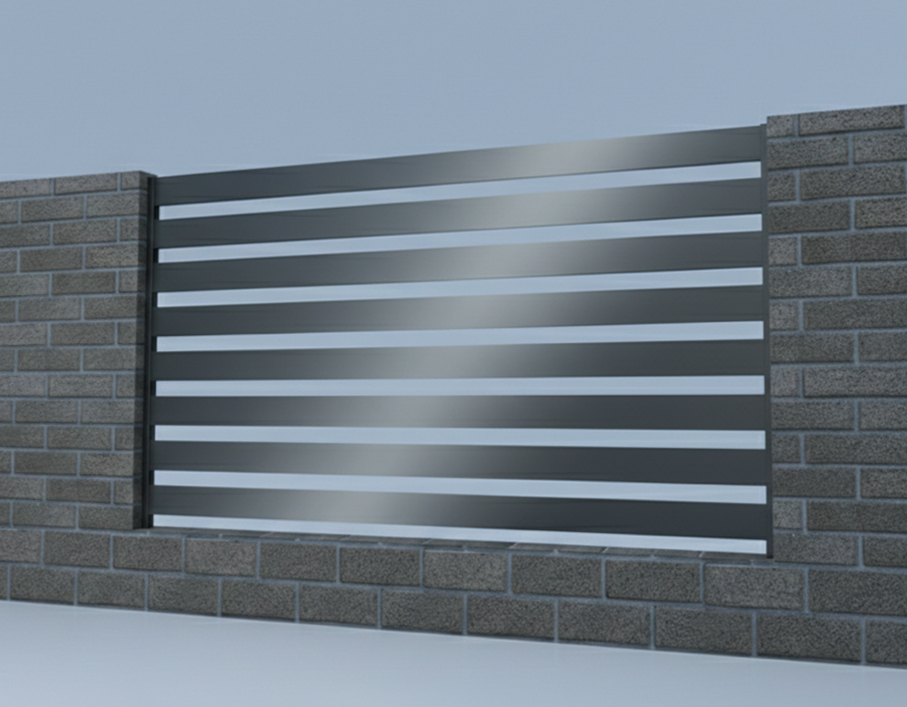

Fence panel visualisation
Material and finish
The slats and profile are made of durable, untreated aluminium and finished with a powder coating in anthracite (RAL7016), a modern, timeless colour. The surface of these slats is smooth. If you prefer a matte finish, choose the version with a textured surface. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is designed for DIY installation.
- The mounting U-channel must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
360° VIEW OF THE ALUMINIUM FENCE PANEL:
360° VIEW OF THE DISASSEMBLED ALUMINIUM FENCE PANEL:
| Material: | aluminium (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | anthracite RAL7016, smooth finish |
| Frame dimensions: | 1.2 m (height) × 2 m (width) |
