Kit for making a 2 m x 1.2 m aluminium fence panel, 100x16 mm slats, anthracite RAL7016, textured finish
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€243.21 including VAT
| Weight |
|---|
| 16 kg |
Description of Kit for making a 2 m x 1.2 m aluminium fence panel, 100x16 mm slats, anthracite RAL7016, textured finish
Aluminium fence infill designed for those who want to build a low-maintenance modern fence themselves. It uses a modular aluminium system that allows quick installation using screws, with no welding required. The set is suitable as infill for a fence, gate, pedestrian gate, or other structures. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: you can also choose the spacing between the slats. A guide groove is marked on the U-profile to show where to screw in the slat. You can choose the slat layout and spacing to suit your needs.
The standard spacing between slats for this panel is 5 cm (for a total height of 1.2 m). Increasing the spacing between the infill slats can give you a height of up to 1.5 m. This flexibility lets you adapt the infill profiles to your specific requirements.
Benefits
- Complete set — no need to worry about component compatibility.
- Lightweight and long-lasting.
- A low-maintenance modern fence.
- Versatile use — the fence panel is suitable as infill for a gate, fence, or other structure.
- You can install it using standard tools.
- Easy installation — the slats screw directly into the grooves in the U-profile.
- A modern, timeless look.
- Saves time and money.
- The set contains all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied unassembled, as separate aluminium profiles and fastening hardware. It is not a pre-assembled fence panel.
| Set SADA-AL-PV3-AS-2x1.2 contains: | ||||
|---|---|---|---|---|
|
8 × | Aluminium fence slat 100x16 mm, anthracite RAL7016, textured, 2 m | AL-PV3-AS-2 | |
|
The aluminium slat, finished in textured anthracite, can be used as infill for a fence, gate, or any other structure. The slat is rectangular, 100 mm high and 16 mm wide. The slat is hollow and has mounting holes on the sides for fixing screws. |
Details
|
|||
|
1 × | Aluminium U-profile, 20.5 mm wide, textured anthracite, 3 m | AL-UP1-AS-3 | |
|
The U-shaped aluminium fixing profile for fence slats is suitable for mounting between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm and an overhang of 23 mm. Recessed grooves on the outside of the profile allow screws to be positioned precisely. Length: 3 metres. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||
.png "Manual for the 2x1.2 fence panel kit (100x16 rectangular slats)")
|

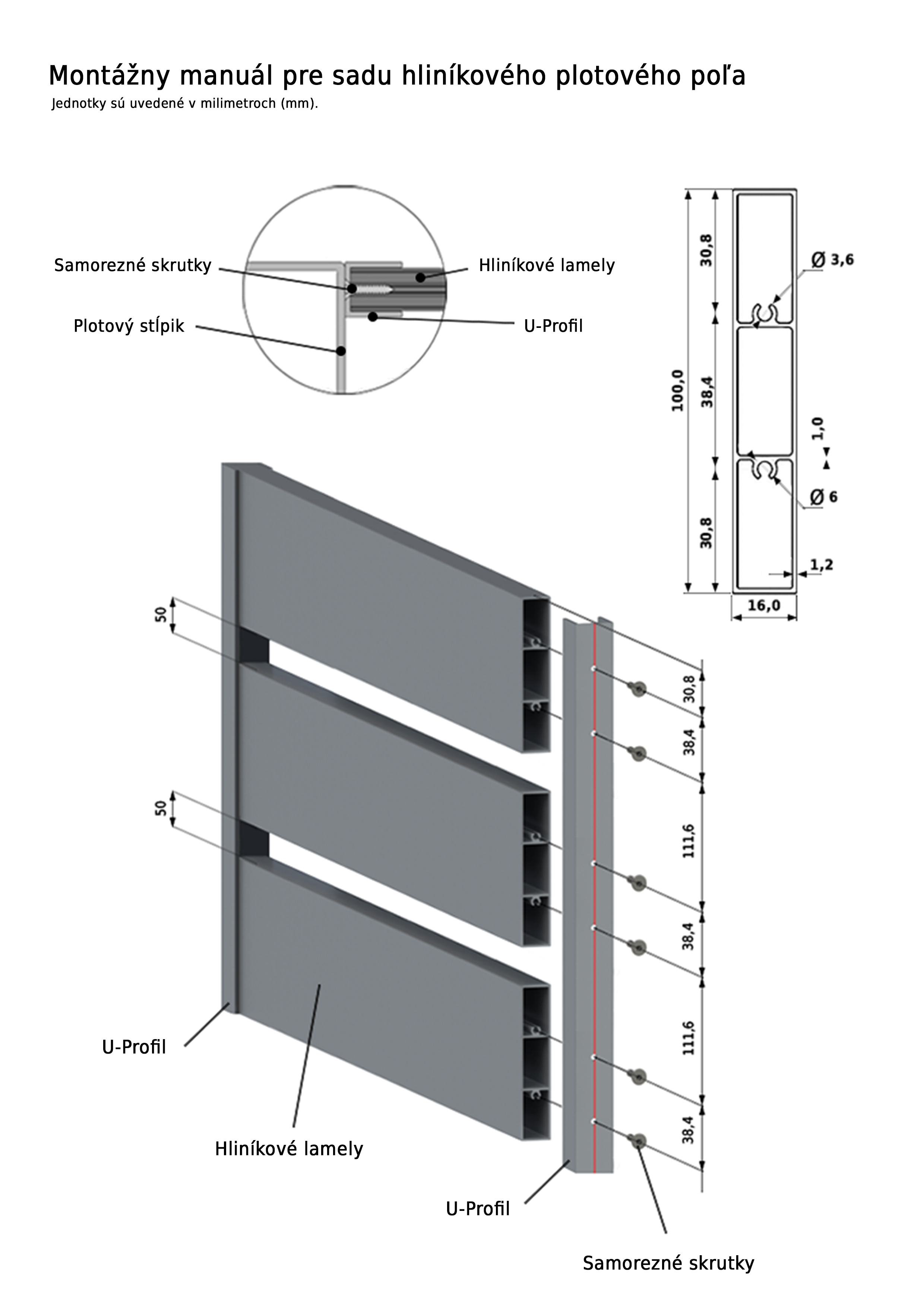

1 × | Manual for the 2x1.2 fence panel kit (100x16 rectangular slats) |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The mounting U-profile has a groove running along its length, making it easy to position the slats precisely. The slats themselves also make installation easier, with precisely positioned mounting holes for securely fastening them to the U-profile using self-tapping steel screws.
- Length of the mounting profiles: Cut the U-profile into two pieces, each 120 - 150 cm long.
- Spacing between the fence slats: Following the installation instructions (the mounting holes in the slats), mark the spacing on the U-profile and drill holes for the screws.
- Fastening the aluminium slats: Position the U-profiles at the sides and the slats perpendicular between them, then securely fasten everything together with self-tapping steel screws.
How to install a fence panel
The U-profiles are fitted to fence posts or to the profiles in the gate/gateway frame using screws, preferably with a countersunk head. If the post or gate frame is also made of aluminium, the fence panel can also be installed by welding.
When anchoring the fence panel to a low wall we recommend using chemical anchors and threaded rods. Finally, you can use screw caps on the nuts and ends of the threaded rods, or paint them (or use a metal marker in the desired colour).

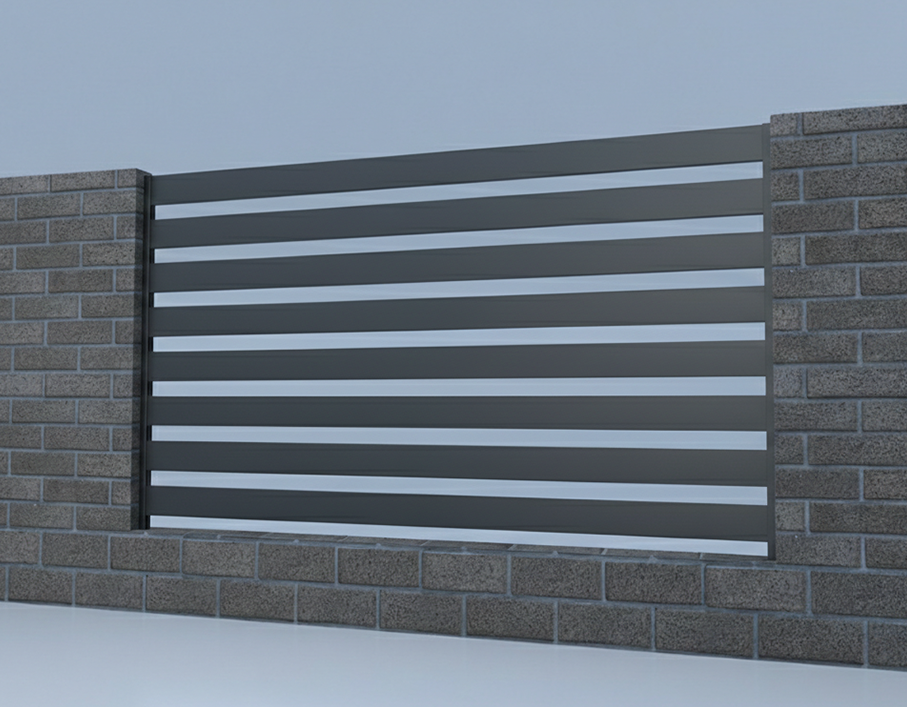

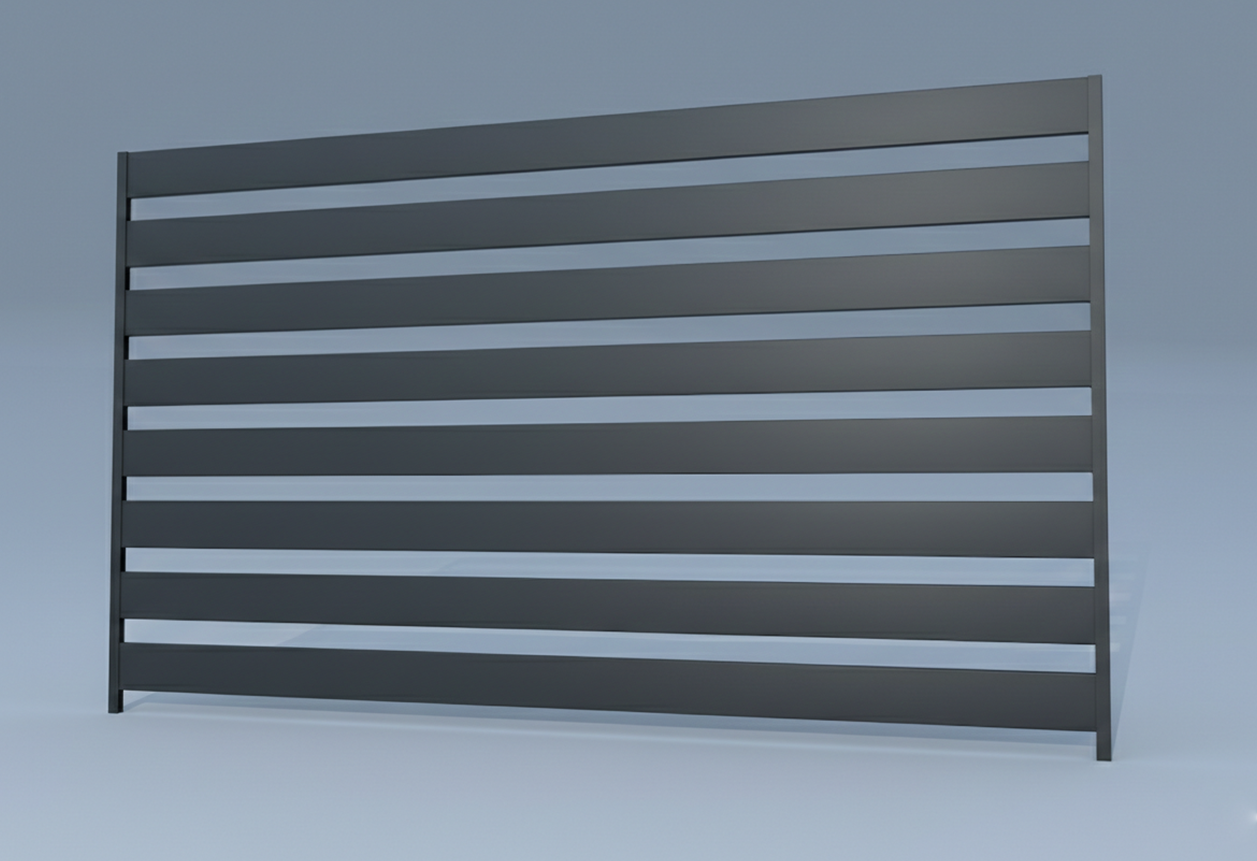

Fence panel visualisation
Material and finish
The slats and profile are made from durable, uncoated aluminium and finished with a powder coating in anthracite (RAL 7016), a modern, timeless colour. The surface of these slats has a fine texture. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is designed for DIY installation.
- The mounting U-profile must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
360° VIEW OF THE ALUMINIUM FENCE PANEL:
360° VIEW OF THE DISASSEMBLED ALUMINIUM FENCE PANEL:
| Material: | aluminium (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | textured anthracite RAL 7016 |
| Dimensions of the structure: | 1.2 m (height) × 2 m (width) |
