Kit for building a cantilever sliding gate with a clear opening width of up to 6.5 m, with a galvanised C-profile and 9 rollers
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Kit for building a cantilever sliding gate with a clear opening width of up to 6.5 m, with a galvanised C-profile and 9 rollers | ||
| Guide type: larger set: |
Top guide Use it if the infill of your gate (e.g. wooden slats, polycarbonate, expanded metal) does not extend above the gate. Secure it to the existing fence or to an alignment post. |
|
|---|---|---|
|
Side
guide Top
guide |
||
€544.75 including VAT
| C-channel dimensions | Weight |
|---|---|
| 80x80x5 | 116 kg |
Description of Kit for building a cantilever sliding gate with a clear opening width of up to 6.5 m, with a galvanised C-profile and 9 rollers
Component kit for building a cantilever gate in the highest quality with highly reliable load-bearing rollers and a hot-dip galvanized C-profile.
Note: The KIT is more cost-effective than buying the components individually and offers better value. At your request, we can customize the KIT contents and deduct an appropriate discount. If you have a specific request or would like some advice, contact us.
| The kit contains: | SADA-06-ZN-K9 | |||
|---|---|---|---|---|
 |

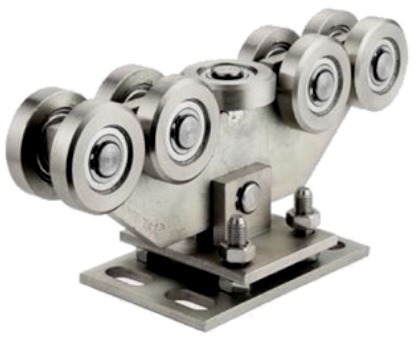

2 × | Trolley with 9 bearing rollers | V-09-1K | |
|
All-metal adjustable pivoting trolley for cantilever sliding gates. Suitable for gates with a clear opening of up to 6.5 m and a maximum weight of 420 kg. The trolley is supplied with a mounting plate included in the price. |
Detail  |
|||
 |
6+3 m | Hot-dip galvanized C-profile | CP-ZN-80 | |
|
Thick-walled, hot-dip galvanized C-shaped guide profile welded to the underside of the gate, allowing it to run on trolleys anchored in the concrete foundation. Finish: hot-dip galvanized C-profiles can be joined by welding. |
Detail |
|||
 |
1 × | Bottom catcher | SN-1-80 | |
|
The lead-in roller is fitted to the end of the C-profile and engages with the bottom catch mounted on the receiving post, relieving the gate when closed. |
Detail |
|||
 |
1 × | Bottom catch | DK-1-80 | |
|
Catch plate fitted at the bottom of the receiving post. It relieves the compressive and tensile forces acting on the trolleys when the gate is closed. |
Detail |
|||
 |
1 × | Gate guide | ||
|
Gate guide for vertical stabilization of the gate in the transverse direction. Choose either a top-mounted guide (1 × VVR-2-G) or a side-mounted guide (2 × BR-43G). |
Side-mounted Top-mounted |
|||
 |
1 × | Metal C-profile cap | SK-1-80 | |
|
The sliding gate C-profile cap is fitted at the beginning and, if required, at the end of the guide C-profile. It slides into the C-profile and is secured in place with a pressure plate. |
Detail |
|||
