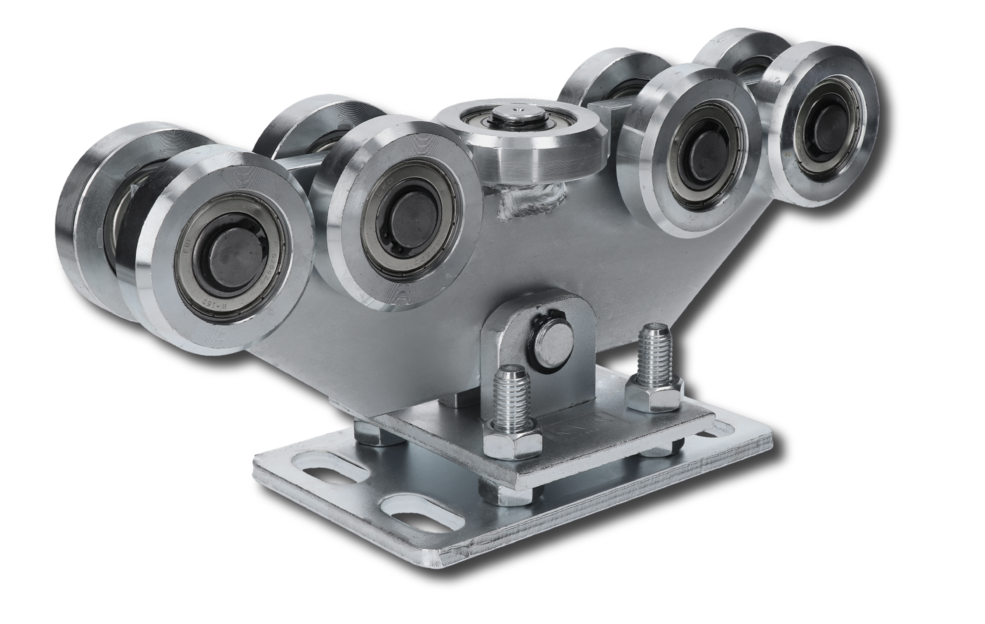

All-metal adjustable swing trolley, 9 rollers, with mounting plate
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€82.06 including VAT
| Weight |
|---|
| 9,00 kg |
Description of All-metal adjustable swing trolley, 9 rollers, with mounting plate
All-steel adjustable pivoting carriage for cantilever sliding gates. Suitable for gates with a clear opening width of up to 6.5 m and a maximum weight of 420 kg. The carriage is supplied with a mounting plate included in the price.
- Variant V-09-1K fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN
The option of adjusting the carriage allows you to fine-tune the gate's alignment and ensure smooth operation, including in relation to the terrain or the slope of the driveway.
The carriage's pivoting action ensures the gate's weight and pressure are evenly distributed across all the carriage's bearing rollers throughout its movement.
All discounted cantilever gate kits.

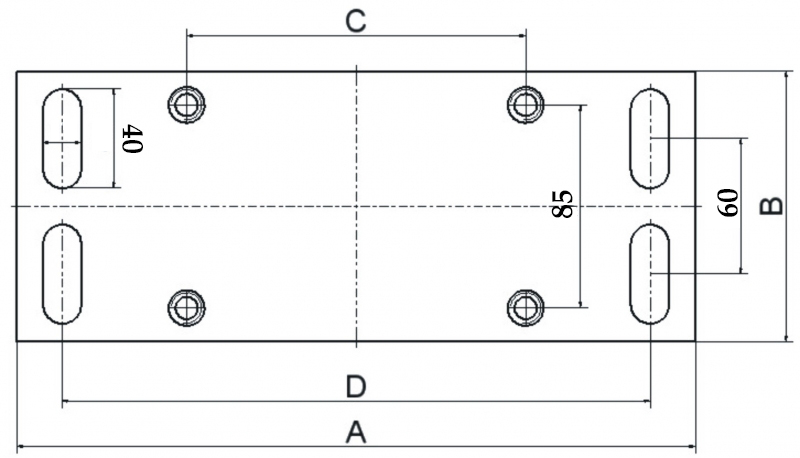

Carriage mounting plate dimensions
| A[mm] | B[mm] | C[mm] | D[mm] | Overall carriage length, including bearings[mm] |
|---|---|---|---|---|
| 180 | 120 | 70 | 140 | 356 |
 |
||||
Anchoring the support carriages of a cantilever gate:
The support carriages can be anchored:
- to threaded rods which you cast directly into the foundation
- to threaded rods chemically bonded into an existing, cured concrete foundation
- to hammer-in anchors into an existing, cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 18mm, and they are anchored using M16. All methods are suitable; it depends on which one you have more experience with.

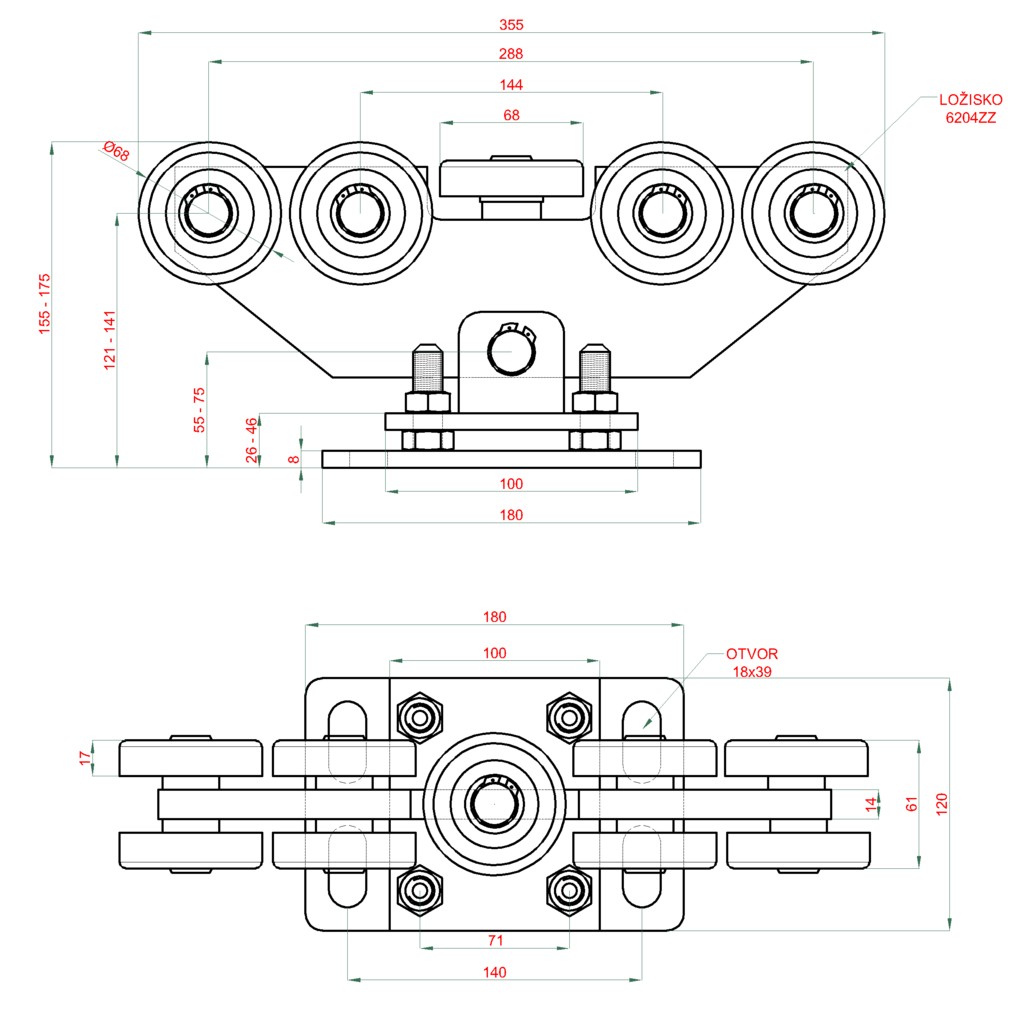

Drawing of the 80×80×5 carriage:
360° :
