Kit for building a cantilever sliding gate up to 6.5 m, INOX/ZN 76x76x3
INOX Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Kit for building a cantilever sliding gate up to 6.5 m, INOX/ZN 76x76x3 | ||
| Roller type: |
You can choose the rollers nylon or metal. Nylon rollers allow the gate to carry a heavy load, prevent wear on the C-profile and ensure quiet gate operation. |
|
|---|---|---|
|
Nylon
rollers Metal
rollers |
||
| Guide type: |
Top guide Use it if the infill of your gate (e.g. wooden slats, Lexan, expanded metal) does not extend above the gate. Anchor it to the existing fence or to an adjustment post. |
|
|
Side
guide Top
guide |
||
€1,175.01 including VAT
| C-channel dimensions | Weight |
|---|---|
| 76x76x3 | 66 kg |
Description of Kit for building a cantilever sliding gate up to 6.5 m, INOX/ZN 76x76x3
All components except the C-profile are made of galvanized steel. The C-profile is stainless steel (INOX).
Note: The SET is priced more favorably than the individual components.. At your request, we can adjust the contents of the SET and deduct an appropriate discount. If you have a specific request or would like advice, contact us.
| The set contains: | SADA-34 | |||
|---|---|---|---|---|
 |
6 +3 m | Stainless steel C-profile 76x76x3mm | CP-INOX-76 | |
|
A stainless steel C-shaped guide profile welded to the underside of the gate, allowing it to run on carriages anchored in a concrete foundation. C-profiles can be joined by welding. |
Detail  |
|||
 |

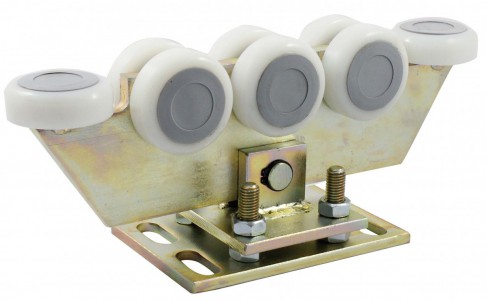

2 × | Carriage with eight bearing rollers | V-07-1 | |
|
The carriage is made of galvanized steel and fitted with eight nylon bearing rollers. |
Detail |
|||
 |
1 × | Galvanized bottom guide roller | SN-1-80 | |
|
The guide wheel is fitted at the start of the C-profile and runs into the bottom catch mounted on the gate post, relieving the gate when it is closed. |
Detail |
|||
 |
1 × | Bottom catch made of galvanized steel | DK-1-80 | |
|
End catch mounted at the bottom of the gate post. It relieves the carriages of compressive and tensile forces when the gate is closed. |
Detail |
|||
 |
1 × | C-profile end cap | SK-1-80 | |
|
The end cap for a sliding gate C-profile is fitted at the beginning and, if needed, at the end of the guide C-profile. It slides into the C-profile and is secured to it with a pressure plate tightened using two screws. |
Detail |
|||
 |
1 × | Gate guide | ||
|
Gate guide for vertical stabilization of the gate in the transverse direction. You can choose an upper (1 × VVR-2-G), or side guide (2 × BR-43G). |
Side Top |
|||
