INOX Trolley for a stainless steel sliding gate, with 5 rollers for 68x68x3 C-profile
INOX| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€497.61 including VAT
| A [mm] |
B [mm] |
C [mm] |
Ød [mm] |
E [mm] |
F [mm] |
G [mm] |
H [mm] |
With [mm] |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| 180 | 150 | 135 | 59,5 | 125 | 100 | 100 | 100 | 15 | 5,70 kg |

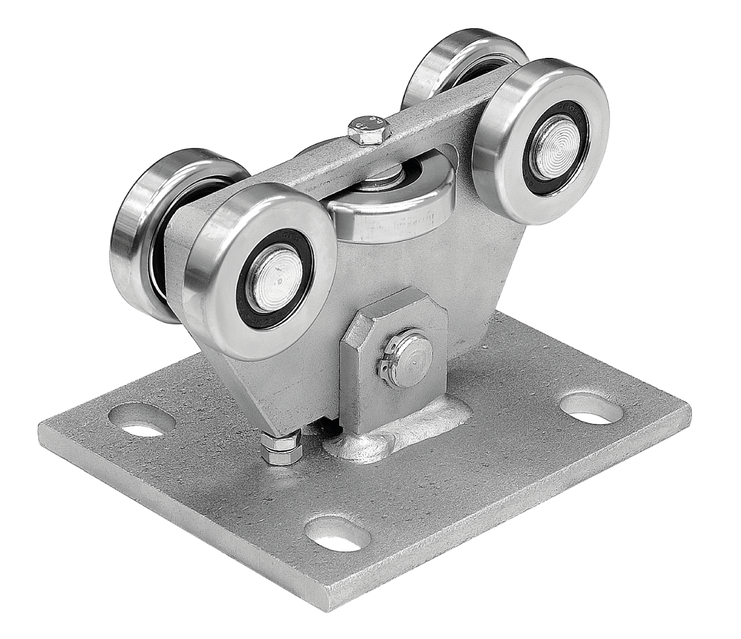

Description of INOX Trolley for a stainless steel sliding gate, with 5 rollers for 68x68x3 C-profile
Stainless steel carriage with five bearing rollers for cantilever sliding gates with a passage width of up to 4.5 m and a weight of up to 200 kg.
- Variant C395IX-1P fits INOX 68x68x3mm C-profile.
The carriage's pivoting action ensures the gate's weight/pressure is evenly distributed across all the carriage bearing rollers at every point during gate movement. The carriage has an M8 nut for adjusting the pivot.
Option to buy carriages at a discounted A set of components for making a cantilever gate. All discounted sets for cantilever gates.
Dimensions of carriage holes and bolts
| Code | For C-profile | Mounting holes | Bolts | Adjusting screw |
|---|---|---|---|---|
| C395IX-1P |
68x68x3 | 4 pcs. 18×25 | not | M8 |
ANCHORING THE SUPPORT CARRIAGES OF A CANTILEVER GATE:
The support carriages can be anchored:
- to threaded rods which you cast directly into the foundation
- to threaded rods chemically bonded into an already cured concrete foundation
- to hammer-in anchors into an already cured concrete foundation
The mounting plate holes have a narrowest dimension of 18mm, and are anchored using M16. All methods are suitable; it depends on which one you have had the best experience with.

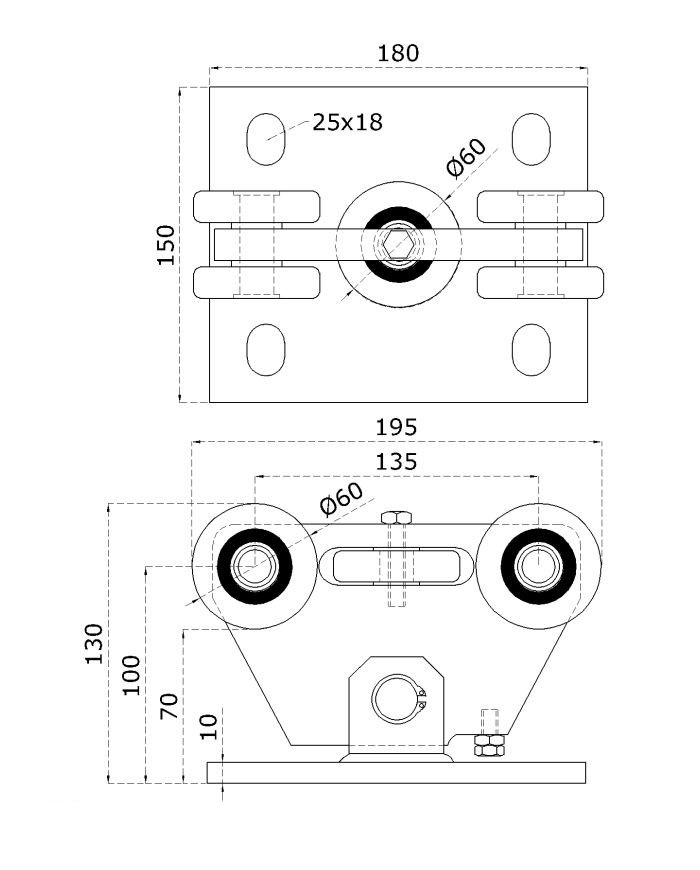

Drawing of carriage C395IX-1P:
360°:
