Kit for a cantilever sliding gate up to 4.5 m / 150 kg, AL 95x100
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€713.36 including VAT
| Weight |
|---|
| 54 kg |
Description of Kit for a cantilever sliding gate up to 4.5 m / 150 kg, AL 95x100
Aluminium sliding gate kit for a clear opening width of 4.5 m or a gate leaf weight of up to 150 kg.
| The kit includes: | KIT- | ||
|---|---|---|---|
 |

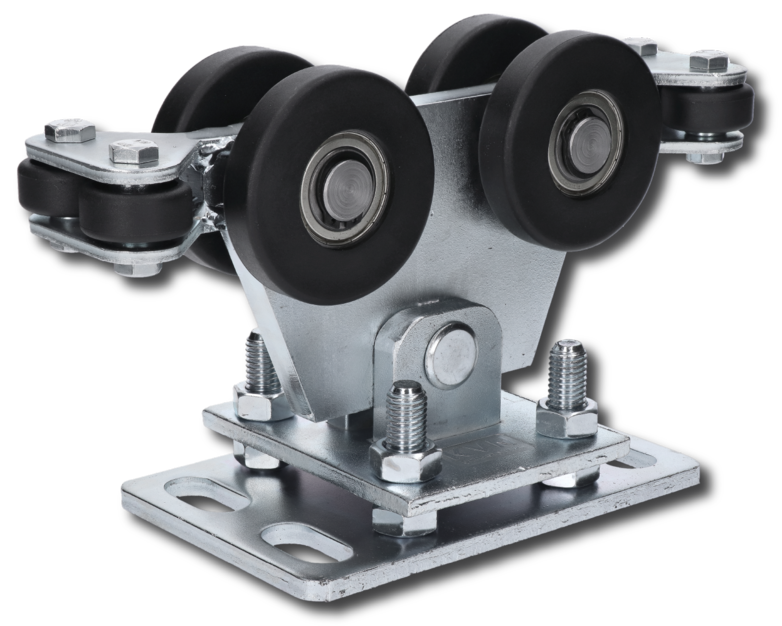

2 × | V-19-1 | |
|
Trolley made of galvanized steel with eight nylon rollers fitted with bearings. |
Detail  |
||
 |

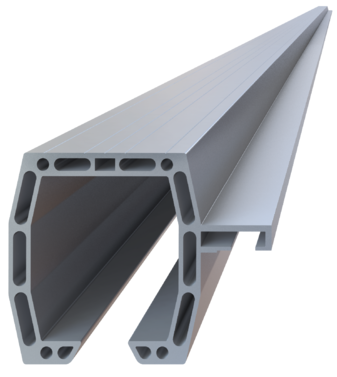

6 m | CP-AL-95x100-6 | |
|
C-shaped aluminium guide profile welded to the underside of the gate, allowing it to run on trolleys anchored in a concrete foundation. |
Detail |
||
 |

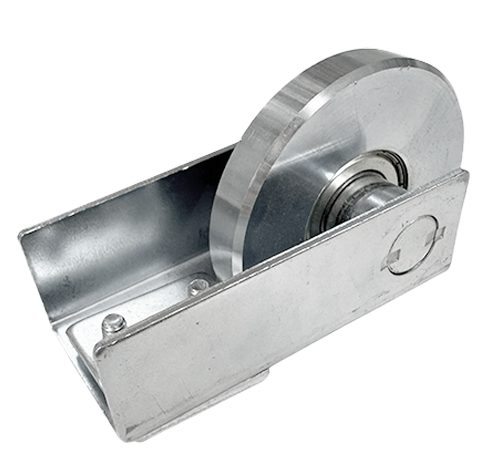

1 × | Galvanized bottom guide roller | SN-1-100 |
|
The guide roller is fitted to the end of the C-section and runs into the bottom catch mounted on the closing post, relieving the gate when closed. |
Detail |
||
 |

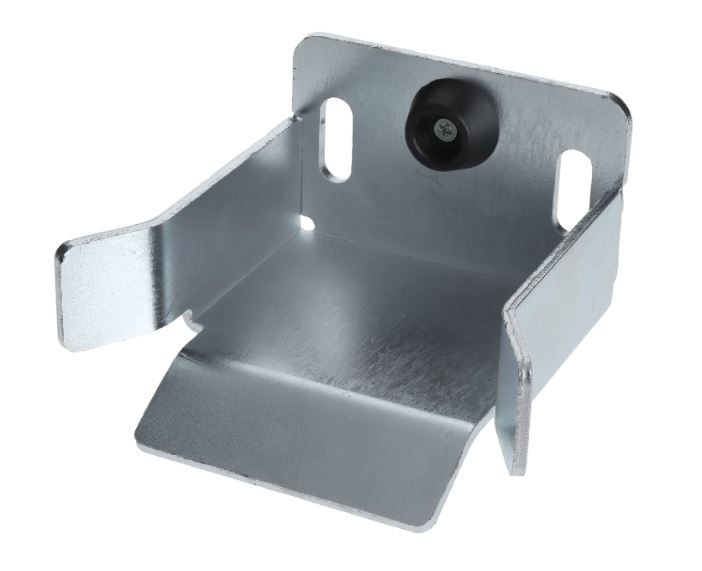

1 × | DK-1-95 | |
|
The catch is mounted at the bottom of the closing post. It relieves the compressive and tensile forces acting on the trolleys when the gate is closed. |
Detail |
||
 |

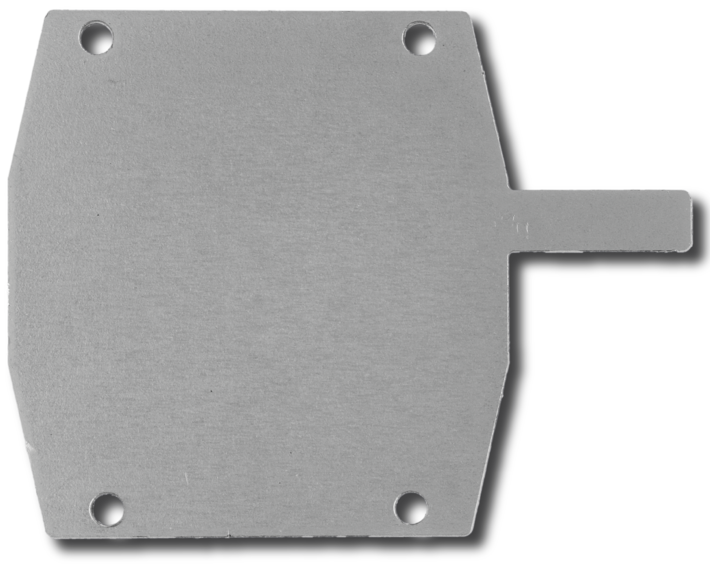

2 × | C-section end cap | SK-1-100 |
|
The end cap for the sliding gate C-section is fitted to one or both ends of the guide profile. |
Detail |
||
 |

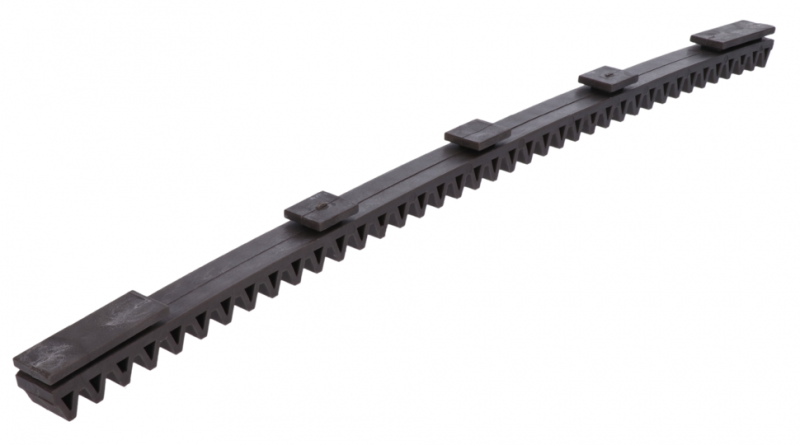

12 × | LZ-18 | |
|
The nylon toothed rack acts as a track for the gate. |
Detail |
||
 |
1 × | Nylon rack stop | DH-1 |
|
Stop for toothed rack LZ-21 |
Detail |
||
- Only the only trolley designed for this aluminium C-section will fit.
- Aluminium C-sections can be joined using stainless steel pins inserted into the pre-drilled holes.
- The aluminium C-section can also be fastened to the gate frame using screws and rivet nuts:
- At the end of the C-section, you can slide on a guide roller and close off the profile with an end cap.. The aluminium C-section can then run into the bottom catch..
- A groove for the toothed rack, protrudes from the side of the C-section; the rack slides into it and is secured at the end with stops.
The aluminium C-section is supplied with a closed groove, which you can easily knock open using a piece of wood and a small hammer. This gives the profile greater structural strength during transport and also helps keep dirt out.
