C-profile 95x100mm – natural aluminium, unfinished
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
CP-AL-95x100-1
in stock
in stock
€80.00 excluding VAT
€98.40 including VAT
€98.40 including VAT
| Length [m] | Weight |
|---|---|
| 1 m | 5,69 kg |
CP-AL-95x100-2
in stock
in stock
€180.27 excluding VAT
€221.73 including VAT
€221.73 including VAT
| Length [m] | Weight |
|---|---|
| 2 m | 11 kg |
CP-AL-95x100-3
in stock
in stock
€258.49 excluding VAT
€317.95 including VAT
€317.95 including VAT
| Length [m] | Weight |
|---|---|
| 3 m | 17 kg |
CP-AL-95x100-6
in stock
in stock
€526.86 excluding VAT
€648.04 including VAT
€648.04 including VAT
| Length [m] | Weight |
|---|---|
| 6 m | 34 kg |
Description of C-profile 95x100mm – natural aluminium, unfinished
Bottom guide aluminum C-profile with a cross-section measuring 95×100 (W×H) and a wall thickness of 11 mm is used as a structural profile for an aluminum cantilever sliding gate.
- Only a carriage designed for this aluminum C-profile fits the profile.

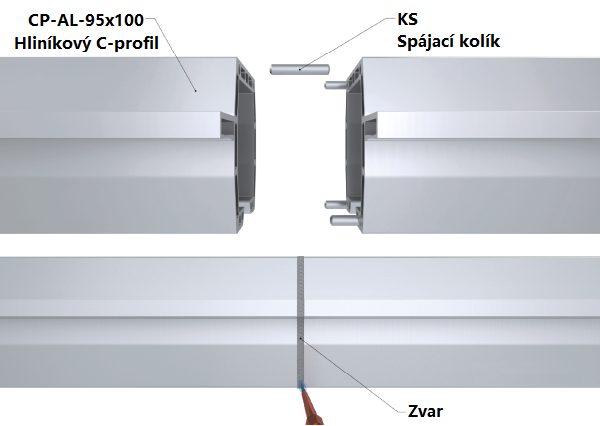

- Aluminum C-profiles can be joined using stainless steel pins.

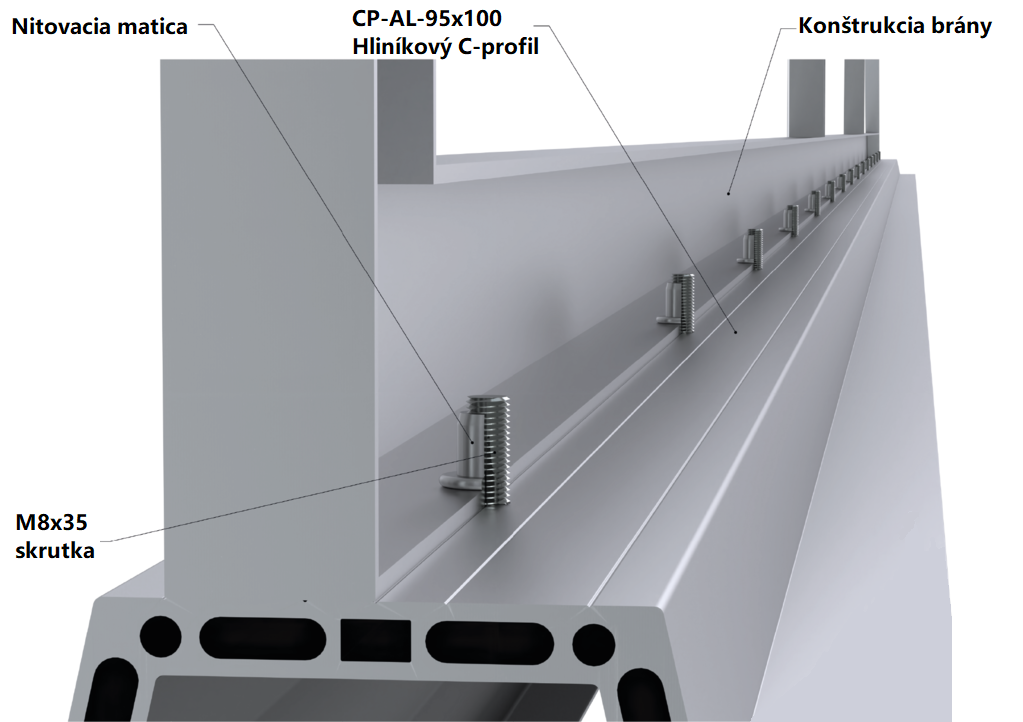

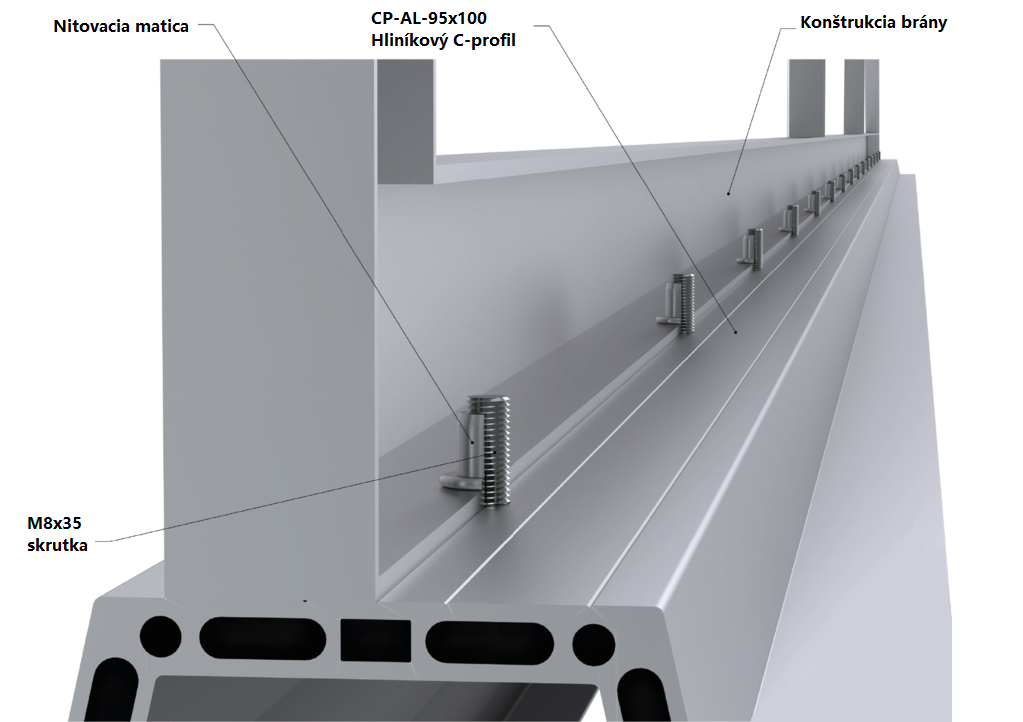

- The aluminum C-profile can also be attached to the gate structure using screws and rivet nuts:
- At the end of the C-profile, it is possible to slide on an end ramp and close off the profile with an end cap. The aluminum C-profile can then run into the bottom stop.

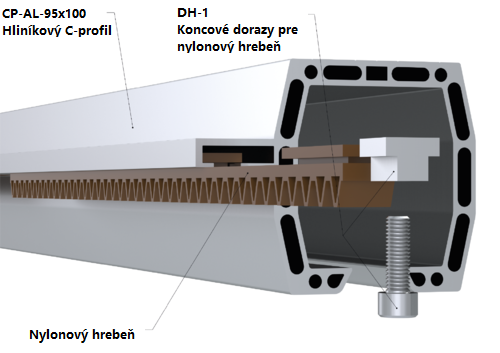

- A groove protrudes from the side of the C-profile for the toothed rack, which slides into it and is secured at the end using stops.
Aluminum C-profile is supplied with a closed groove, which you can simply tap open using a small piece of wood and a hammer. This gives the profile better structural strength during transport and also helps keep dirt out.
