GSM key with alarm, number of users 6/20, 1 output, 2 inputs, iQGSM-R2
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€129.87 including VAT
| Number of users | Weight |
|---|---|
| 6 | 0,24 kg |
in stock
€139.99 including VAT
| Number of users | Weight |
|---|---|
| 20 | 0,24 kg |
Description of GSM key with alarm, number of users 6/20, 1 output, 2 inputs, iQGSM-R2
iQGSM-R2 GSM module is designed for remotely controlling devices by calling them from a mobile phone at no charge. The iQGSM-R2 also features an alarm function.. The alarm keeps you informed, and you can check the gate’s status remotely at any time.. The output relay contact can be used to control a garage door, driveway gates, barriers, etc.
Easy installation with no complicated setup, USB cable connections, driver or software installation, or app required.
How does a GSM key work?
As you approach the gate, call the GSM key from your mobile phone. It recognizes the caller’s number and carries out the command—opening or closing the gate. You can choose whether the GSM key can be controlled only by phone numbers stored in the device’s memory (high level of security), or by SMS commands with a password (high level of security and an unlimited number of users), or by calling from any number (low level of security and an unlimited number of users).
Number of users: depending on the version ordered: 6 / 20 users:
User capacity: 6 users / 1 output
User capacity: 20 users / 1 output
Three steps to get started quickly:
• connect four wires (two for power, two for control)
• insert the SIM card
• save users’ phone numbers either by calling the device free of charge or remotely using SMS commands
100% successful connection to drives from various manufacturers (Key Automation, Nice).
If you install the iQGSM-R2 in a metal enclosure or in an area with a weaker signal, we recommend purchasing an external antenna (ANT1, ANT2), or, if installing it in a plastic enclosure, boosting the signal with a flat adhesive antenna.
Very low power consumption; powered directly from the drive (connect to the 24V terminals).
Alarm function:
The alarm can also be used with manually operated gates that have no drive.. In this case, it can be powered using an adapter. The control and alarm functions are separate and can operate independently.
The sensor detects whether the gate is open or closed. If the gate remains open longer than the time you set (adjustable from 1s to 24h), the owner receives an alarm call notifying them of a fault, failure to close, or intrusion.
After connecting the GSM key to your drive, mount a limit switch on the gate and connect it to the iQGSM-R2 using a two-wire cable. Only switch contacts may be connected to inputs IN1 and IN2, which are intended for connecting limit switches and sensors (not for supplying voltage). Limit switches are not included. The switch marked PH-42 is a waterproof magnetic switch with a robust metal housing for outdoor use. For the alarm function to work correctly, you must use this switch or another magnetic contact.
Example of using inputs IN1 and IN2 with gates:
Connect a magnetic contact to the gate that is closed when the gate is shut, then connect it to input IN1. Next, set the time allowed for the gate to close (and the magnetic contact to close). If the contact does not close within the selected time, the GSM module will alert you with a call. Input IN2 acts more as protection against unauthorized gate opening. If you call the GSM module, IN2 is deactivated. Even if the magnetic contact is open, the GSM module will not notify you. However, if the contact opens without a call being made, the GSM module will notify you that the contact has opened.
| Control by calling or using SMS commands | definitively switch on / switch off |
|---|---|
| Alarm function | connection for a potential-free contact |
| Alarm timer: 1s to 24h | if the gate does not close within this time, you will receive an alarm call |
| Timer adjustable from 1s to 24h | the relay opens after this time |
| Supply voltage | 10 - 30V AC / DC |
| Current consumption | at rest, max. 20mA; during transmission, max. 200mA to 1A (very brief peaks) |
| Outputs | relay contact, max. load 30V / 1A |
| Dimensions | 66 x 60mm, height 21mm (measured without antenna) |
| Number of users | 6 or 20 |
| GSM band | 4 band (850/900/1800 and 1900MHz) / max. output 2W |
| SIM card | standard, any operator |
| Terminal block type | screw terminals, 3.8mm pitch, removable, wire cross-section 0.35-1.5mm2 |
| Protection | overvoltage, overcurrent and overtemperature protection, ESD protection; power supply polarity does not matter |
| Operating temperature | -20 to +50 ° C |
| IP rating | IP50 |

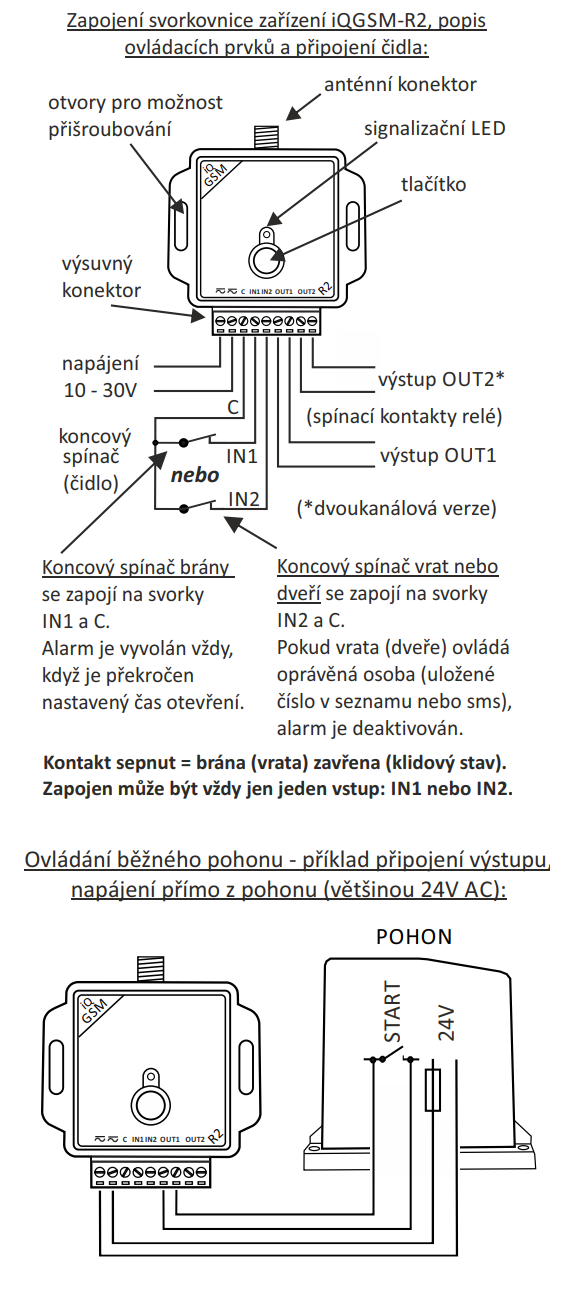

How to connect to the drive:
Example of using the GSM alarm with a sliding gate drive and a magnetic switch:
 |
 |
Can also be used with a LOCINOX magnetic switch.
Example of using the GSM alarm with a garage door drive and a magnetic switch:
|
Can also be used with a LOCINOX magnetic switch. |
