GSM key, number of users 10/100/1000, 1 output, iQGSM-R1
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€113.69 including VAT
| Number of users | Weight |
|---|---|
| 10 | 0,24 kg |
in stock
€262.57 including VAT
| Number of users | Weight |
|---|---|
| 1000 | 0,24 kg |
Description of GSM key, number of users 10/100/1000, 1 output, iQGSM-R1
iQGSM-R1 GSM module is designed for remote control by free missed call from a mobile phone.
No complicated setup, USB cable connections, driver or software installation, or app installation is required. The device can be used to control a garage door, entrance gate, barrier, roller shutters, boiler, pump, heating system, and other equipment.
How does the GSM key work?
When you approach the gate, give the GSM key a missed call from your mobile phone. The GSM key recognizes the number and carries out the command—it opens the gate (or closes it). You can choose whether the relay can be controlled only by phone numbers stored in the device's memory (high level of security), or by SMS commands with a password (high level of security and an unlimited number of users), or by calling from any number (low level of security and an unlimited number of users).
Number of users: depending on the version ordered: 10 / 100 / 1000 users
Capacity: 10 users is usually more than sufficient for an average family or a small business.
Capacity: 100 users is suitable for medium-sized businesses, guesthouses, and organizations.
Capacity: 1000 users is suitable for larger businesses, apartment buildings for opening entrance doors, hotels, large holiday resorts, and organizations.
Three steps to get up and running quickly:
• connect four wires (two power wires and two control wires)
• insert a SIM card
• add users' numbers with a free missed call (or by SMS commands)
100% success rate when connecting to drives from various manufacturers (Nice, Key Automation, CAME, Liftmaster, Hörmann, and others).
If you install the iQGSM-R1 in a metal enclosure or in an area with a weaker GSM signal, we recommend purchasing an external antenna (ANT1, ANT2), while in a plastic enclosure, the signal can be boosted with an adhesive antenna. The GSM key has very low current consumption and is powered directly by the drive (connect it to the 24V terminals).
Technical specifications:
| Control by missed call and SMS commands | set definitively to ON / OFF |
|---|---|
| Timer range: 1s to 24h | after this period, the relay opens, or the relay can remain continuously closed / open |
| Supply voltage | 10 - 30V AC / DC |
| Current consumption | at rest, max. 20mA; during transmission, max. 200mA to 1A (very brief peaks) |
| Output | relay contact, max. load 30V / 1A |
| Dimensions | 66 x 60mm, height 21mm (measured without antenna) |
| Number of users | depending on the version: 10 / 100 / 1000 |
| GSM band | 4-band (850/900/1800 and 1900MHz) / max. power 2W |
| SIM card | standard, any operator |
| Terminal block type | screw terminals, 3.8mm pitch, removable, wire cross-section 0.35-1.5mm2 |
| Protection | overvoltage, overcurrent and thermal protection, ESD protection; power supply polarity does not matter |
| Operating temperature | -20 to +50 °C |
| IP rating | IP50 |

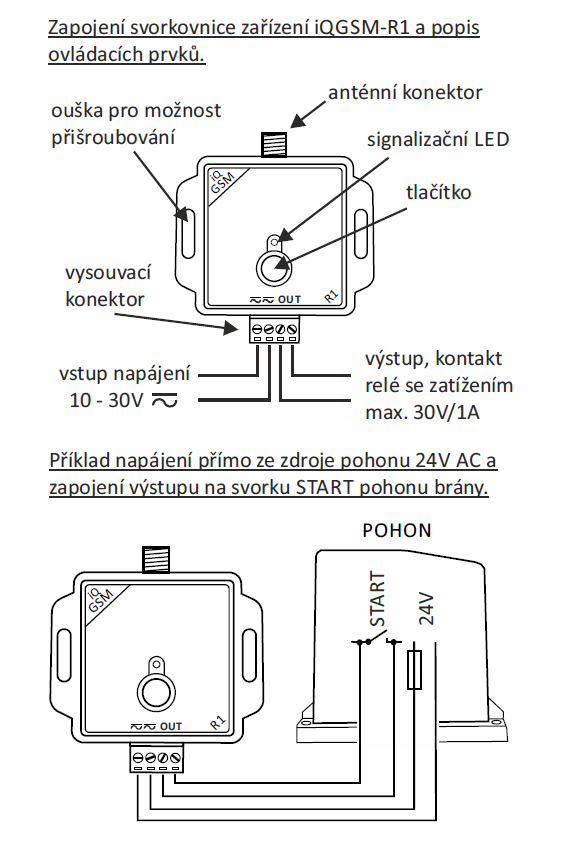

Wiring method for the drive:
