Aluminium fence slat, 160 × 16 mm, rectangular with grooves
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
within 3 days
€158.22 including VAT
| Length [m] | Weight |
|---|---|
| 6m +/- 5mm | 11 kg |
within 3 days
€79.10 including VAT
| Length [m] | Weight |
|---|---|
| 3m +/- 5mm | 5,55 kg |
in stock
€52.75 including VAT
| Length [m] | Weight |
|---|---|
| 2m +/- 5mm | 3,70 kg |
Description of Aluminium fence slat, 160 × 16 mm, rectangular with grooves
Aluminium slat, can be used as infill for a fence, gate, or any other space. The slat has a rectangular shape with grooves, with a height of 160 mm, a width of 16 mm and is supplied in lengths of 2m, 3m or 6m.
The slat is hollow and has guide grooves on the sides for fixing screws. The simplest installation method is to use fixing profiles with pre-machined grooves for precise pre-drilling and fastening with screws.
The slat is suitable for creating an opaque infill; the grooves allow the slats to interlock. To finish the infill, use an AL-PV16 aluminium slat.
Patterns for the rectangular aluminium slat:

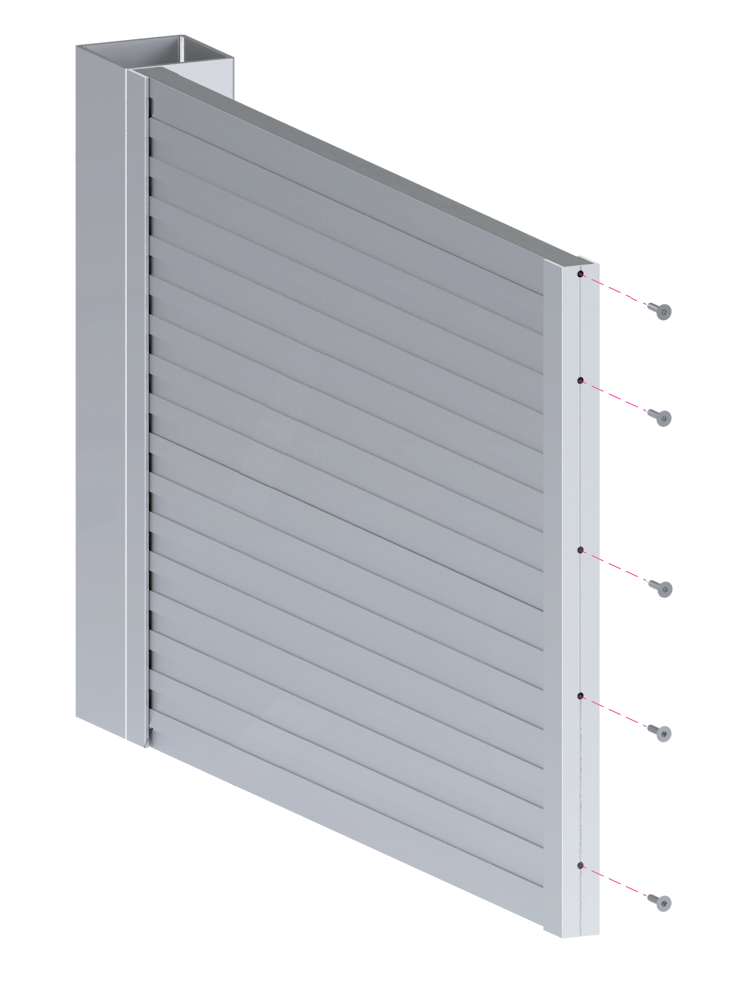

In combination with the fixing profile, you can create a vertical pattern:
- in combination with the fixing profile with a width of 20.5 mm
Installation methods for rectangular aluminium fence slats:

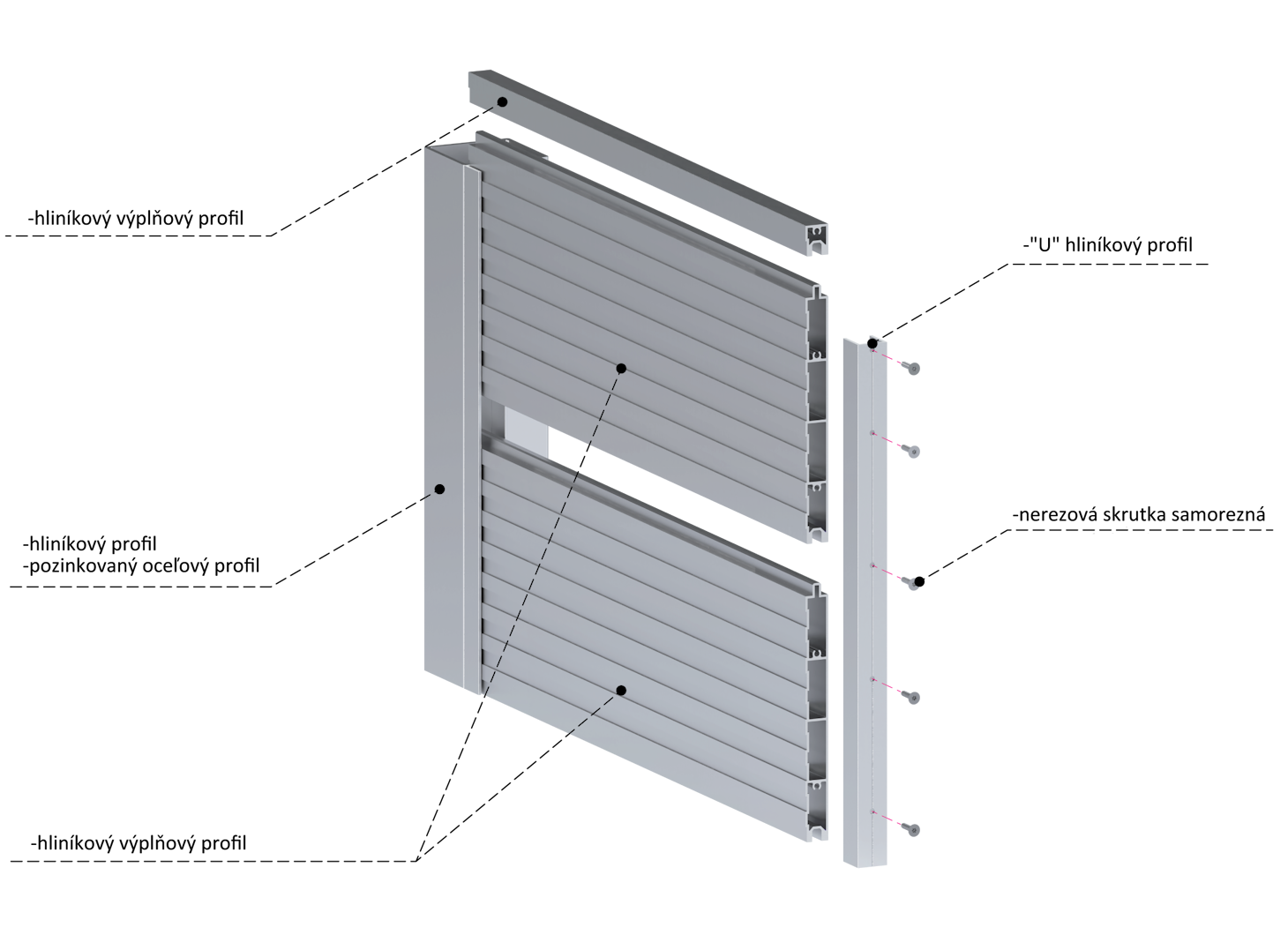

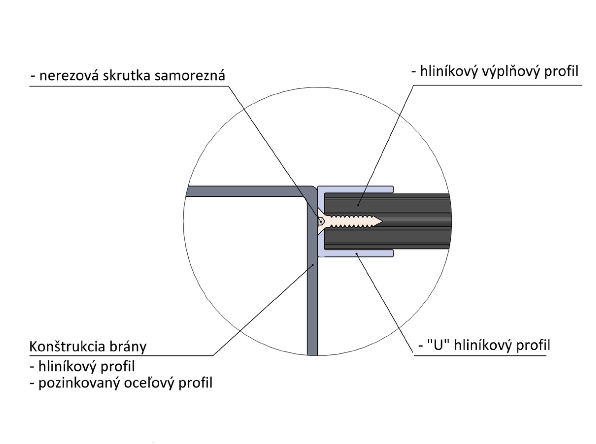

How to fix the slats vertically in a U-profile (20.5 mm wide):
 |
 |

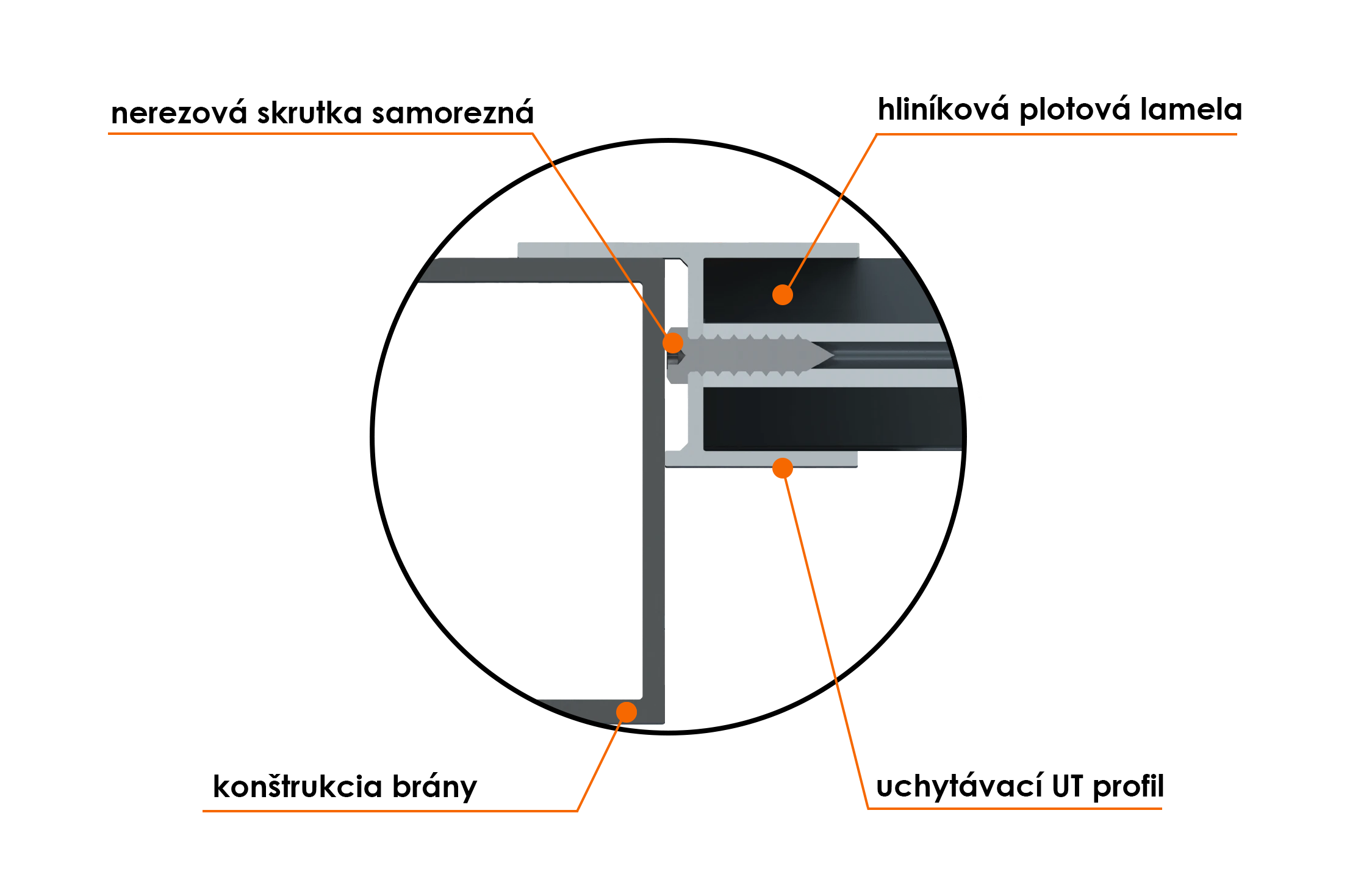

How to fix the slats vertically in a UT-profile (20.5 mm wide):
Surface finish:
Aluminium is generally an excellent material with resistance to corrosion and weathering, and a long service life. The slat is made from EN AW-6060 T66 aluminium and supplied without a surface finish. Before applying paint, if required, thoroughly degrease the aluminium surface and lightly abrade it with fine-grit sandpaper.
Suitable fixing screws:
Screws with countersunk heads, DIN 7982, 3.5x19 mm
Technical specifications of the aluminium slat for gate and fence infill:
Material: natural aluminium (EN AW-6060 T66)
Surface finish: unfinished
Dimensions: 160x16 mm
Length: 2,000 mm, 3,000 mm, 6,000 mm
Weight: 3.70 kg, 5.55 kg, 11.10 kg
How can I order this item?
Choose the option that suits you:
- order online: use the buy button to add the goods to your shopping cart (you will find the buy button here in the product variants table).
- order by email: place your order at [email protected]
