DIY sliding gate project - Trebišov
Components used:
CP-80 (11m) C-profile 80x80x5 mm, Fe
V-15-1 (2x) Adjustable pivoting roller carriage, 10 rollers with mounting plate B
SN-1-80 Bottom guide ramp
DK-1-90 Closing pocket – bottom stop
VVR-2-G Top guide, 4 rollers
ZC-19 Square end cap

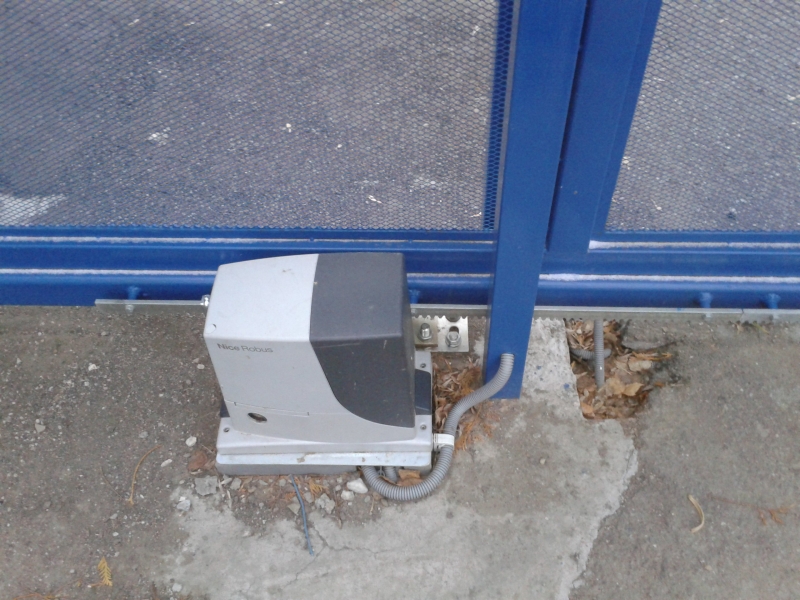

NICE-RB1000-KIT Sliding gate operator kit for up to 1000kg/12m, NICE Robus RB1000
LZ-3-1 (8m) Steel toothed rack, 30x8mm

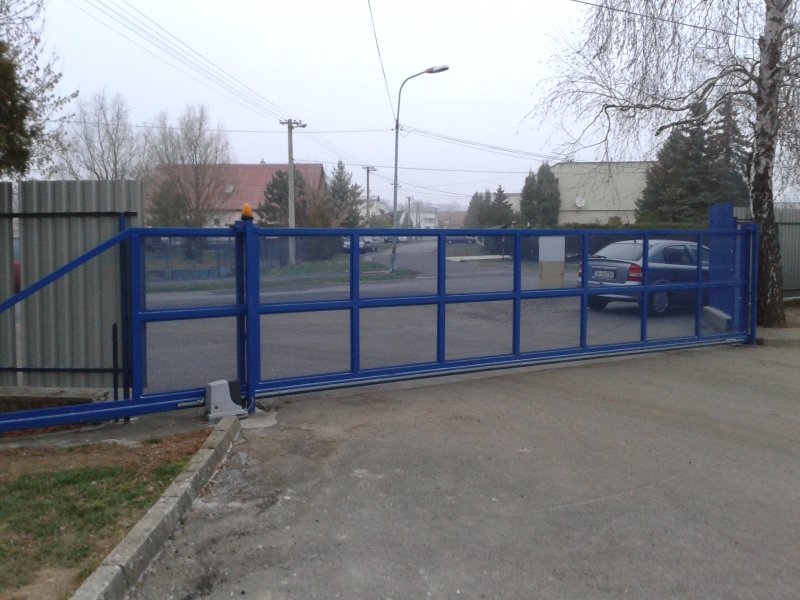

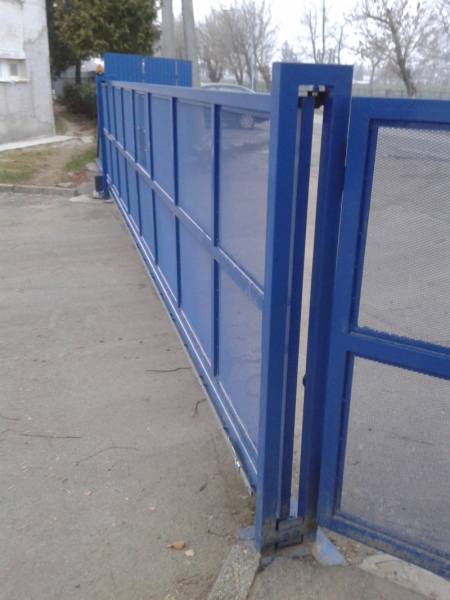

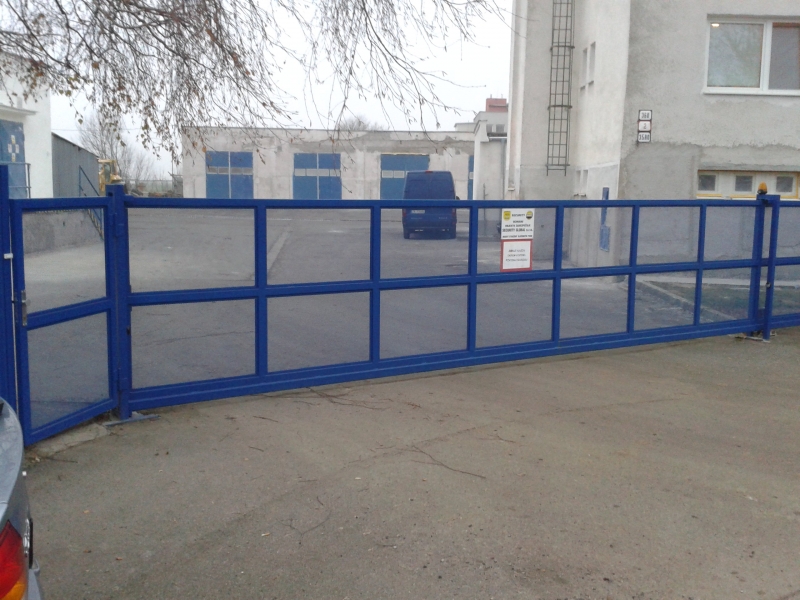

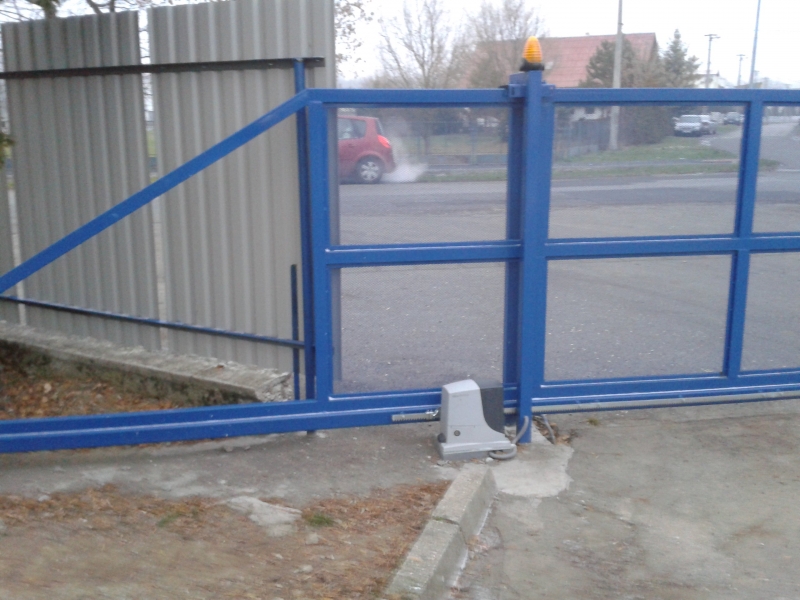

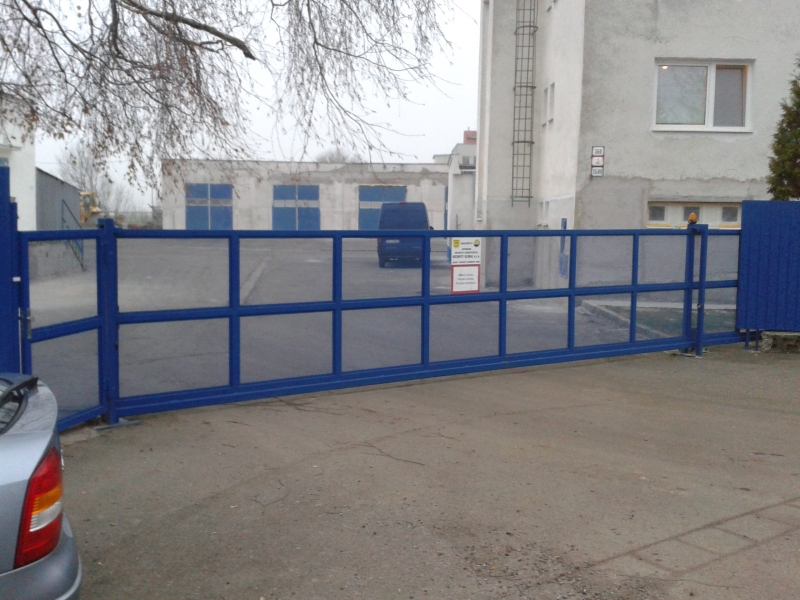

A cantilever sliding gate with a 7.5m clear opening, automated with a NICE Robus 1000 operator featuring BlueBUS technology. The steel toothed rack is welded to the C-profile. The gate structure is welded from thin-walled box-section profiles so that its weight does not exceed 300 kg (290 kg including the C-profile).
