Adjustable swing trolley, 10 rollers, with mounting plate B
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
| Available variant types for this product Adjustable swing trolley, 10 rollers, with mounting plate B | ||
| Roller type: |
You can choose the rollers nylon or metal. Nylon rollers allow the gate to carry a heavy load, prevent wear on the C-profile and ensure quiet gate operation. |
|
|---|---|---|
|
Nylon
rollers Metal
rollers |
||
€124.75 including VAT
| A [mm] |
B [mm] |
C [mm] |
Hmin [mm] |
Hmax [mm] |
Weight |
|---|---|---|---|---|---|
| 80 | 80 | 5 | 93 | 109 | 13 kg |
Description of Adjustable swing trolley, 10 rollers, with mounting plate B

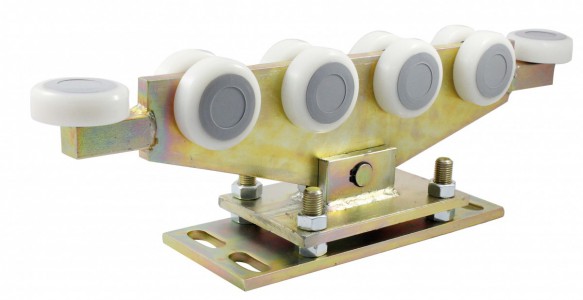

Adjustable articulated carriage for oversized sliding gates. Suitable for gates with a clear opening width of 7.5 m to 12 m. It can also be used for gates with a clear opening width of up to 7.5 m that weigh more than 600 kg. The carriage is supplied with a mounting plate included in the price.
- The V-15-1 carriage fits C-profile 80x80x5 mm FE and C-profile 80x80x5 mm ZN as well as C-profile 76x76x3 mm INOX (nylon rollers only)
The option to adjust the carriage allows you to fine-tune the gate's angle and ensure smooth operation (also to account for the terrain or the slope across the opening).
The carriage's articulation evenly distributes the gate's weight/pressure across all the bearing rollers on the carriages at every point during gate movement.
For your project, you can choose a version with nylon or metal rollers (only with the version for C-profile 80x80x5). For quiet gate operation, we recommend the version with nylon rollers.
All discounted kits for cantilever gates.

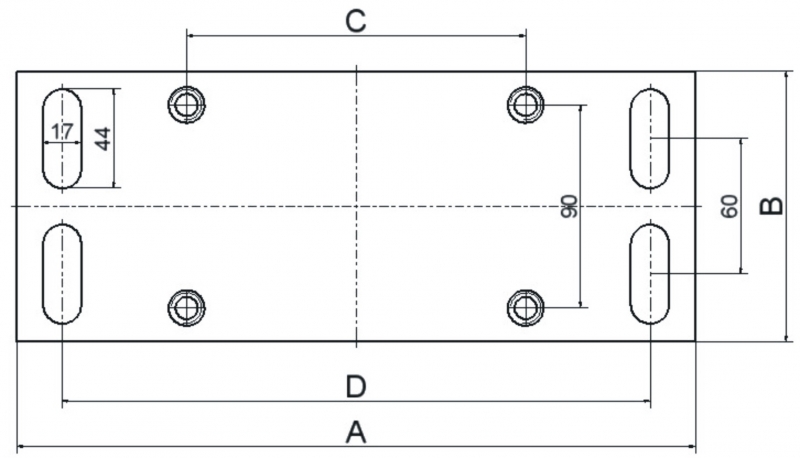

Carriage mounting plate dimensions
| A[mm] | B[mm] | C[mm] | D[mm] | Overall carriage length, including bearings[mm] |
|---|---|---|---|---|
| 300 | 120 | 150 | 250 | 575 |
 |
||||
Anchoring the support carriages for a cantilever gate:
The support carriages can be anchored:
- to threaded rods that you cast directly into the foundation
- to threaded rods chemically bonded into an existing, cured concrete foundation
- to hammer-in anchors in an existing, cured concrete foundation
The narrowest dimension of the holes in the mounting plates is 17mm, and they are anchored using M16. All methods are suitable; it depends on which one you have more experience with.

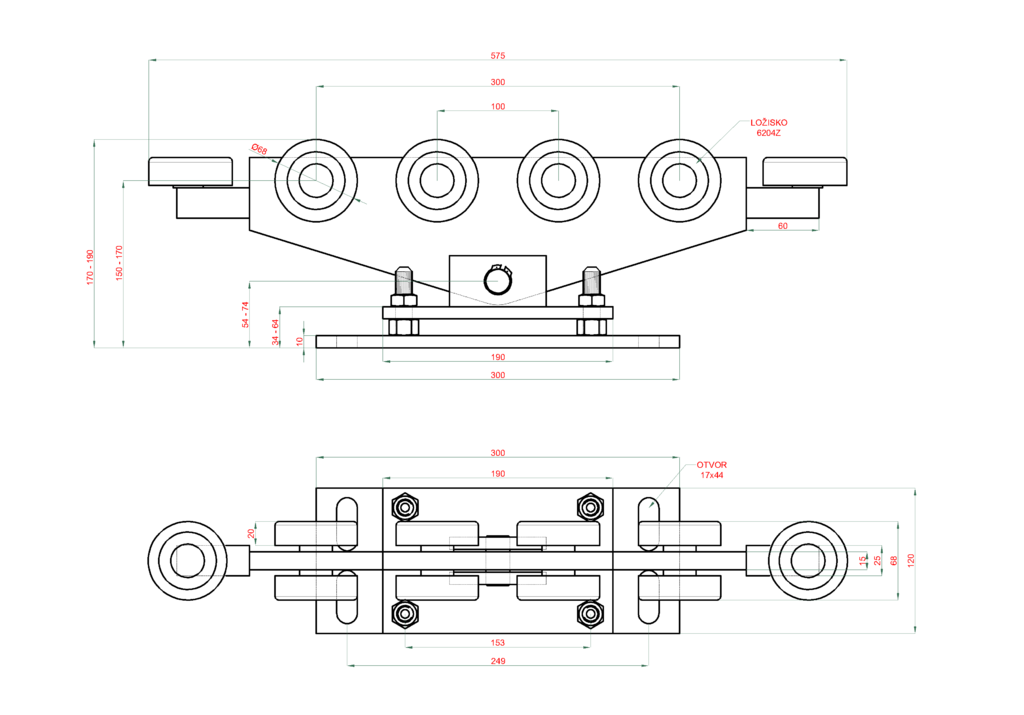

Drawing of the 80×80×5 carriage:
360° :
