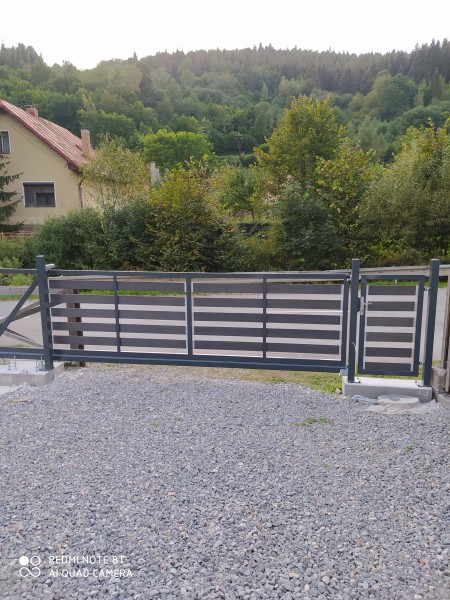

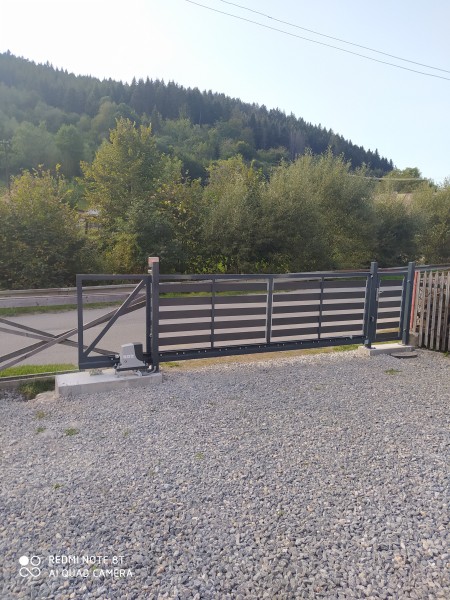

DIY sliding gate - Nesluša
Components used:
6m CP-80 - C-profile 80x80x5 mm, Fe
2x V-07-1 - Tilting trolley with adjustment, 8 nylon rollers with mounting plate
SN-1-80 - Bottom guide roller - galvanized, 80x80
DK-1-80 - End pocket - lower stop
VVR-3-G - Upper guide with two adjustable rubber-coated rollers
SK-1-80 - C-profile end cap for cantilever gate - galvanized, 80x80

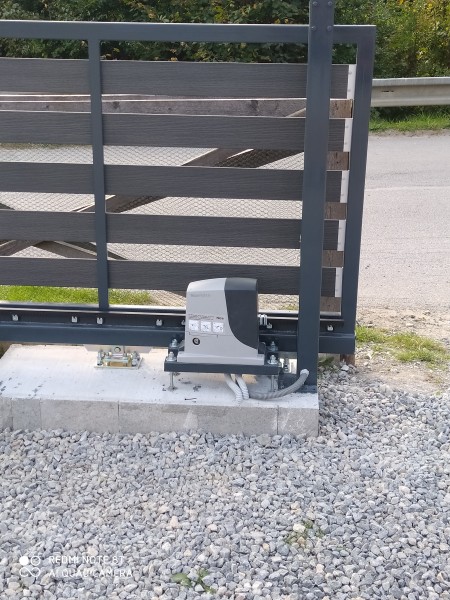

NICE-RB600-D - Drive kit for sliding gates up to 600 kg/8 m NICE Robus RB600 (D)
5m LZ-1-1 - Plastic-coated toothed rack 30x20mm, with 12x12mm steel core, M4
18m JOKL-60x40x2 - 60x40x2 box section, black
6m JOKL-80x40x2 - 80x40x2 box section, black
6m JOKL-40x20x2 - 40x20x2 box section, black
6m JOKL-80x80x3 - 80x80x3 box section, black
3x ZC-19 - Square end cap
3x PLS-07 - Universal plate with holes, 150x150mm, 10mm thick
2x P376-18 - Adjustable weld-on hinge with sleeve
ZZ-03 - Gate lock with square faceplate for 35mm recess, ZZ-03
KLN-74 - Straight, sharp-edged handle in brushed stainless steel with square rosette
KLN-S2 - Square rosette for euro-profile cylinder in brushed stainless steel
