Set for a cantilever sliding gate with a clear opening width over 8.5 m, C-profile 140x140x6mm, galvanized, 9-wheel carriages
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
In stock
€2,130.78 including VAT
| C-channel dimensions | Design | Weight |
|---|---|---|
| 140×140×6 | Galvanized C-profile | 383 kg |
Description of Set for a cantilever sliding gate with a clear opening width over 8.5 m, C-profile 140x140x6mm, galvanized, 9-wheel carriages
Note: The SET is more cost-effective than the individual components The set is discounted. On request, we can adjust the contents of the SET and deduct an appropriate discount. If you have a specific request or would like some advice, contact us.
| The set contains: | SADAG-9ZN | ||
|---|---|---|---|
 |
2 × | Trolley with nine bearing rollers | C9999-3G |
|
Trolley made of galvanized steel with nine bearing rollers. |
Detail  |
||
 |

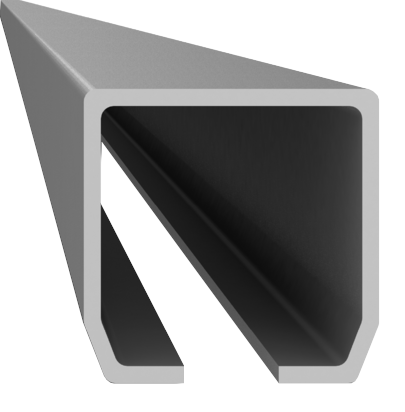

2×6 m | Hot-dip galvanized C-profile | CP-ZN-140-6 |
|
A thick-walled C-shaped guide profile welded to the underside of the gate, allowing it to travel on trolleys anchored in a concrete foundation. C-profiles can be joined by welding. |
Detail |
||
 |
2 × | Lower guide roller | SN-1-140 |
|
The guide roller is fitted to the end of the C-profile and runs into the lower stop mounted on the closing post, relieving the gate when closed. |
Detail |
||
 |
2 × | Lower stop | DK-1-140 |
|
A receiver pocket fitted to the bottom of the closing post. It relieves the pushing and pulling forces acting on the trolleys when the gate is closed. |
Detail |
||
PROFILE DIMENSIONS:
