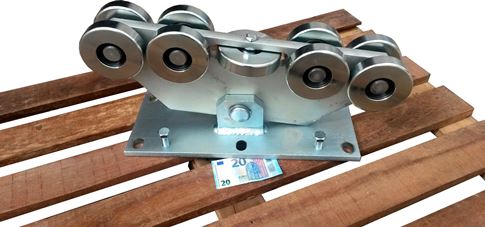

Sliding gate trolley with 9 rollers for C-profile 140x140x6
Zn| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€399.06 including VAT
| Weight |
|---|
| 54 kg |
Description of Sliding gate trolley with 9 rollers for C-profile 140x140x6
All-metal carriage for cantilever sliding gates with a weight of up to 1,500 kg and a passage width of up to 15 m.
- Variant C9999-3G fits C-profile 140x140x6 mm Fe and C-profile 140x140x6 mm Zn.
The option to adjust the carriage allows you to "fine-tune" the gate's angle and therefore its smooth operation (also with regard to the terrain or the slope of the passage).
The carriage's pivoting action ensures the gate's weight/load is distributed evenly across all the carriage's bearing rollers at every point during gate movement.
Option to buy carriages at a discounted Set of discounted components for making a cantilever gate. All discounted kits for cantilever gates.
Carriage hole and bolt dimensions
| Code | Hole dimensions | Bolt dimensions |
|---|---|---|
| C9999-3G | 6 pcs. 22×30 | 4 pcs. M16×35 |

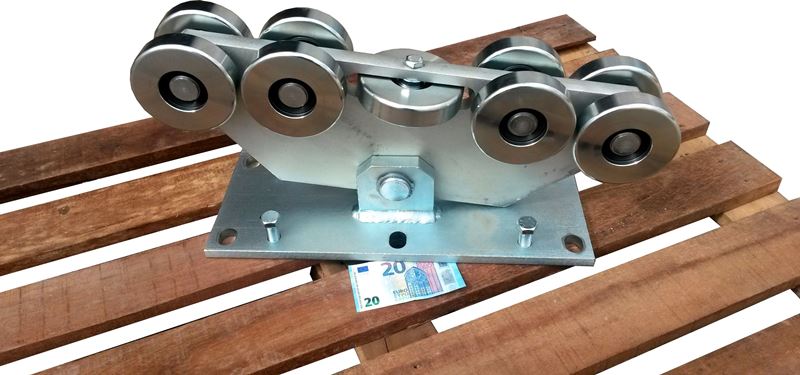

C9999-3G carriage, actual size
ANCHORING THE SUPPORT CARRIAGES OF A CANTILEVER GATE:
The support carriages can be anchored:
- to threaded rods which you cast directly into the foundation
- to threaded rods chemically bonded into an already cured concrete foundation
- to hammer-in anchors into an already cured concrete foundation
The holes in the mounting plates have a minimum width of 22mm, and are anchored using an M20 thread. All methods are valid; it depends on which one you have more experience with.

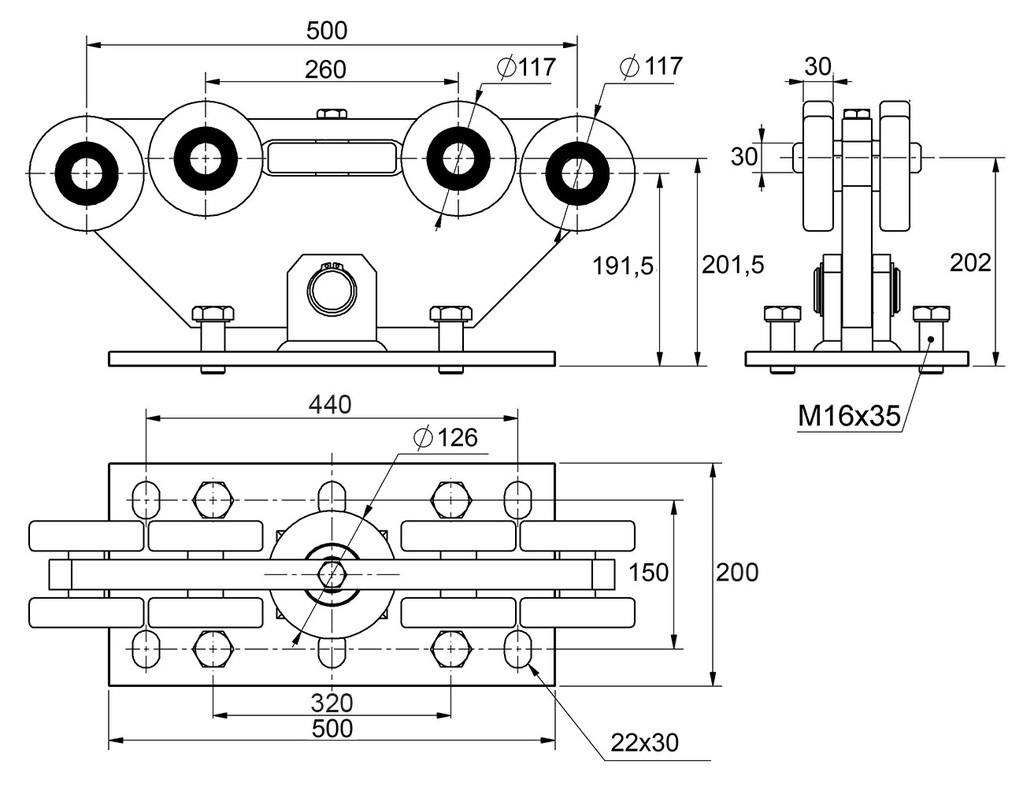

Drawing of carriage C-9999-3G:
360°:
