Kit for a cantilever sliding gate with a passage width over 8.5 m, 140x140x6 mm C-profile, FE, 9-roller carriages
| Product availability: | within 3 days | We usually ship the goods within 3 days. |
|---|
within 3 days
€2,203.33 including VAT
| C-channel dimensions | Design | Weight |
|---|---|---|
| 140×140×6 | Raw steel C-profile | 383 kg |
Description of Kit for a cantilever sliding gate with a passage width over 8.5 m, 140x140x6 mm C-profile, FE, 9-roller carriages
Note: The SET is more cost-effective than purchasing the individual components more cost-effective than purchasing the individual components. If you wish, we can adjust the contents of the SET and deduct an appropriate discount. If you have a specific request or would like some advice, contact us.
| The set contains: | SADAG-9FE | ||
|---|---|---|---|
 |
2 × | Nine-bearing-roller carriage | C9999-3G |
|
Carriage made of galvanized steel with nine bearing rollers. |
Detail  |
||
 |

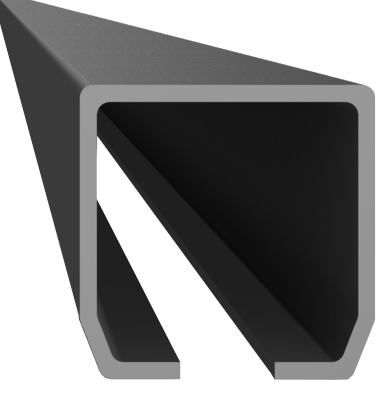

2×6 m | C-profile, unfinished | CP-140-6 |
|
A heavy-gauge C-shaped guide profile welded to the bottom of the gate, allowing the gate to run on carriages anchored in a concrete foundation. C-profiles can be joined by welding. |
Detail |
||
 |
2 × | Bottom guide roller | SN-1-140 |
|
The guide roller is fitted to the end of the C-profile and runs into the bottom catch mounted on the gate stop post, relieving the gate when it is closed. |
Detail |
||
 |

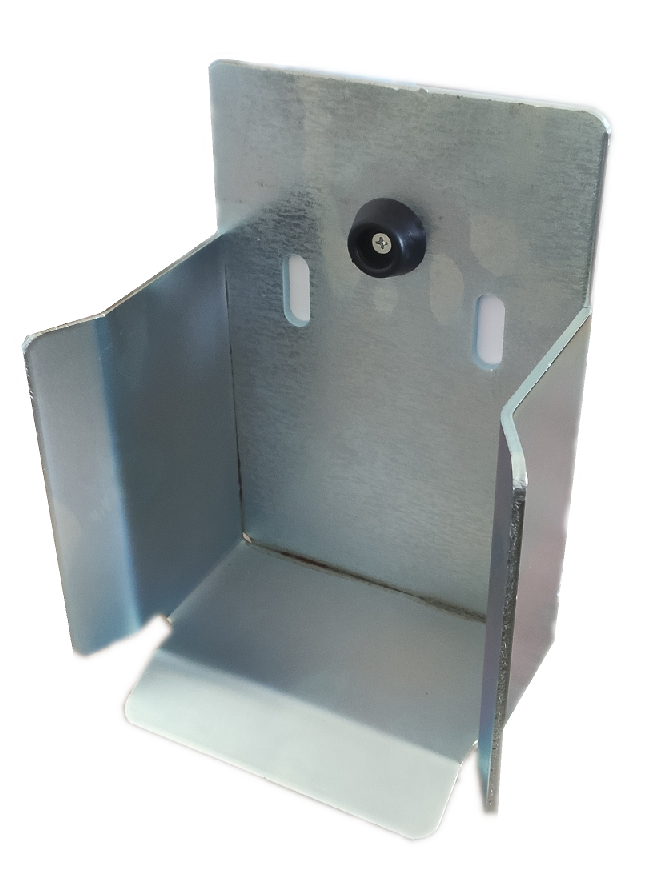

2 × | Bottom catch | DK-1-140 |
|
A receiving pocket fitted at the bottom of the gate stop post. It relieves the compressive and tensile forces acting on the carriages when the gate is closed. |
Detail |
||

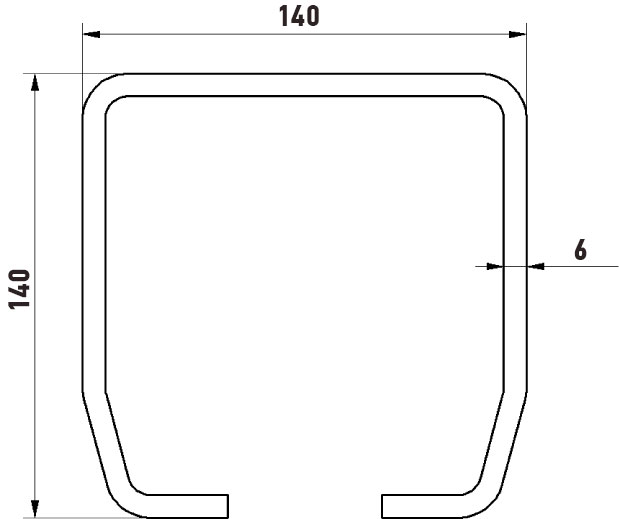

PROFILE DIMENSIONS:
