NICE XBA7 - built-in warning light/automatic lighting for a barrier
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
NICE-XBA7
in stock
in stock
€80.14 excluding VAT
€98.58 including VAT
€98.58 including VAT
| Weight |
|---|
| 0,20 kg |
Description of NICE XBA7 - built-in warning light/automatic lighting for a barrier
NICE XBA7 is an electronic device that uses signaling with white LEDs. It can be used as a warning beacon (orange filters for this purpose are included) or as automatic lighting, depending on the settings of the control unit to which it is connected.
The device is compatible with the control units for NICE S-BAR, NICE M-BAR and NICE L-BAR.
Installing the NICE XBA7 beacon
1. Before installation

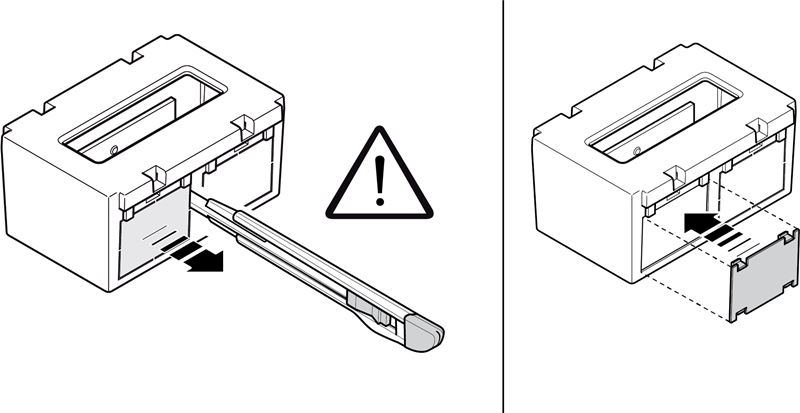

| Make sure the surface is clean; if not, clean it. | To replace the lenses with the orange ones, pry off the cover and fit the lens. Take care not to damage the electronics. |
|---|---|
 |
 |
2. Installation
| Connect the power connector. | Slide the device into the barrier housing. | Tighten using the supplied screws. |
|---|---|---|
 |
 |
 |
3. Electrical connection
Important: All electrical connections and wiring must be carried out with the barrier power supply disconnected.

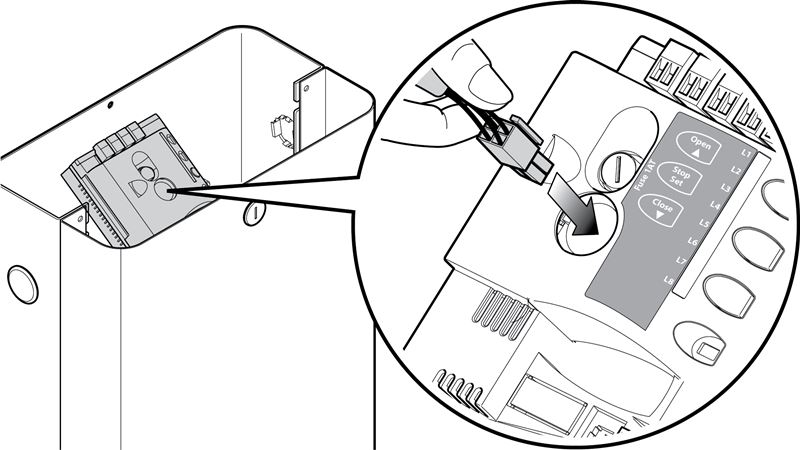

| Connect the connector to the control unit. | Ground the device. | |
|---|---|---|
| For the S-Bar barrier | For the M-Bar and L-Bar barriers | |
 |
 |
 |
Technical specifications of the NICE XBA7 beacon
| Power supply | 24V (13-40V) |
|---|---|
| Current consumption |
|
| LED lifetime | approx. 80,000 hours |
| LED type | 4 × 1 W high-power LEDs |
| Insulation class | III |
| Operating temperature | from -20°C to +50°C |
| Dimensions | 93x64x45 |
| Weight | 105g |
