NICE WIDEL barrier gate – without boom arm
| Product availability: | within 7 days | We usually dispatch goods within 7 days. |
|---|
within 7 days
€1,463.28 including VAT
| Weight |
|---|
| 54 kg |
Description of NICE WIDEL barrier gate – without boom arm
Electromechanical barrier for controlled access by motor vehicles. 24 V DC motor with built-in control unitunit WIA20 R10. Easy balancing using the spring tension adjuster. Universal arm mounting, on the left or right. In the event of a power failure, it can be unlocked with the NICE triangular key or operated using an emergency battery NICE-PS324. Adjustable opening speed. Installation manual for the WIDE barrier.
Technical specifications of the NICE-WIDEL barrier
| ACCESSORIES COMPATIBLE WITH THE NICE WIDE L BARRIER | |||
|---|---|---|---|
 |

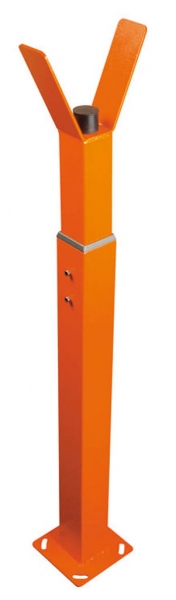

NICE-WA11 barrier support | NICE-WA11 | |
|
Adjustable arm support |
Detail | ||
 |

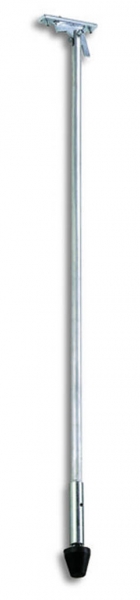

NICE-WA12 mobile arm support | NICE-WA12 | |
|
Reinforced folding mobile arm support |
Detail | ||
 |

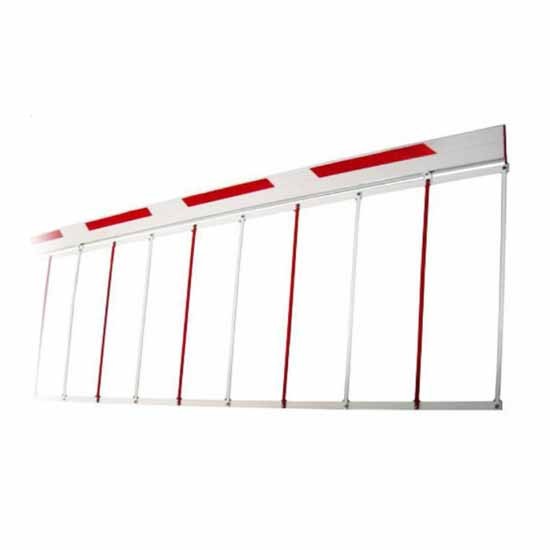

NICE-WA13 aluminium barrier skirt | NICE-WA13 | |
|
2 m aluminium barrier skirt for barrier arms |
Detail | ||
 |

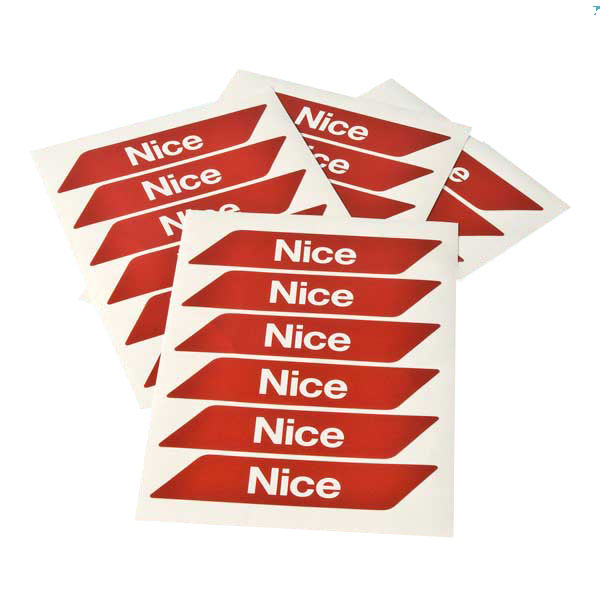

NICE-WA10 reflective stickers | NICE-WA10 | |
|
24 red reflective stickers |
Detail | ||
 |

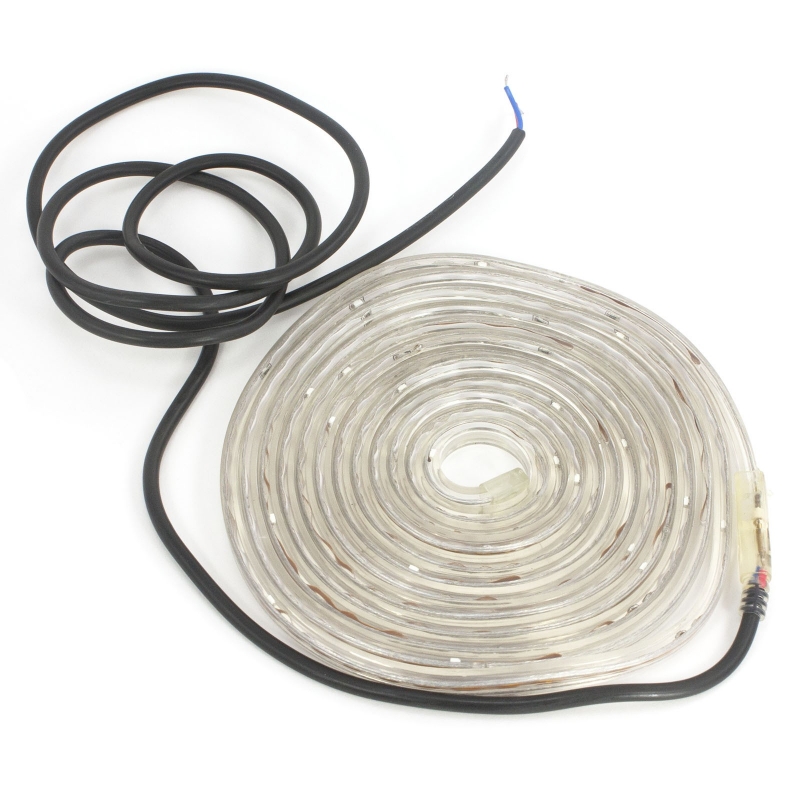

NICE-XBA18 warning light | NICE-XBA18 | |
|
Warning lights that can be fitted along the top or bottom edge of the arm. Length: 8 m. |
Detail | ||
|
NICE-XBA6 | ||
|
Warning lights that can be fitted along the top or bottom edge of the arm. Length: 6 m. |
Detail | ||
 |

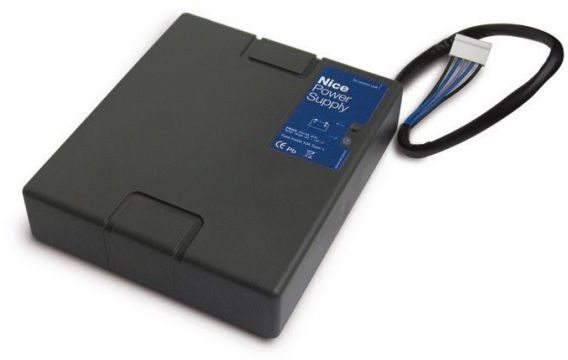

NICE-PS324 backup battery | NICE-PS324 | |
|
24 V battery with built-in charger |
Detail | ||
 |

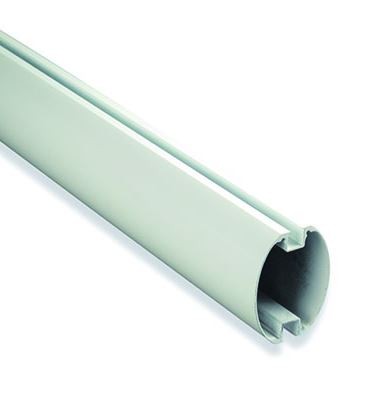

NICE-XBA15 aluminium arm | NICE-XBA15 | |
|
White powder-coated aluminium arm, 69x92x3150mm |
Detail | ||
|
NICE-XBA14 aluminium arm | NICE-XBA14 | |
|
White powder-coated aluminium arm, 69x92x4150mm |
Detail | ||
|
NICE-XBA5 aluminium arm | NICE-XBA5 | |
|
White powder-coated aluminium arm, 69x92x5150mm |
Detail | ||
 |

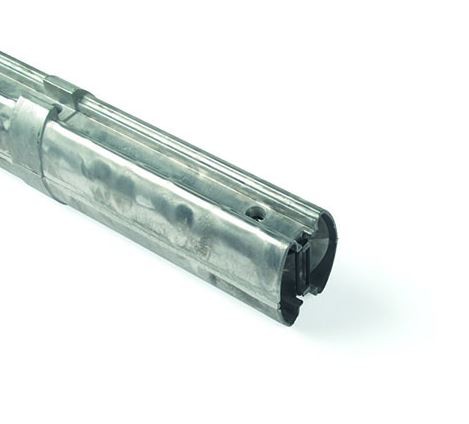

NICE-XBA9 arm connector | NICE-XBA9 | |
|
Arm connector for XBA15, XBA14, XBA5 |
Detail | ||
 |

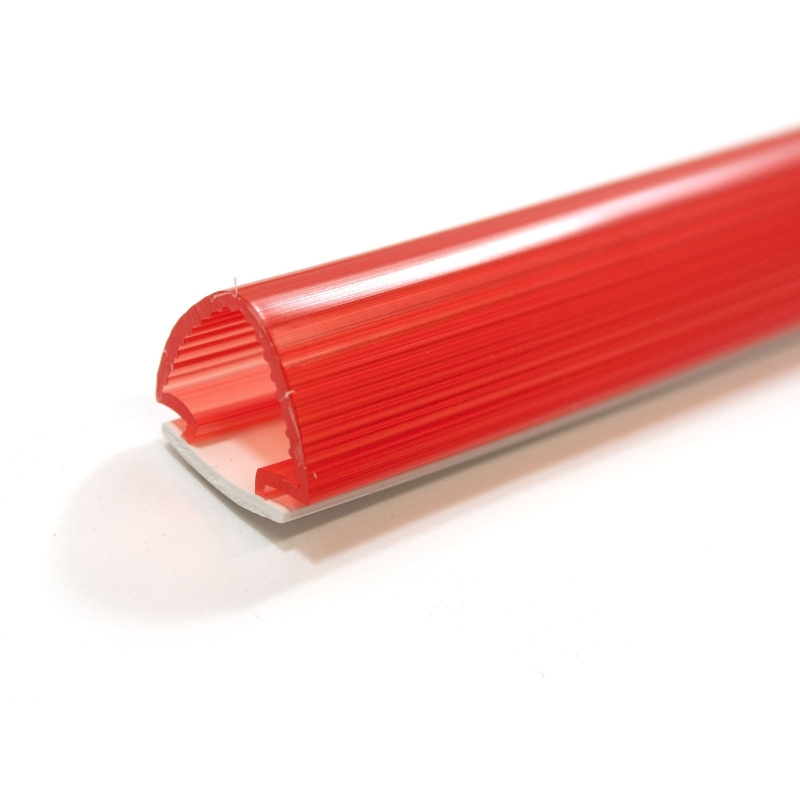

NICE-XBA13 impact-protection rubber strip | NICE-XBA13 | |
|
NICE XBA13 - 9x1m protective impact strip |
Detail | ||
What’s included with the barrier unit?

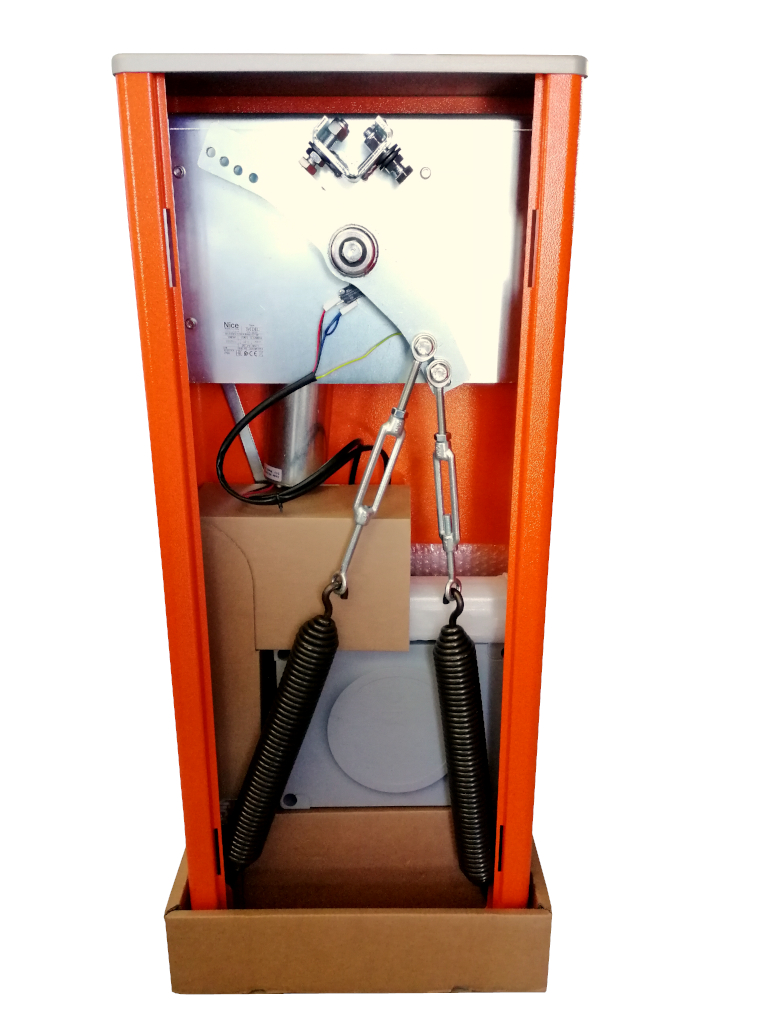

All components of the standalone barrier are housed inside the cabinet, so first remove the top and side covers. Inside, you’ll find the control unit and all the installation accessories listed below. Photos are also provided for each part to give you a clearer idea.
The quickest way to access the components is to remove the spring brackets.

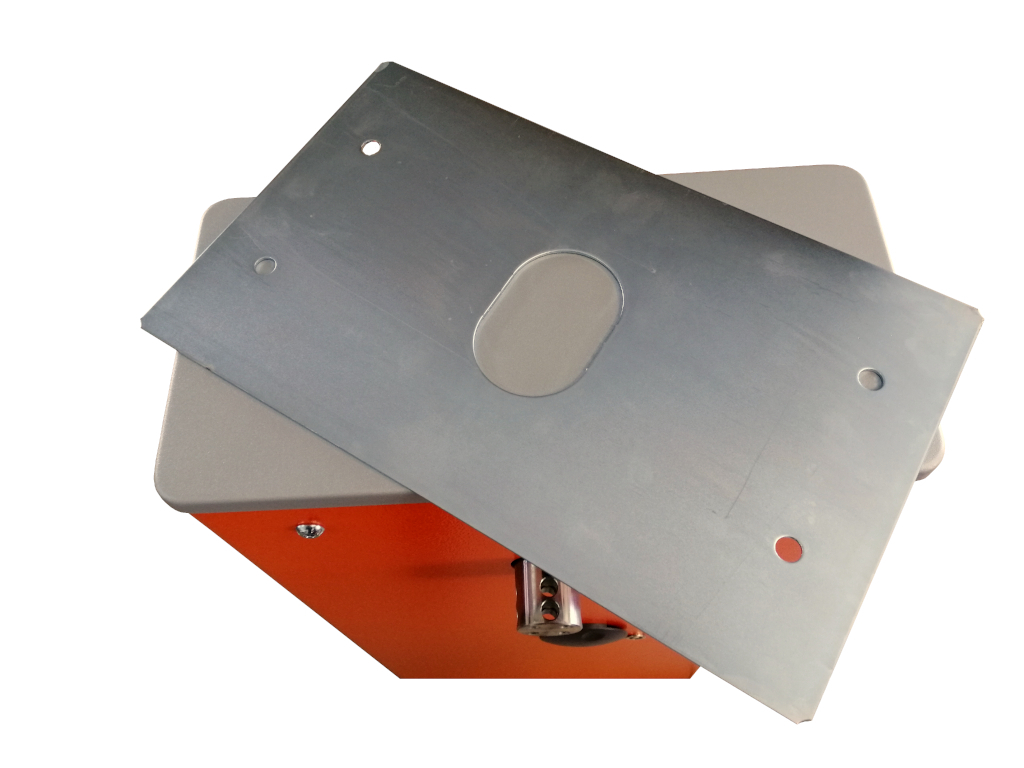

Mounting plate
Mounting plate SIA2 It is stored against the inside wall of the cabinet and wrapped in film. The anchors and screws are in the supplied installation box.

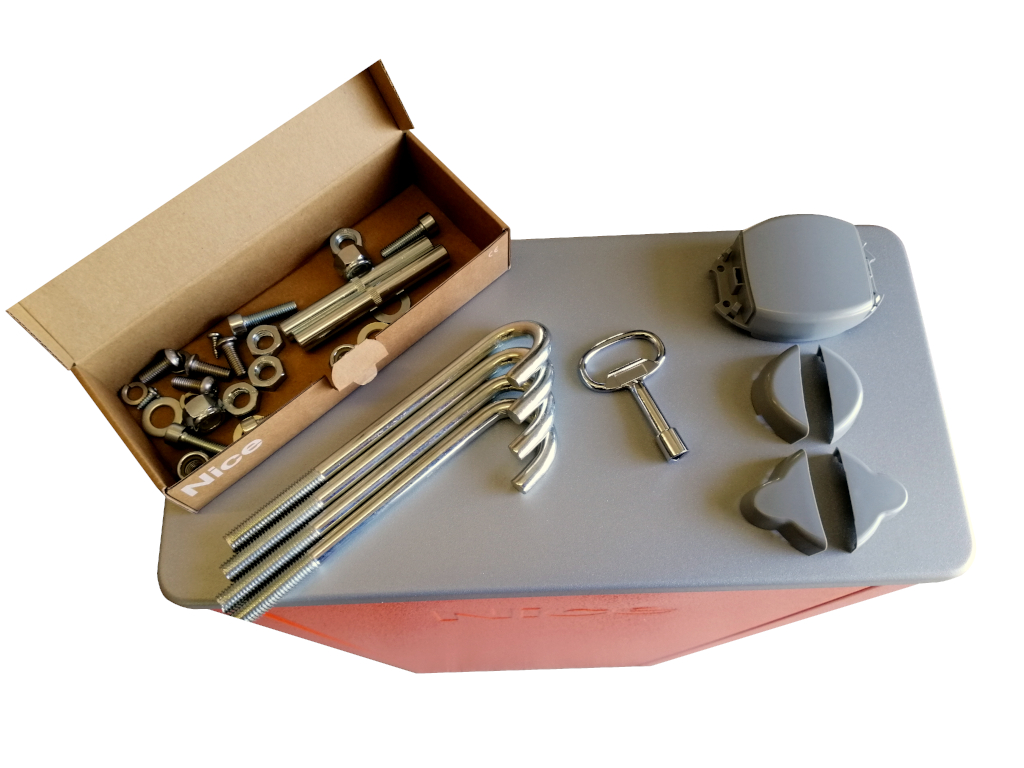

Screws, anchors, release key
In addition to the anchors for the mounting plate, the installation box contains the other required screws, a release key, cross wedges for securing the arm bracket, and end caps for the arm.

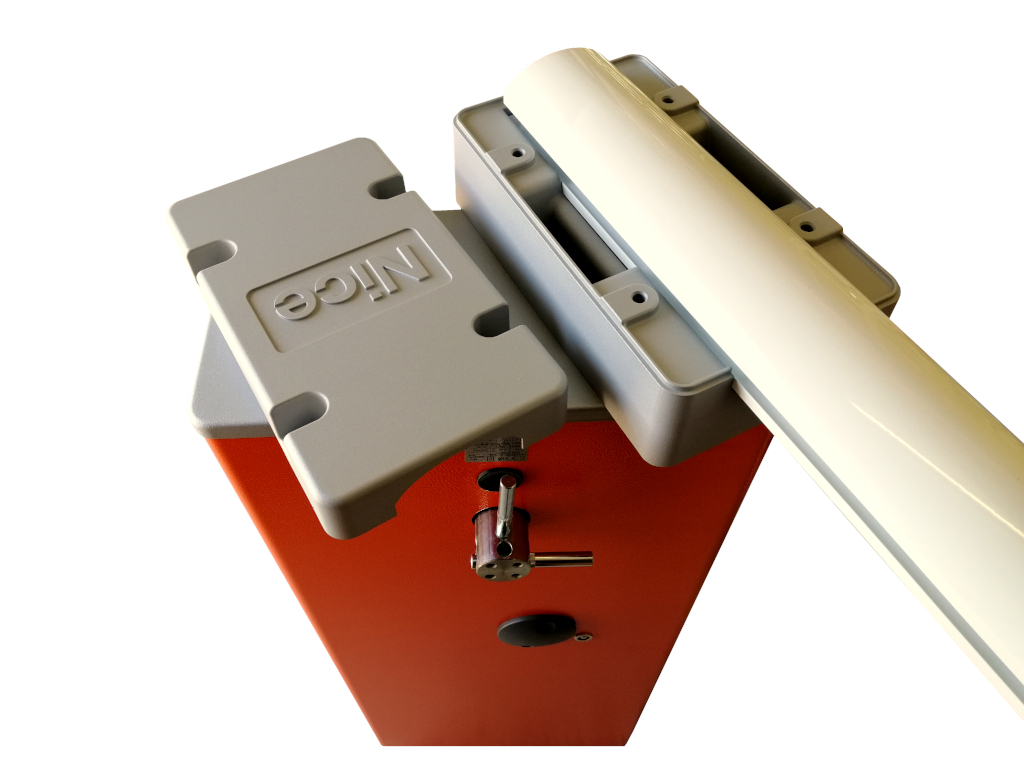

Arm bracket
The bracket consists of two parts: a main piece and a matching piece. The lower part is securely fastened with cross wedges and fixed in place with four screws. Then simply insert the arm (ideally with the reinforcement as well) and screw on the top piece.

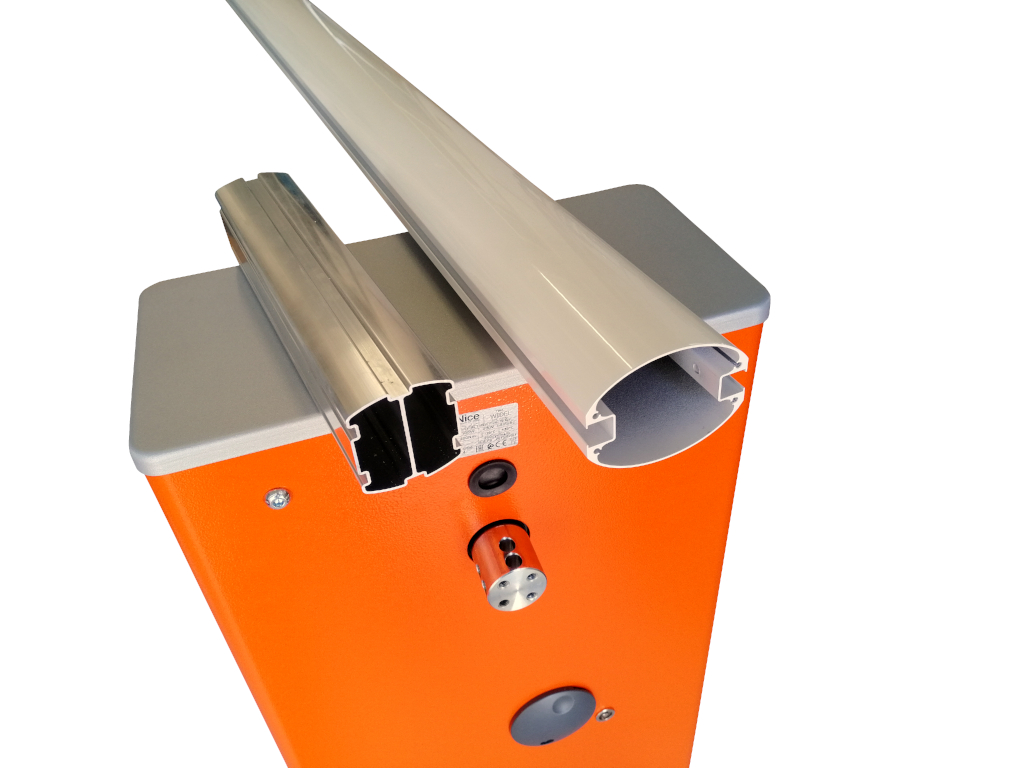

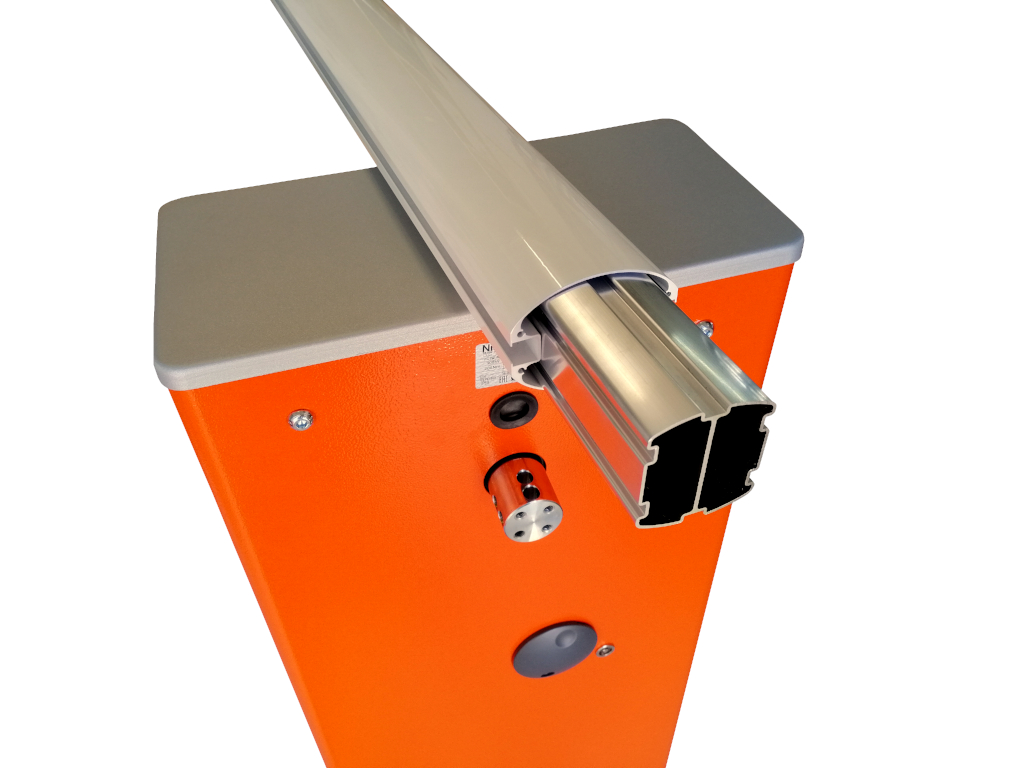

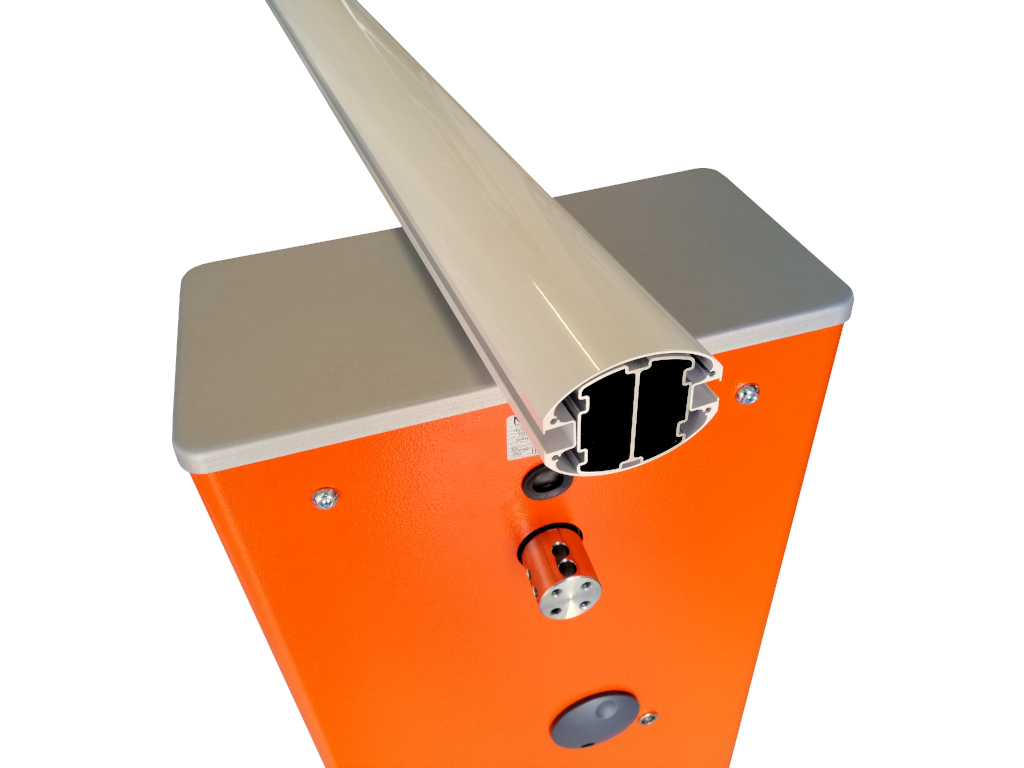

Arm reinforcement insert
The arm reinforcement insert is a short piece of metal shaped like the arm itself. Simply slide it into the arm; it does not need to be fastened.

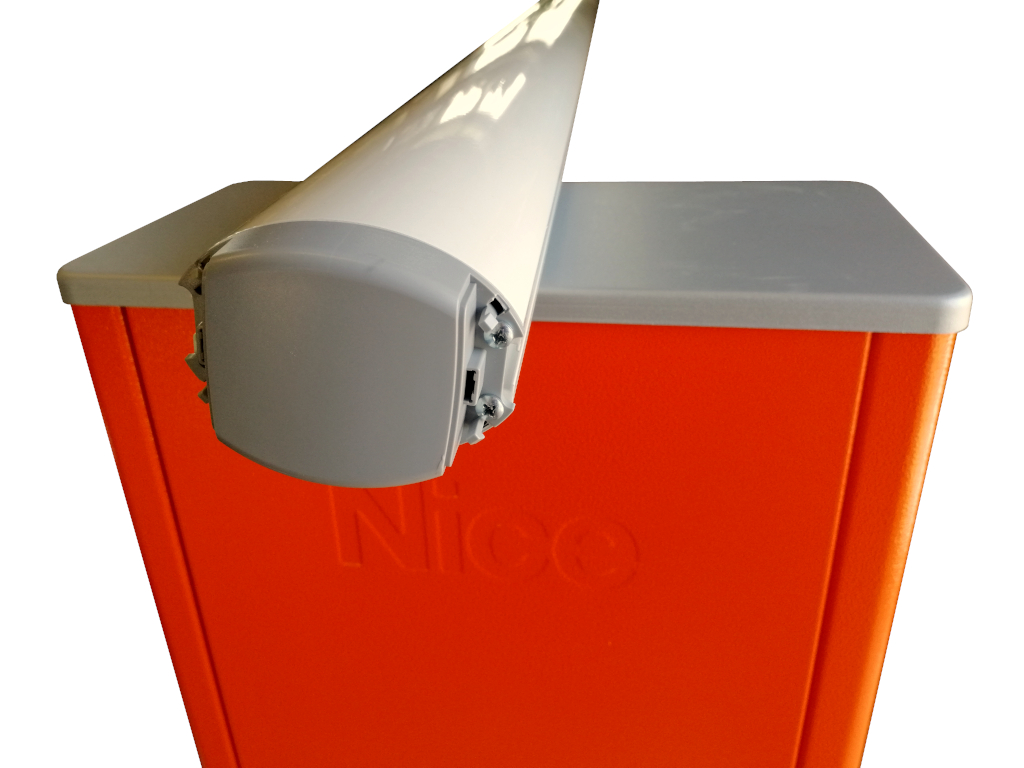

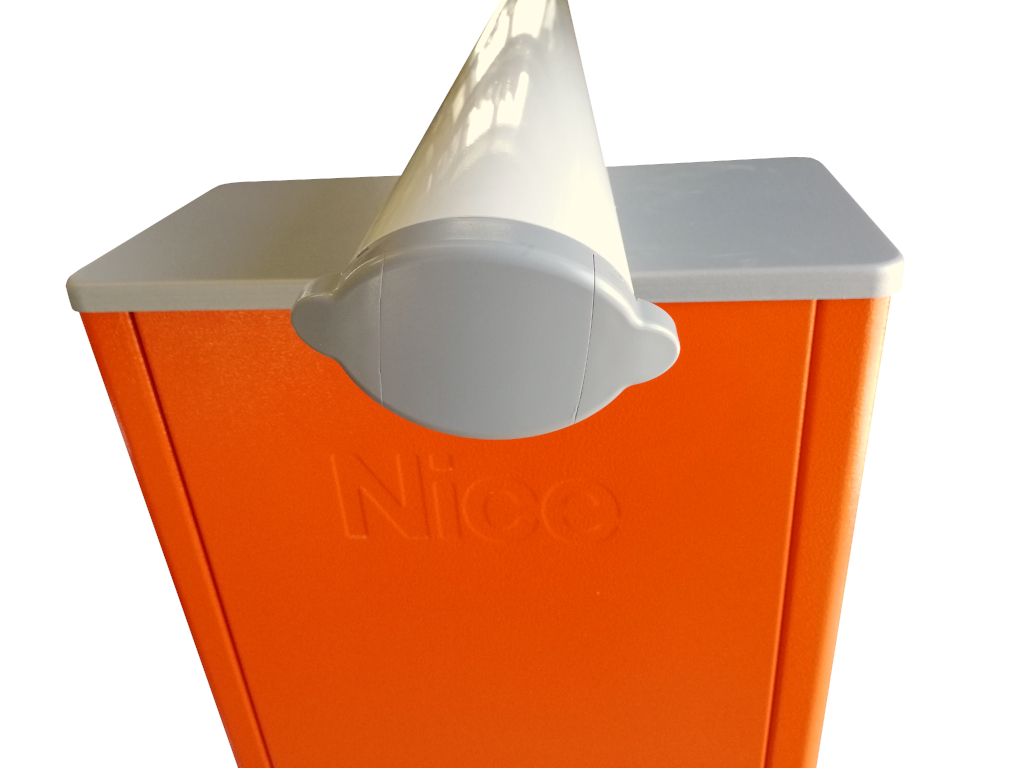

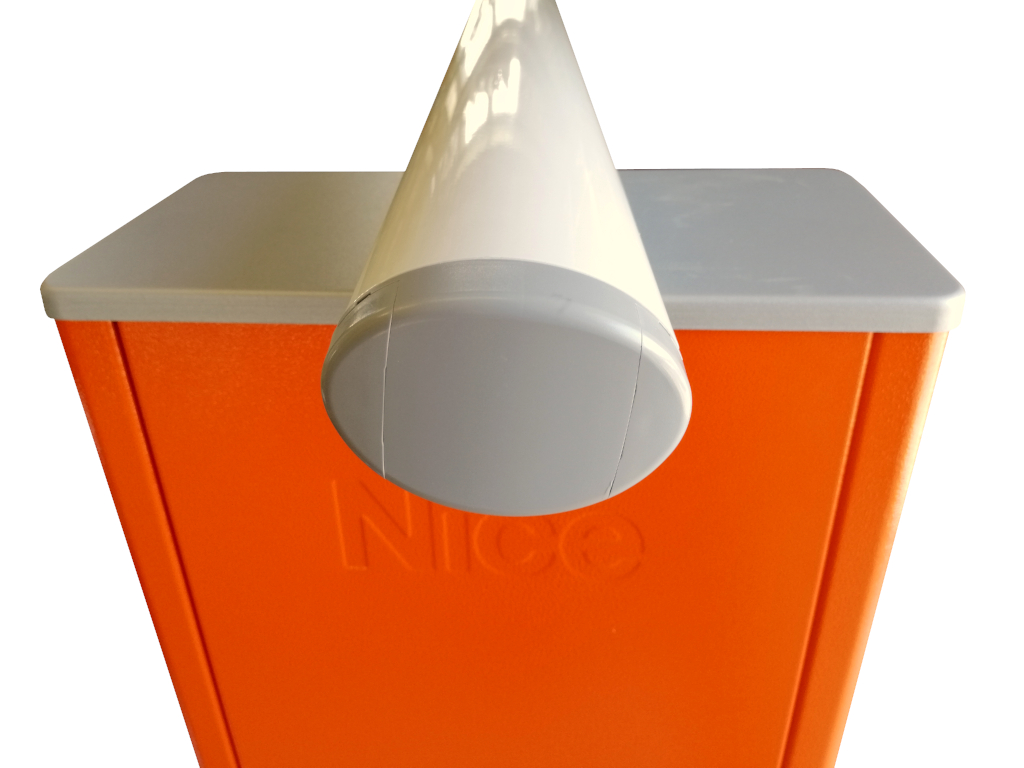

Arm end caps
The arm end caps consist of three parts: one large piece that is screwed on, and two types of end pieces that simply clip into it. If your arm has no lights or protective rubber strip, simply use the rounded end caps. If the arm has been extended with the lights or protective rubber strip mentioned above, use the end caps with the raised section.
Manuals and documents for download
Need help with installation and setup? See our technical guide for NICE WIDE S, M and L barriers – it covers wiring, connections, arm balancing, programming and diagnostics.
