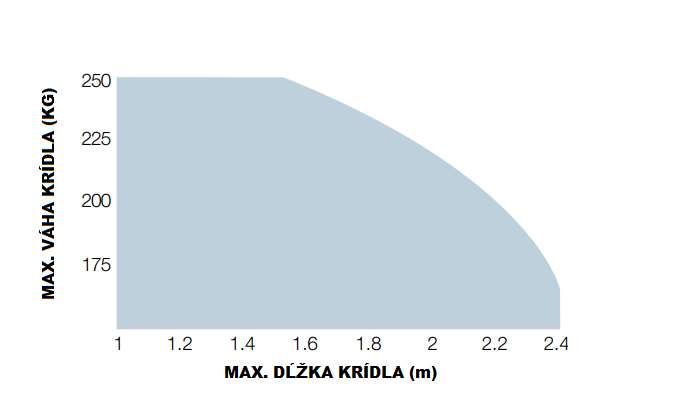

NICE HOPP single-leaf gate opener kit – gate leaf 2.4 m/250 kg
TOP| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€747.92 including VAT
| Weight |
|---|
| 9,30 kg |
Description of NICE HOPP single-leaf gate opener kit – gate leaf 2.4 m/250 kg
Drive kit NICE HOPPKIT is designed for automating swing gates up to a leaf length of 2.4 m / 250kg. The operator is based on 24V. Nice-HOPPKIT operators are a top choice for automating swing gates in both private and industrial settings. Nice-HOPPKIT is reliable and quiet. Download the manual ».
| Set NICE-HOPP-B1 contains: | ||||
|---|---|---|---|---|
|
1 × | NICE HOPP HO7124 - Swing gate operator with control unit | NICE-HOPP-HO7124 | |
|
Articulated arm swing gate operator with built-in POA3R10 control unit
|
Details
|
|||
|
1 × | NICE OXIBD remote control receiver | NICE-OXIBD | |
|
Radio signal receiver for remote controls. Supports two-way communication with selected remote control models. Range of up to 200m with an antenna. |
Details
|
|||
|
1 × | NICE Era One ON2E Remote Control | NICE-ON2E | |
|
Two-button remote control for operating a gate automatically from a distance. You can use it to control two devices or send two different commands to one device. |
Details
|
|||
|
1 × | Installation Manual for the NICE HOPP Gate Operator |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
POA3R10 control unit
2 pcs. release keys
Usage limitations NICE Hopp HO7124/HO7224:

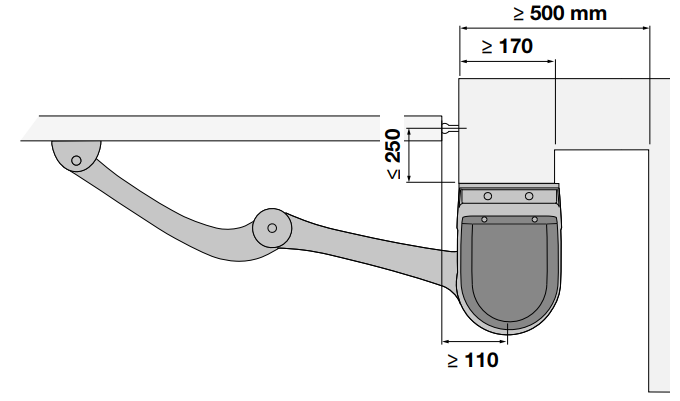

The operator is suitable for situations where the pivot axis is up to 250 mm away.

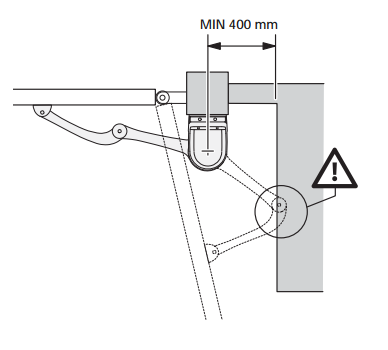

Position the operator at least 400 mm from the obstacle

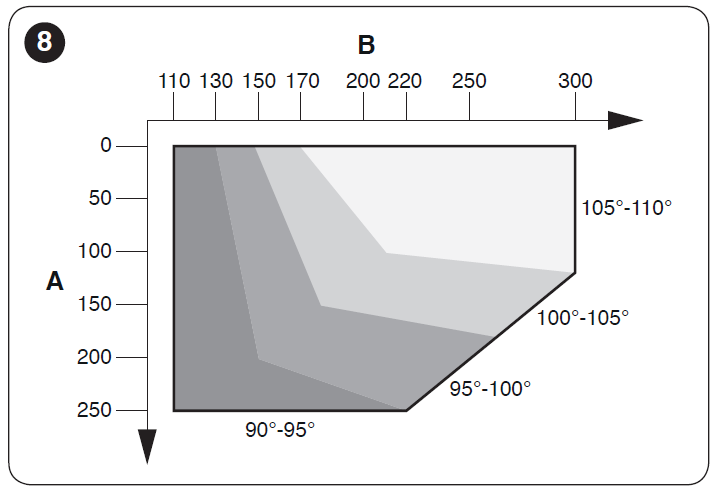

NICE Hopp opening limits HO7124/HO7224 :

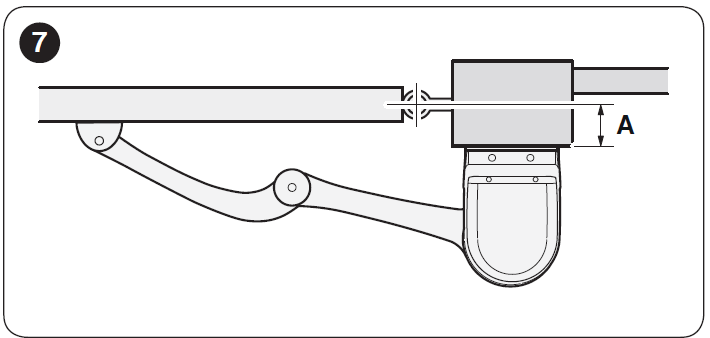

Measure distance "A"
Select the required angle

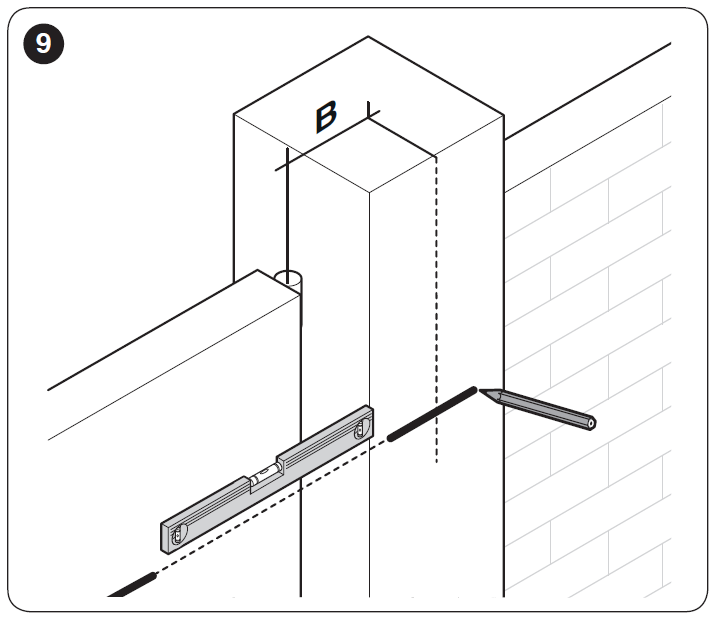

Using distance "A" and the angle, select value "B"
 |
 |

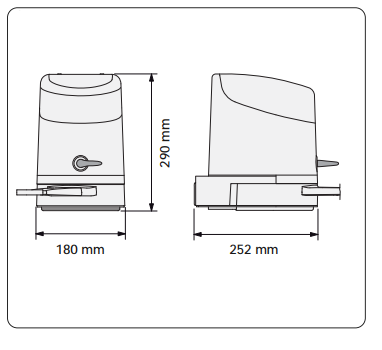

Operator dimensions NICE Hopp HO7124/HO7224:
NICE Hopp HO7124/HO7224 technical specifications:
- Power: 280 W (HO7124), 100 W (HO7224)
- Protection rating: IP54
- Dimensions: 252x180x290
- Power supply: 230 (HO7124) - Vac 50/60hz
- Power supply: 24 (HO7224) - Vdc
360°:
