Kit for making an aluminium fence panel, 2 m x 1.2 m, 80x16 mm slats, anthracite RAL7016, textured finish
NEW| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€273.88 including VAT
| Weight |
|---|
| 16 kg |
Description of Kit for making an aluminium fence panel, 2 m x 1.2 m, 80x16 mm slats, anthracite RAL7016, textured finish
Aluminium fence infill designed for those who want to build a maintenance-free modern fence themselves. It uses a modular aluminium system that allows quick assembly using screws, with no welding required. The set is suitable as infill for a fence, gate, wicket gate or other structures. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: You can also choose the spacing between the slats. A guide groove is marked on the U-profile to show where to screw in the slat. You can choose the layout and spacing of the slats.
The standard spacing between the slats for this panel is 4 cm (for a total height of 1.2 m). Increasing the spacing between the infill slats can also give you a height of 1.5 m. This flexibility lets you adapt the infill profiles to your needs.
Advantages
- Complete set – no need to worry about component compatibility.
- Lightweight and long-lasting.
- A maintenance-free modern fence.
- Versatile – the fence panel is suitable as infill for a gate, fence or other structure.
- You can install it using standard tools.
- Easy to install – the slats are screwed directly into the grooves in the U-profile.
- Design flexibility – the untreated fence can be anodised, left with its raw finish or painted to suit your preferences.
- Saves time and money.
- The set contains all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied unassembled, as separate aluminium profiles and fastening hardware. It is not a pre-assembled fence panel.
| Set PLP-212-01-AS contains: | ||||
|---|---|---|---|---|
|
10 × | Aluminium fence slat 80x16 mm, rectangular, textured anthracite, 2 m | AL-PV2-AS-2 | |
|
Aluminium slat, suitable for use as infill for a fence, gate, or any other space. The slat has a rectangular profile, 80 mm high, 16 mm wide, and 2 metres long. The slat is hollow and has mounting holes on the sides for fixing screws. |
Details
|
|||
|
1 × | Aluminium U-profile, 20.5 mm wide, textured anthracite, 3 m | AL-UP1-AS-3 | |
|
The U-shaped aluminium fixing profile for fence slats is suitable for mounting between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm and an overhang of 23 mm. Recessed grooves on the outside of the profile allow screws to be positioned precisely. Length: 3 metres. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||

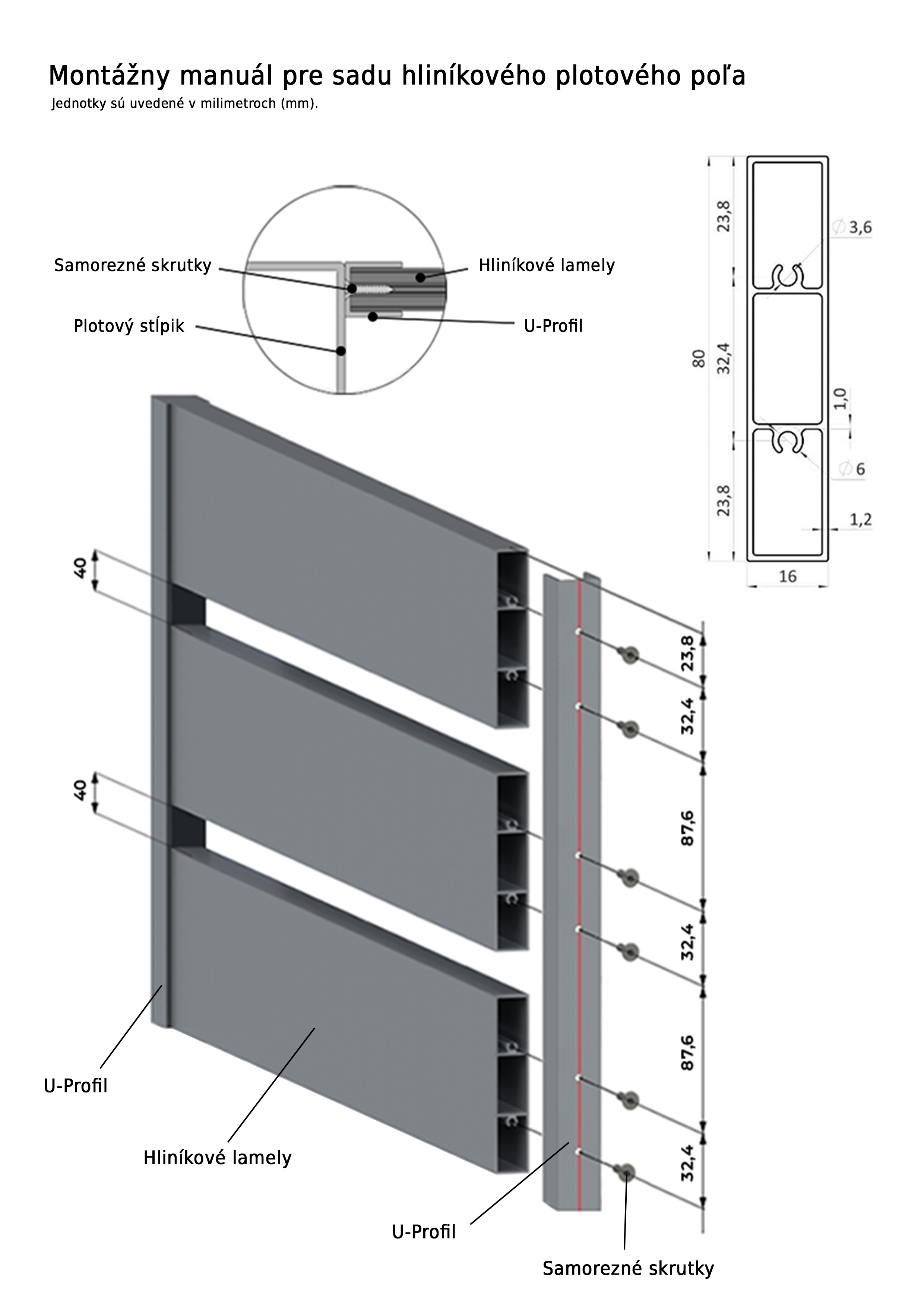

.png)
|
1 × |
Download
|
||
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The mounting U-channel has a groove running along the full length of its side, making it easy to position the slats precisely. The slats also make installation easier, with precisely positioned mounting holes for securely fastening them to the U-channel using self-tapping steel screws.
- Length of the mounting profiles: Cut the U-channel into two pieces, each 120 - 150 cm long.
- Spacing between fence slats: Using the installation instructions (the mounting holes in the slats) as a guide, mark the spacing on the U-channel and drill the screw holes.
- Fastening the aluminium slats: Position the U-channels on the sides and the slats vertically between them, then securely fasten everything together with self-tapping steel screws.
How to install the fence panel
The U-channels are attached to the fence posts or to the profiles in the gate/gate-pedestrian-door frame using screws, preferably with a countersunk head. If the post or gate frame is also made of aluminium, the fence panel can also be installed by welding..
When anchoring the fence panel to a low wall, we recommend using chemical anchors and threaded rods.. Finally, you can use screw caps on the nuts and ends of the threaded rods, or paint them (alternatively, use a metal marker in the desired colour).
Material and finish
The slats and profile are made of aluminium with a Komatix powder-coated finish in anthracite RAL 7016, with a fine texture for a matte appearance. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is intended for DIY installation.
- The mounting U-channel must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
| Material: | aluminium (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | RAL7016 - anthracite, textured |
| Slat dimensions: | 80 x 16 mm |
| Frame dimensions: | 1.2 m (height) × 2 m (width) |
