Kit for making a 2 m x 1.2 m aluminum fence panel, 108x16 mm parallelogram slats, anthracite RAL7016, smooth finish
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€338.57 including VAT
| Weight |
|---|
| 34 kg |
Description of Kit for making a 2 m x 1.2 m aluminum fence panel, 108x16 mm parallelogram slats, anthracite RAL7016, smooth finish
Aluminium fence infill designed for those who want to build a maintenance-free modern fence themselves. It uses a modular aluminium system that allows quick assembly using screws, without the need for welding. The set is suitable as infill for a fence, gate, pedestrian gate, or other structure. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This allows you to adjust the width of the fence panel as needed.
Adjustable height: You can also choose the spacing between the slats. A guide groove for screwing in the slat is marked on the U-profile. You can choose the slat layout and spacing to suit your needs.
This panel is not designed with gaps between the slats as standard. Increasing the spacing between the infill slats allows you to achieve a height of up to 1.5 m. Reducing the spacing creates greater overlap between the slats and reduces the height of the fence panel. This flexibility lets you adapt the infill profiles to your specific requirements.
Advantages
- Complete set – no need to worry about component compatibility.
- Lightweight and long-lasting.
- Maintenance-free modern fence.
- Versatile use – the fence panel is suitable as infill for a gate, fence, or other structure.
- You can install it using standard tools.
- Easy installation – the slats screw directly into the grooves of the U-profile.
- Saves time and money.
- The set contains all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied unassembled, as separate aluminium profiles and fasteners. It is not a ready-assembled fence panel.
| Set SADA-AL-PV5-A-2x1.2 contains: | ||||
|---|---|---|---|---|
|
11 × | Aluminium fence slat 108x16 mm, parallelogram shape, anthracite RAL7016, 2 m | AL-PV5-A-2 | |
|
Aluminium slat that can be used as infill for a fence, gate or any other space. The slat is parallelogram-shaped, with a height of 108 mm and a width of 16 mm. Length: 2 metres. |
Details
|
|||
|
1 × | Aluminium U-shaped mounting profile for slats, 50 mm wide, AL-UP3, anthracite RAL7016, 3 m | AL-UP3-A-3 | |
|
Aluminium U-profile for attaching slats, for filling a gate or fence. Unfinished |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||
|

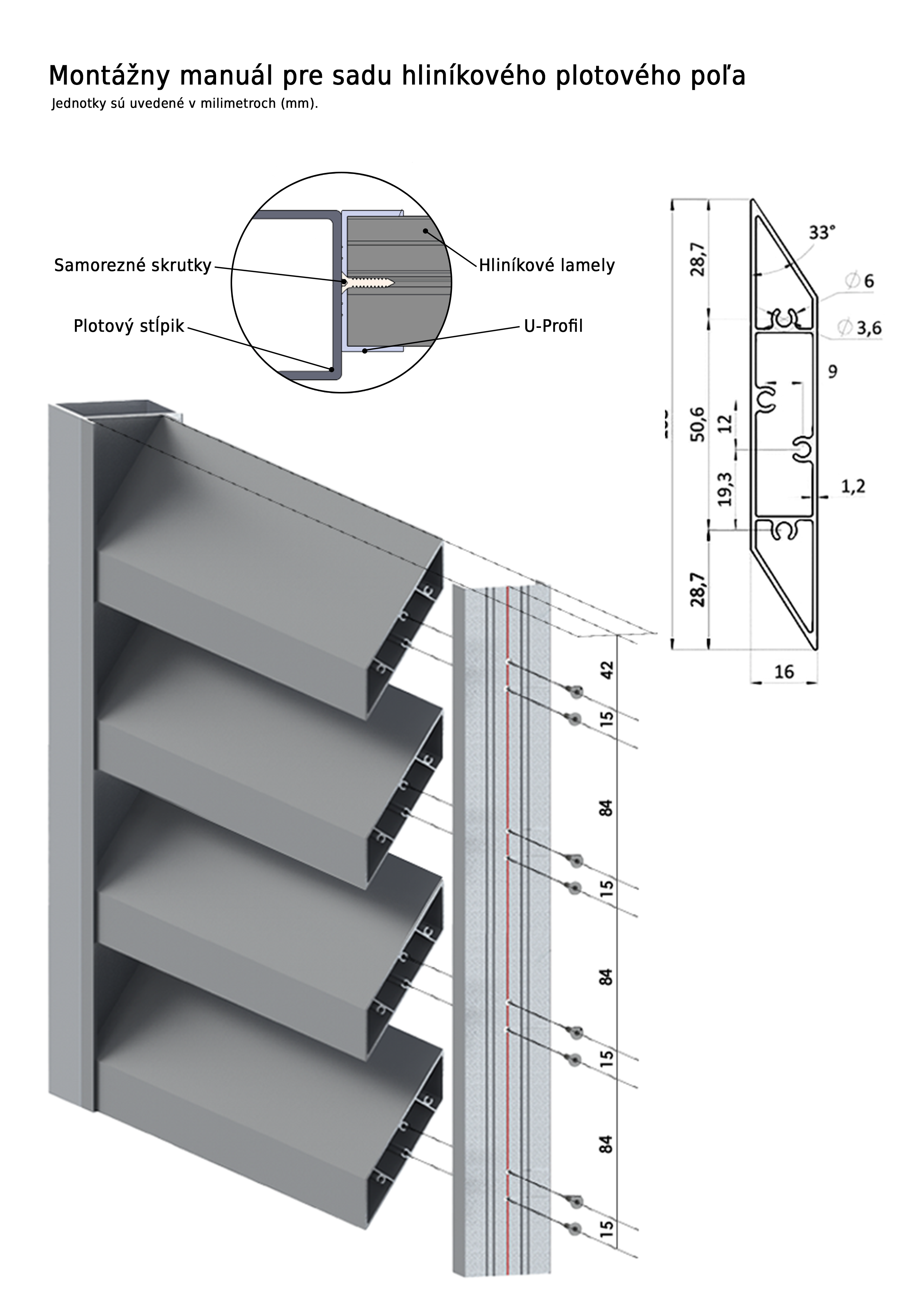

1 × | Manual for the 2x1.2 fence panel kit (108x16 parallelogram slats) |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The mounting U-channel has a groove running along the full length of its side, making it easier to position the slats accurately. The slats themselves also make installation easier, with precisely positioned mounting holes for secure attachment to the U-channel using self-tapping steel screws.
- Length of the mounting profiles: Cut the U-channel into two pieces, each 120 - 150 cm long.
- Screw spacing: Using the installation instructions (and the mounting holes in the slats), mark the spacing on the U-channel and drill holes for the screws.
- Attaching the aluminium slats: Position the U-channels at the sides and the slats perpendicular between them, then securely fasten everything together with self-tapping steel screws.
How to install the fence panel
The U-channels are to the fence posts or to the profiles in the gate/gate frame installed using screws, ideally with countersunk heads. If the post or gate frame is also made of aluminium, the fence panel can also be installed by welding.
When anchoring the fence panel to a low wall we recommend using a chemical anchor and threaded rods. Finally, you can use screw caps on the nuts and ends of the threaded rods, or paint them (or use a metal marker in the desired colour).
Material and finish
The slats and profile are made of durable aluminium with a finish in RAL 7016 anthracite, with a smooth surface.. The finish is applied by powder coating. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is designed for DIY installation.
- The mounting U-channel must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
| Material: | aluminium (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | powder coating, RAL 7016, smooth finish |
| Dimensions: | 1.2 m (height) × 2 m (width) |
