Kit for making a 2 m x 1.2 m aluminium fence panel, 160x16 mm slats, anthracite RAL7016, textured
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€342.95 including VAT
| Weight |
|---|
| 21 kg |
Description of Kit for making a 2 m x 1.2 m aluminium fence panel, 160x16 mm slats, anthracite RAL7016, textured
Aluminium fence infill designed for those who want to build it themselves a a maintenance-free modern fence. It uses a modular aluminium system that allows quick installation using screws, with no welding required. The set is suitable as infill for a fence, gate, pedestrian gate or other structure. Dimensions of slats: 160 x 16 x 2000 mm. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: You can also choose the spacing between the slats. A guide groove is marked on the U-profiles to show where to screw in the slats. You can choose the layout of the slats and the spacing between them.
The standard spacing between the slats for this panel is 2 cm (for a total height of 1.2 m). Increasing the spacing between the infill slats can also give you a height of 1.5 m. This flexibility lets you adapt the infill profiles to your needs.
Benefits
- Complete set – no need to check component compatibility.
- Lightweight and durable.
- Maintenance-free modern fence.
- Versatile – the fence panel can be used as infill for a gate, fence or other structure.
- You can install it using standard tools.
- Easy to install – the slats are screwed directly into the grooves in the U-profiles.
- Saves time and money.
- The set contains all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied flat-packed as separate aluminium profiles and fixings. It is not a ready-assembled fence panel.
| Set SADA-AL-PV8-AS-2x1.2 contains: | ||||
|---|---|---|---|---|
|
6 × | Aluminium fence slat 160x16 mm, textured anthracite, 2 m | AL-PV8-AS-2 | |
|
Aluminium slat for filling a fence, gate, pedestrian gate or other structure. The textured anthracite finish (for a matt effect) is achieved by powder coating. Length: 2 metres. |
Details
|
|||
|
1 × | Aluminium U-profile, 20.5 mm wide, textured anthracite, 3 m | AL-UP1-AS-3 | |
|
The U-shaped aluminium fixing profile for fence slats is suitable for mounting between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm and an overhang of 23 mm. Recessed grooves on the outside of the profile allow screws to be positioned precisely. Length: 3 metres. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||
.png "Manual for the 2x1.2 fence panel kit (rectangular slats 160x16 mm)")
|
1 × | Manual for the 2x1.2 fence panel kit (rectangular slats 160x16 mm) |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The mounting U-channel has a groove running along the entire length of its side, making it easier to position the slats accurately. The slats also make installation easier, with precisely positioned mounting holes for securely fastening them to the U-channel using self-tapping steel screws.
- Length of the mounting profiles: Cut the U-channel into two pieces, each 120 - 150 cm long.
- Gaps between the fence slats: According to the installation instructions (the mounting holes in the slats), mark out the spacing on the U-channel and drill holes for the screws.
- Fastening the aluminum slats: Position the U-channels along the sides and the slats perpendicular between them, then fasten everything securely together with self-tapping steel screws.
How to install the fence panel
The U-channels are to fence posts or to profiles in the gate or pedestrian gate frame, and are installed using screws, preferably with a countersunk head. If the post or gate frame is also made of aluminum, the fence panel can also be installed by welding.
When anchoring the fence panel to a low wall we recommend using chemical anchors and threaded rods. Finally, you can use screw caps on the nuts and ends of the threaded rods, or paint them over (for example, with a metal marker in the desired color).

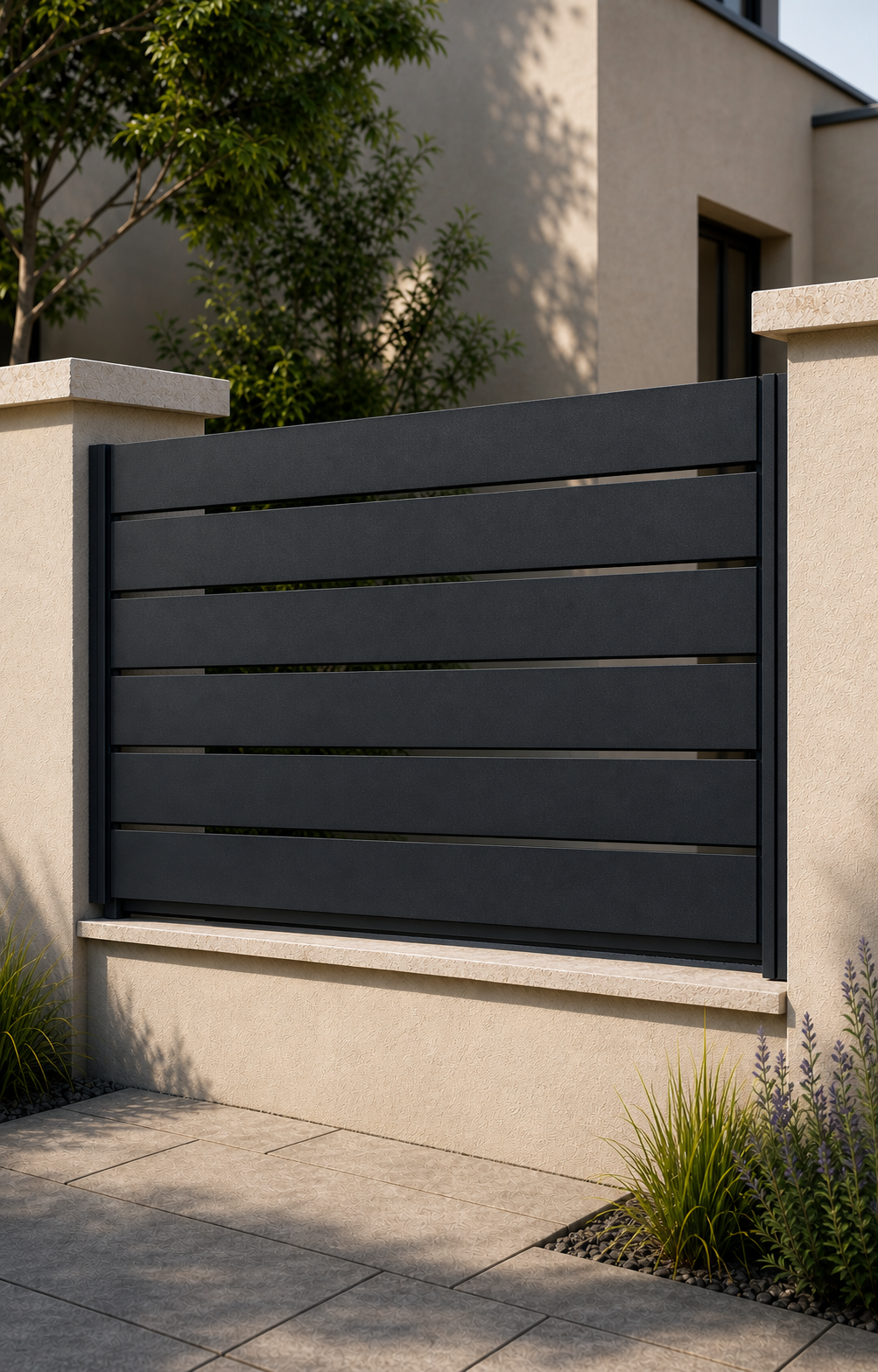

Fence panel illustration
Material and finish
The slats and profile are made of aluminum with a Komatix powder-coated finish in anthracite RAL 7016, with a fine texture for a matte appearance. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is designed for DIY installation.
- The mounting U-channel must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
| Material: | aluminum (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | RAL 7016 anthracite powder coating, textured (matte) |
| Structure dimensions: | 1.2 m (height) × 2 m (width) |
| Dimensions of the slats: | 160 × 16 × 2000 mm |
