Kit for making a 2 m x 1.2 m aluminium fence panel, 160x16 mm slats, anthracite RAL7016, smooth finish
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€343.58 including VAT
| Weight |
|---|
| 21 kg |
Description of Kit for making a 2 m x 1.2 m aluminium fence panel, 160x16 mm slats, anthracite RAL7016, smooth finish
Aluminum fence infill designed for those who want to build it themselves the fence a maintenance-free modern fence. It uses a modular aluminum system that allows quick installation with screws, without the need for welding. The set is suitable as infill for a fence, gate, pedestrian gate, or other structures. Dimensions of slats: 160 x 16 x 2000 mm. Fence panel dimensions: 2 x 1.2 metres. >>Download the installation manual>>.
Adjustable width: The profiles can be easily cut to size. This lets you adjust the width of the fence panel to suit your needs.
Adjustable height: You can also choose the spacing between the slats. The U-profiles have a marked guide groove for screwing in the slats. You can decide on the arrangement of the slats and the spacing between them.
This panel is designed for a standard slat spacing of 2 cm (for a total height of 1.2 m). Increasing the spacing between the infill slats can also give you a height of 1.5 m. This adjustability lets you adapt the infill profiles to your specific needs.
Benefits
- Complete set – no need to worry about component compatibility.
- Lightweight and long-lasting.
- Maintenance-free modern fence.
- Versatile – the fence panel can be used as infill for a gate, fence, or other structure.
- You can install it with standard tools.
- Easy to install – the slats are screwed directly into the grooves of the U-profiles.
- Saves time and money.
- The set contains all the components needed for one fence panel measuring 1.2 m (height) × 2 m (width).
Important: This set is supplied disassembled, as separate aluminum profiles and fasteners. It is not a pre-assembled fence panel.
| Set SADA-AL-PV8-A-2x1.2 contains: | ||||
|---|---|---|---|---|
|
6 × | Aluminium fence slat, 160 x 16 mm, anthracite, smooth finish, 2 metres | AL-PV8-A-2 | |
|
Aluminium slat for filling a fence, gate, pedestrian gate, or other structure. The smooth anthracite-coloured finish is applied using powder coating. |
Details
|
|||
|
1 × | Aluminium U-profile, 20.5 mm wide, anthracite with a smooth finish, 3 m | AL-UP1-A-3 | |
|
The aluminium U-shaped fixing profile for fence slats is suitable for installation between posts on a gate, fence or other structure, or between low walls. The profile has an external width of 20.5 mm and an overhang of 23 mm. The outside of the profile has recessed grooves for precise screw positioning. |
Details
|
|||
|
1 × | DIN 7982 screw, A2, 3.5x19 mm – pack of 50 pcs | S-7982-1 | |
|
Stainless steel self-tapping screw (E14S3.5, DIN 7982) for fastening aluminium slats to mounting profiles. It is compatible with the infill profile, U-profile and UT profile. Each pack contains 50 pieces. |
Details
|
|||
.png "Manual for the fence panel kit 2x1.2 (rectangular slats 160x16 mm)")
|
1 × | Manual for the fence panel kit 2x1.2 (rectangular slats 160x16 mm) |
Download
|
|
|
Installation manual with illustrated wiring diagrams and instructions for programming and pairing remote controls. |
||||
Installation
You can install it yourself with our kit. The U-shaped mounting profile has a groove running along the entire side of the profile, making it easy to position the slats accurately. The slats themselves also make installation easier, with precisely positioned mounting holes for securely fastening them to the U-profile using self-tapping steel screws.
- Length of the mounting profiles: Cut the U-profile into two pieces, each 120 - 150 cm long.
- Gaps between the fence slats: Based on the installation instructions (the mounting holes in the slats), mark out the spacing on the U-profile and drill holes for the screws.
- Fastening the aluminium slats: Position the U-profiles along the sides, place the slats perpendicular between them, and securely fasten everything together with self-tapping steel screws.
How to install the fence panel
The U-profiles are to the fence posts or to profiles in the gate/gate frame installed using screws, ideally with a countersunk head. If the post or gate structure is also made of aluminium, the fence panel can also be installed by welding..
When anchoring the fence panel to a low wall we recommend using a chemical anchor and threaded rods. Finally, you can use screw caps on the nuts and ends of the threaded rods, or paint them (alternatively, use a metal marker in the desired colour).

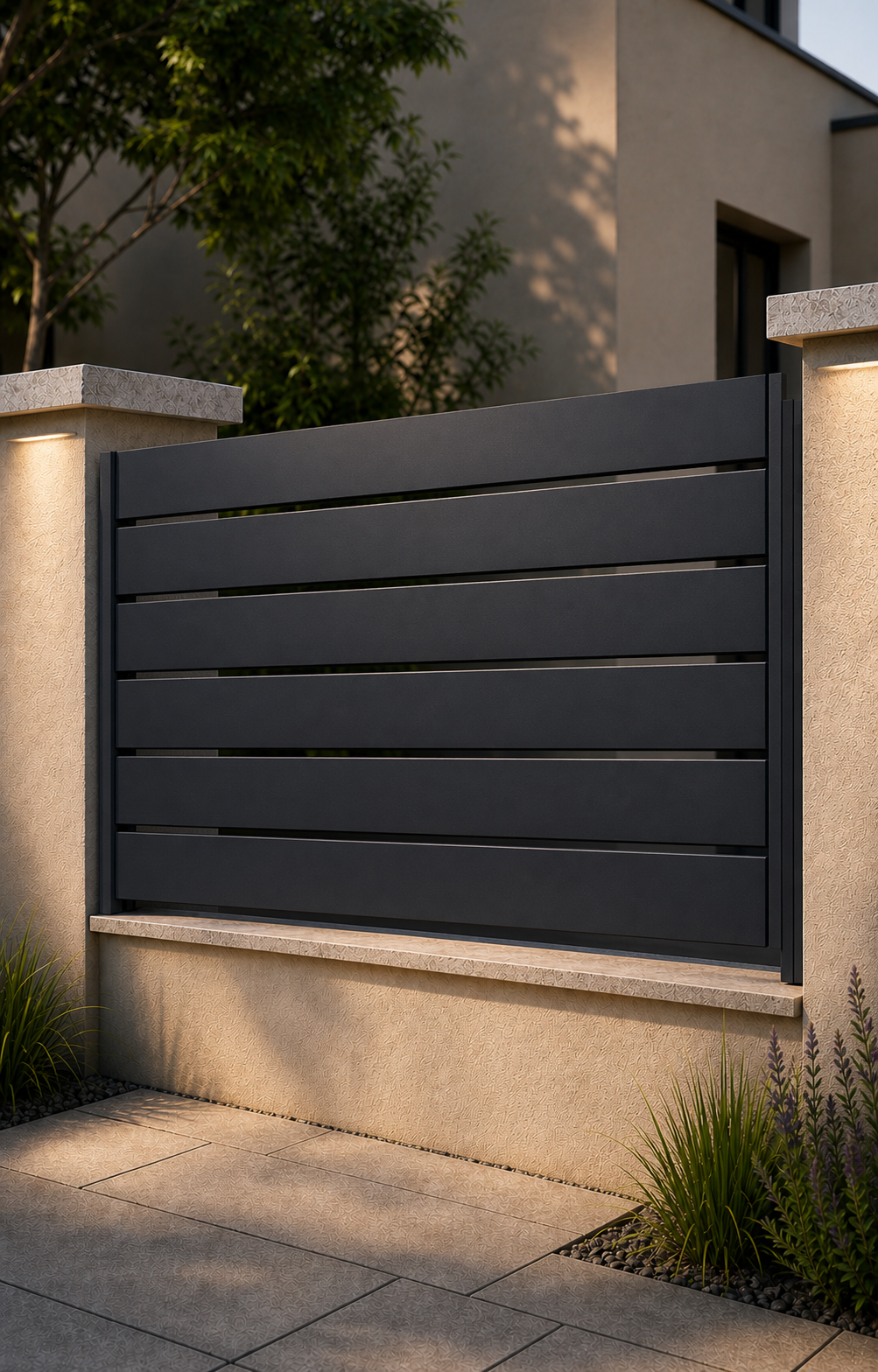

Fence panel visualisation
Material and Finish
The slats and profile are made of aluminium with a Komaxit powder-coated finish in anthracite RAL 7016, with a fine texture for a matte appearance. The self-tapping screws are made of stainless steel. All components of the fence panel are corrosion-resistant.
Important information before purchase
- This product is intended for DIY installation.
- The U-shaped mounting profile must be cut into two pieces, each 120 - 150 cm long.
- Structural profiles (posts, gate frame) are not included.
| Material: | aluminium (slats, profiles), stainless steel (screws) |
|---|---|
| Finish: | RAL 7016 anthracite powder coating, textured (matte) |
| Structure dimensions: | 1.2 m (height) × 2 m (width) |
| Dimensions of the slats: | 160 × 16 × 2000 mm |
