Hardware kit for a cantilever gate with a passage width of up to 12.5 m, C-profile 140x140x6mm, steel, 9-wheel carriages
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€2,834.24 including VAT
| Weight |
|---|
| 515 kg |
Description of Hardware kit for a cantilever gate with a passage width of up to 12.5 m, C-profile 140x140x6mm, steel, 9-wheel carriages
Note: The SET is more cost-effective than the individual components purchased separately. We can adjust the contents of the SET to your specifications and deduct an appropriate discount. If you have a specific request or would like advice, contact us.
| The set includes: | SADAG-9FE | ||
|---|---|---|---|
 |
2 × | Trolley with nine bearing rollers | C9999-3G |
|
Trolley made of galvanized steel with nine bearing rollers. |
Detail  |
||
 |
3×6 m | C-profile, unfinished | CP-140-6 |
|
A heavy-wall C-shaped guide profile welded to the underside of the gate, allowing it to run on trolleys anchored in a concrete foundation. C-profiles can be joined by welding. |
Detail |
||
 |
2 × | Lower guide roller | SN-1-140 |
|
The guide roller is fitted to the beginning of the C-profile and runs into the lower catch mounted on the stop post, relieving the gate when it is closed. |
Detail |
||
 |
2 × | Lower catch | DK-1-140 |
|
A receiving pocket mounted at the bottom of the stop post. It relieves the compressive and tensile forces acting on the trolleys when the gate is closed. |
Detail |
||

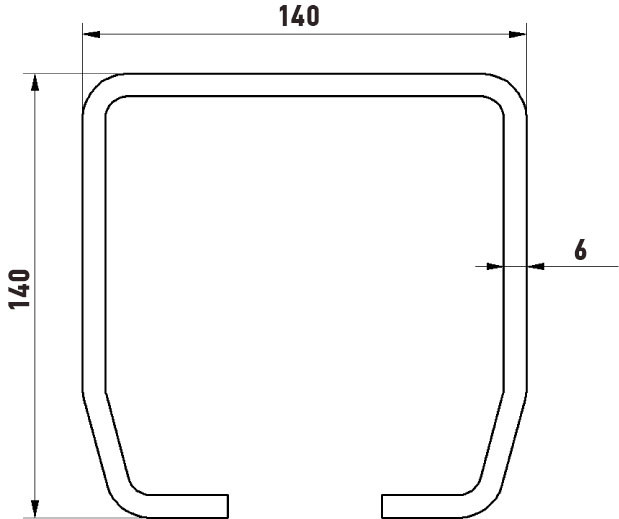

PROFILE DIMENSIONS:
