CAME RE432M (001RE432M) – universal two-channel external receiver
| Product availability: | In stock | We normally dispatch goods within 24 hours. |
|---|
in stock
€87.34 including VAT
| Weight |
|---|
| 0,15 kg |
Description of CAME RE432M (001RE432M) – universal two-channel external receiver
Two-channel receiver compatible with CAME transmitters series TOP, TMA, TWIN (TW2EE/TW4EE only) and ATOMO. This receiver allows you to use a CAME transmitter to control an automated device from another brand, such as NICE operators in our range. This is especially useful if you already own a CAME operator and transmitters, and would like to install an operator from another brand and control it using CAME transmitters. Another option is to purchase an external NICE receiver, such as NICE SMX2R, or NICE FLOX2R, if you primarily want to use NICE transmitters.
The device has memory for storing 50 codes.
CAME RE432M receiver diagram (001RE432M)

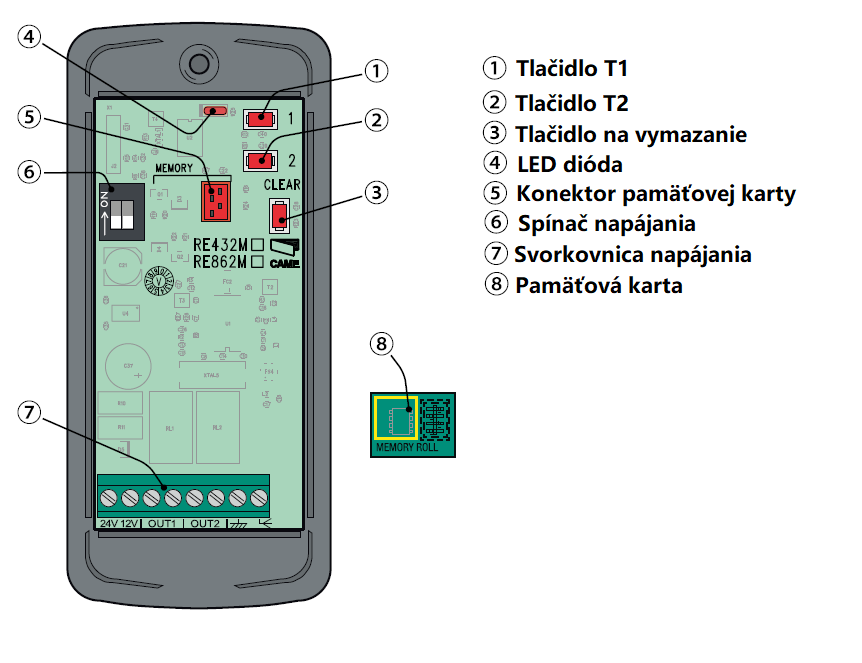

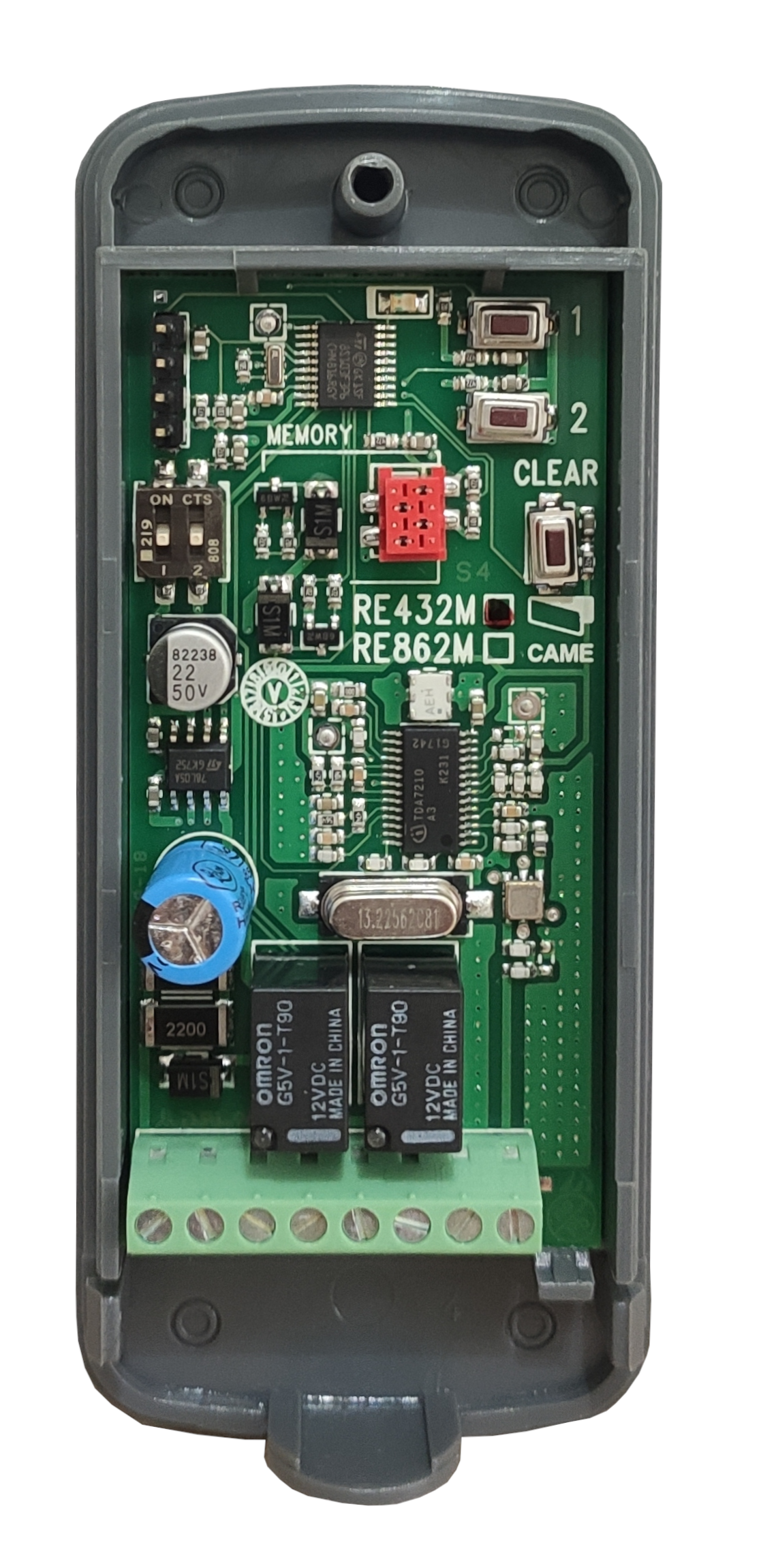

The CAME RE432M receiver has a terminal block for the power supply, outputs for two potential-free relays, and an antenna input. It also has T1 buttons and T2, L1 LED, switches for selecting the power supply mode and the functionality of RELAY 2 and a memory card.

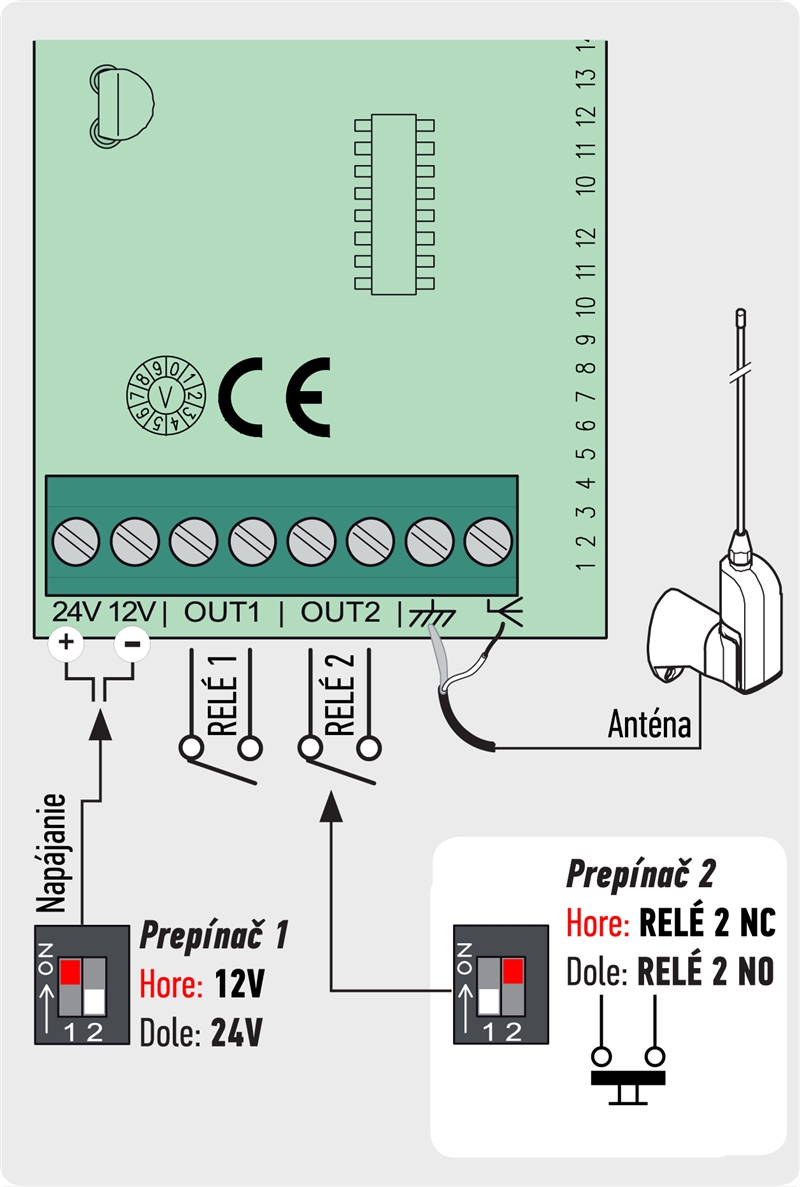

CAME RE432M receiver wiring diagram
|
The device comes with a terminal block for connecting the power supply (12V, or 24V DC, or AC). ). The power supply mode is selected using Switch 1, which has two functions: |
|
||||
|
Both relays are normally NO (normally open), and the circuit closes when a command is given. If you need NC (normally closed), you can set Switch 2 to the up position, so that RELAY 2 will be NC (while RELAY 1 remains NO). |
|
See the complete wiring diagram:
Pairing transmitters with the CAME RE432M receiver
After connecting the power supply proceed as follows:

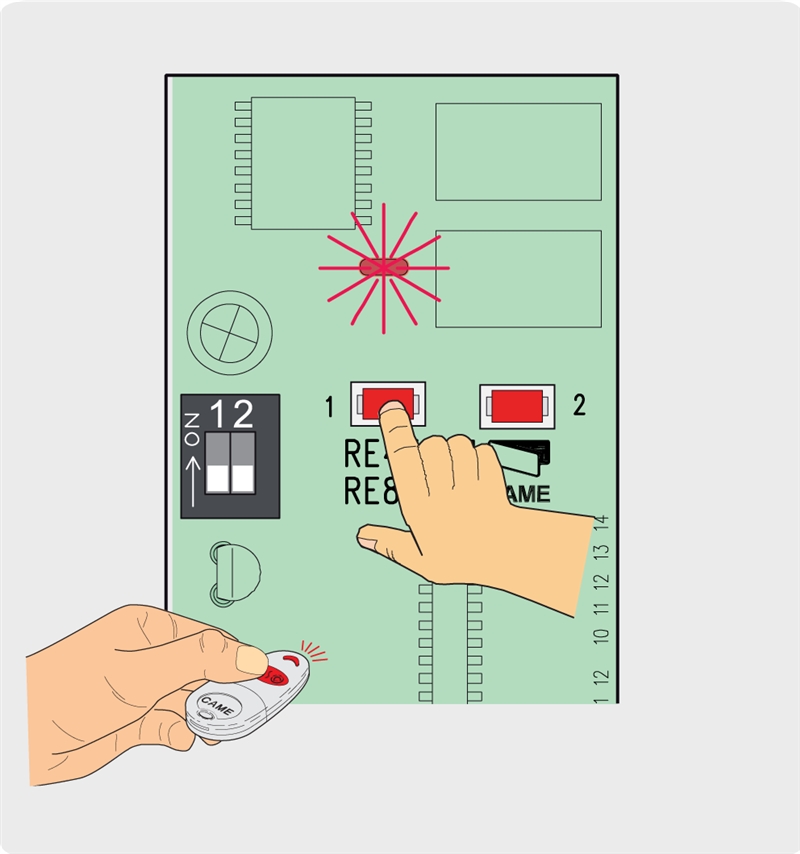

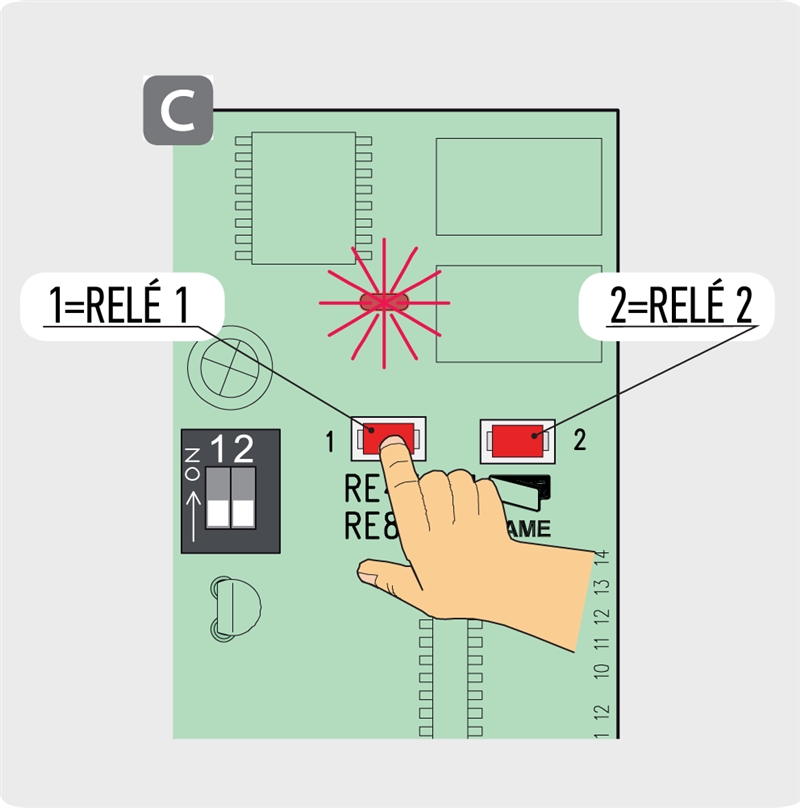

| 1. Hold down the button on the receiver for the RELAY you want to program; the L1 LED will start flashing. | 2. Hold down the button on the transmitteruntil the L1 LED lights up, then release both buttons. |
 |
 |
| 3. Done. | |
CAME RE432M receiver photo gallery
|

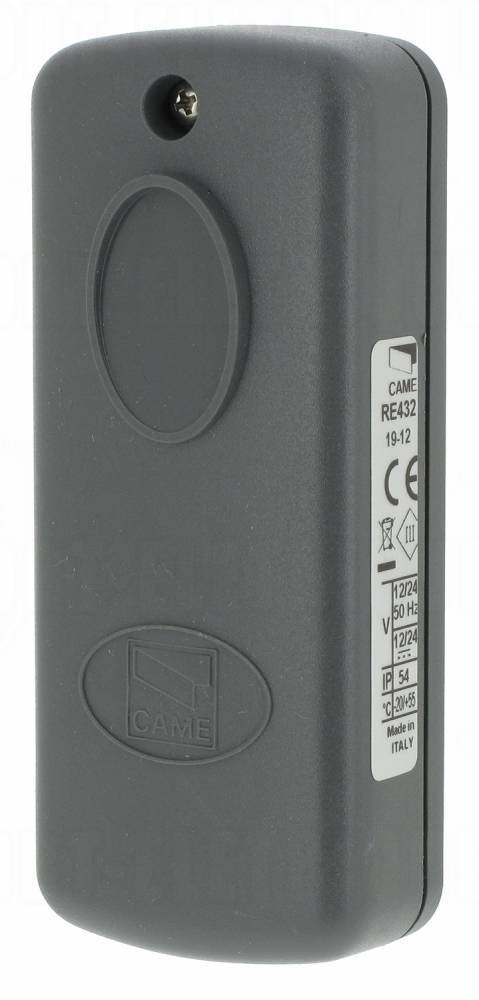

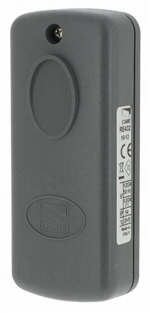

Closed, front view |

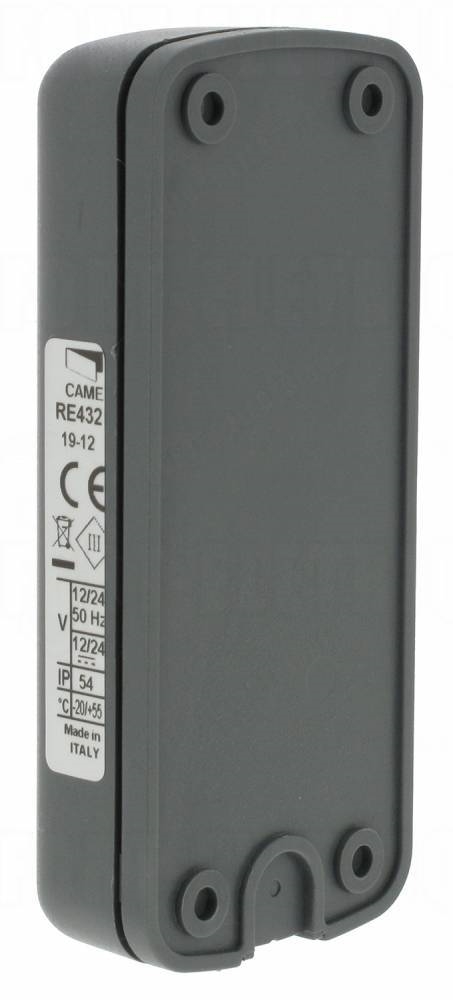

Closed, rear view |

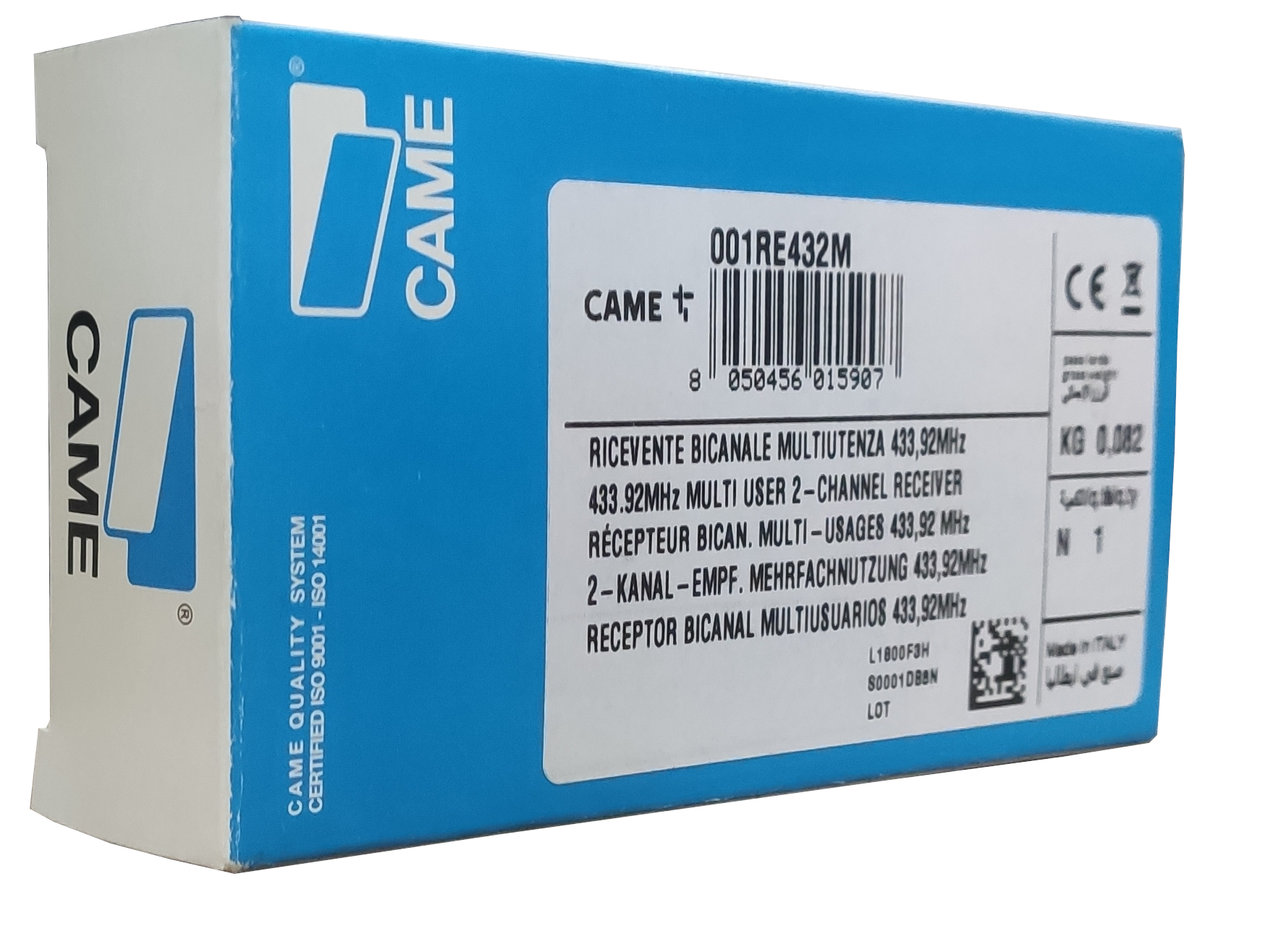

Packaging |
|

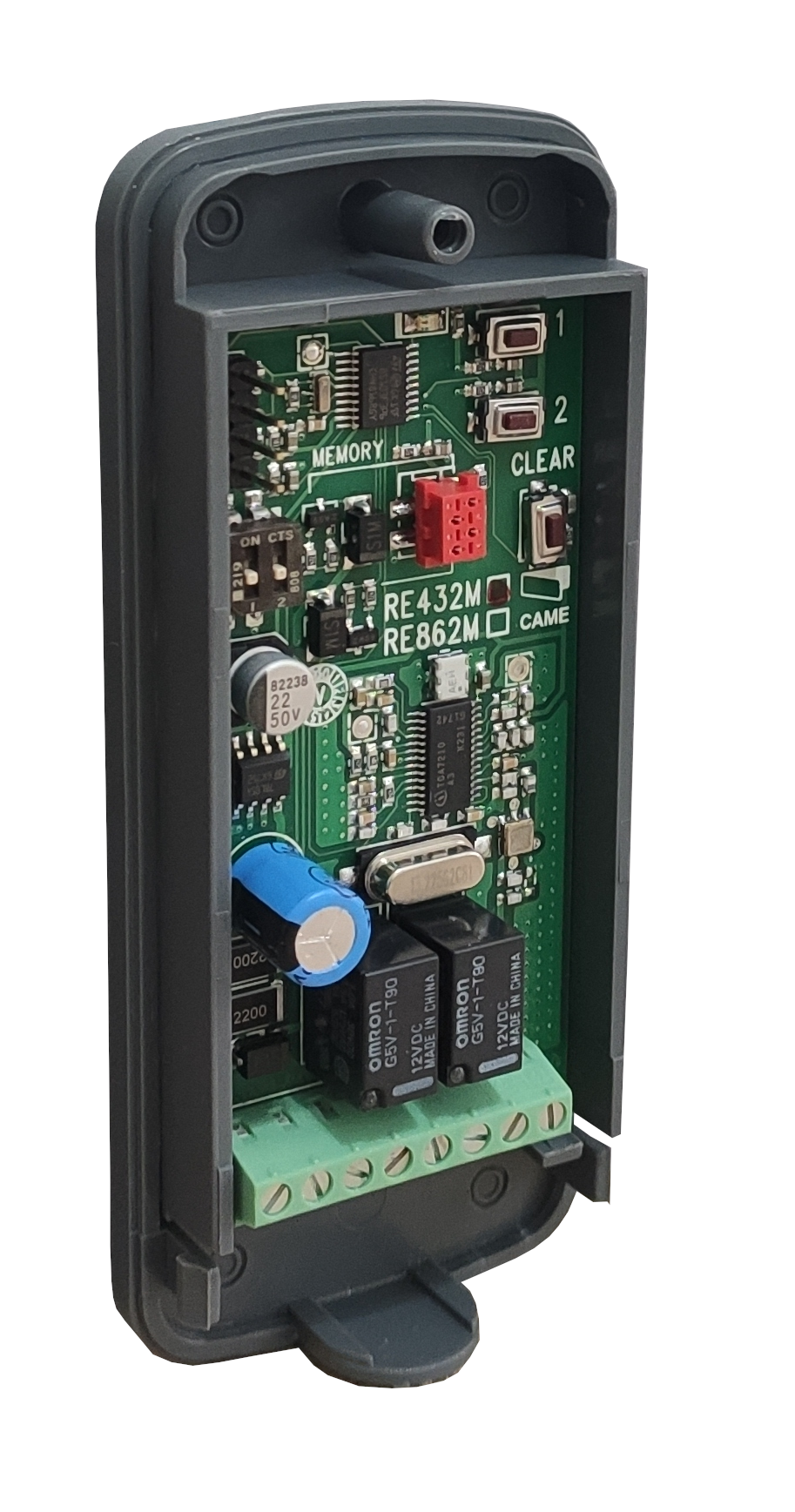

Open, left view |
Open, front view |

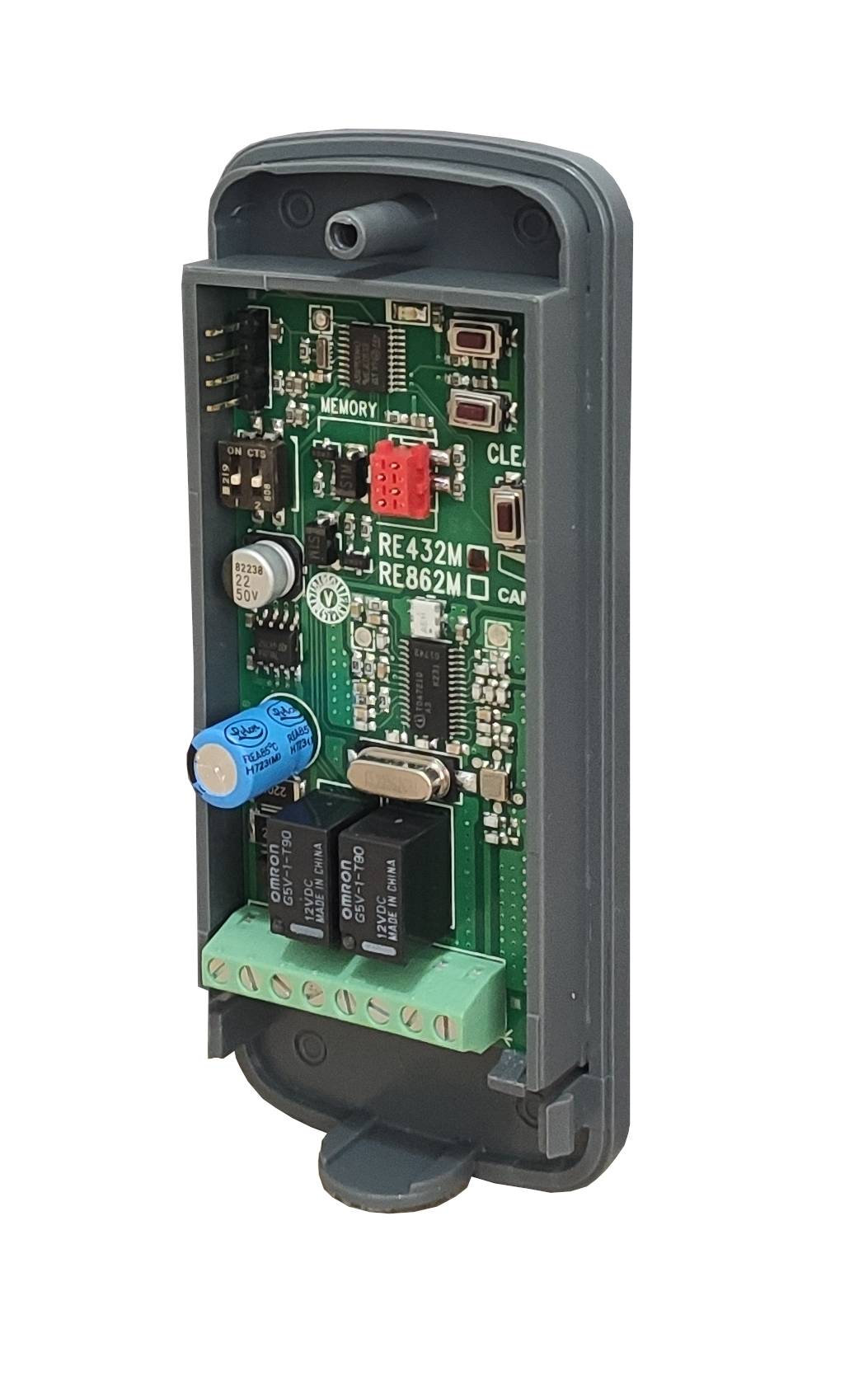

Right-hand opening |
Technical specifications of the CAME RE432M receiver
| Coding | Fixed code |
|---|---|
| Compatible remote controls |
- TOP - Atomo |
| Power supply | - 12V AC/DC - 24V AC/DC |
| Current consumption (minimum) | 39 mA |
| Frequency | 433,92 MHz |
| Number of relays | 2 relays |
| Normally open relay contact | max. 1A and 24Vdc |
| Operating temperature | -20 to +55 °C |
| Protection rating | IP54 |
| Dimensions | 46×26×108 mm (w×d×h) |
| Weight | 82 g |
